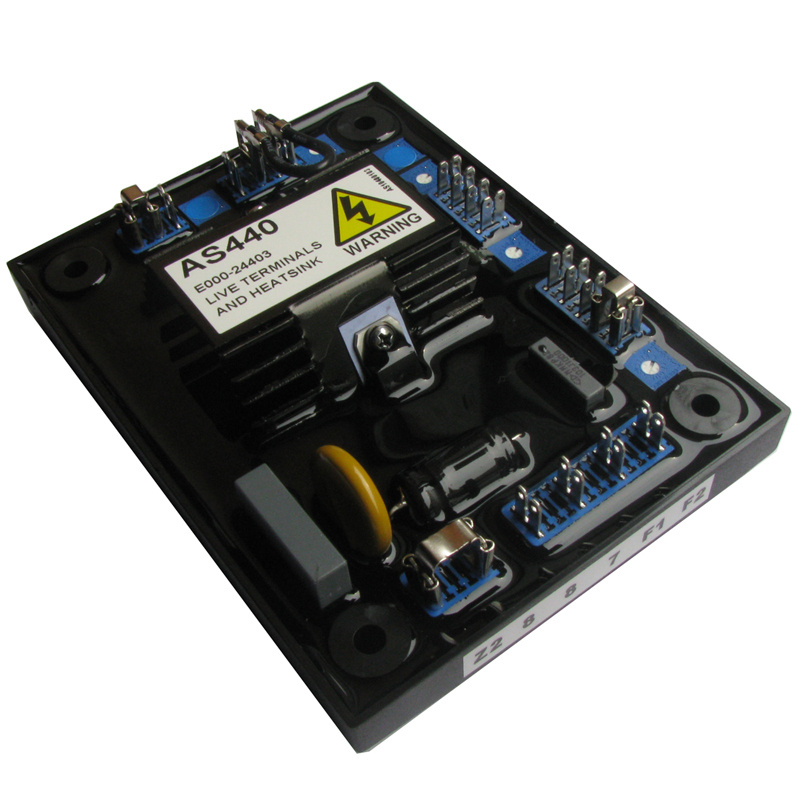

This generator AVR is equal to stanford
TECHNICAL SPECIFICATIONS
SENSING INPUT
Voltage 100-130Vac, 170-264Vac
Frequency 50-60Hz nominal
Phase 2
POWER INPUT
Voltage 100-264Vac 1 Phase
Frequency 50-60Hz
OUTPUT
Voltage Max. 82Vdc @ 200Vac Input
Current Continuous 4A
Transient 7.5A for 10secs.
Field Resistance Min. 15 ohm (Min. 10 ohm when input voltage is less than 175Vac)
REGULATION
± 1.0% (with 4% engine governing)
UNDER FREQUENCY PROTECTION
Set point 94-98%Hz
EXTERNAL VOLTAGE ADJUSTMENT
± 10% with 1K ohm 1 watt trimmer
Increasing resistance lowers voltage
|
CONTROL |
FUNCTION |
DIRECTION |
|
VOLTS |
TOADJUSTGENERATOR OUTPUTVOLTAGE |
CLOCKWISE INCREASES OUTPUTVOLTAGE |
|
STABILITY |
TO PREVENTVOLTAGE HUNTING |
CLOCKWISE INCREASESTHE DAMPING EFFECT |
|
UFRO |
TO SETTHE UFRO KNEE POINT |
CLOCKWISE REDUCESTHE KNEE POINTFREQUENCY |
|
DROOP |
TO SETTHE GENERATOR DROOPTO 5%ATFULLLOAD 0PF |
CLOCKWISE INCREASESTHE DROOP |
|
TRIM |
TO MATCHAVR INPUTTOACCESSORYOUTPUT |
ALLOWSTHEACCESSORYMORE CONTROLOVERAVR |
|
EXCTRIP |
TO SETOVER EXCITATIONTRIPCUTOFF LEVEL |
CLOCKWISE INCREASESTHE CUTOFF LEVEL |
