HUILIN Nitrogen Generator
Toward the request of ≥99.99% and great N2 use,clients could adopt the way of producing general N2 frist and then adding the puritying equipment,which are able to reduce the costs of onetime equipment investments and running.
Generator two ways of Nitrogen Puritying by hydrogenation and by carbon
99.5% general N2 generator +nitrogen puritying equipment by hydrogenation----99.9995%N2

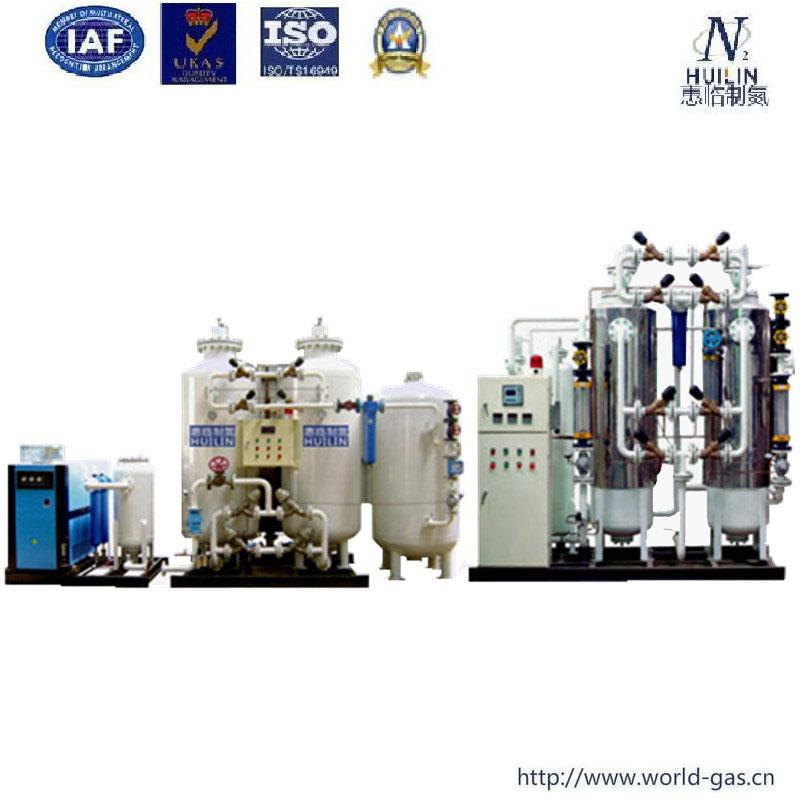

99.5% general N2 generator +nitrogen puritying equipment by carbon----99.9995%N2(ps. This way is fit for the users of aluminum making which production without H2)
HUILIN nitrogen generator has 4 advantages in PSA nitorgen generator Field, manufacturing energy-saving nitrogen generator.
As follow:
1. High purity.
The 99.9995% nitrogen gas is produced in one-time procedure without purification Devices.
HUILIN nitrogen generator produces the high-purity N2 preponderate over 99.9995% In one-time, which depends on the professional carbon molecular sieve and Special high-purity technics flow.
2. Excellent energy-saving
Unique distribution of gas flow, advanced energy-saving technology, excellent Molecular sieve make HUILIN nitrogen generator energy-saving achieve 10~20% than Other do.
3. Steady-going, long life-span
Unique clamping cylinder technology effectively extending the life of molecular Sieve.
4. High degree of automation
The automatic control technology could switch machines with one key, and have Remote and centralized operation with nobody control.
Nitrogen Puritying Equipment By Hydrogenation
Nitrogen Puritying Equipment By Carbon
Model Type
| Purity (%)
| Production Flow (Nm3/h)
| Pressure (MPa)
| Dew Point
|
WG-N2STD 97
| 97%
| 5-3000
| (Input Pressure
-0.2)
| ≤-45 o C
|
WG-N2STD 98
| 98%
| 4-2500
|
WG-N2STD 99
| 99%
| 3-2100
|
WG-N2STD 295
| 99.5%
| 2-1800
|
WG-N2STD 39
| 99.9%
| 1.5-1300
|
WG-N2STD 49
| 99.99%
| 1-800
|
WG-N2STD 495
| 99.995%
| 1-750
|
WG-N2STD 59
| 99.999%
| 0.5-500
|
WG-N2STD 595
| 99.9995%
| 0.5-400
|
Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.
In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.
Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
