Super silent optional;
Welding optional;
Air cooled;
Stable out put.

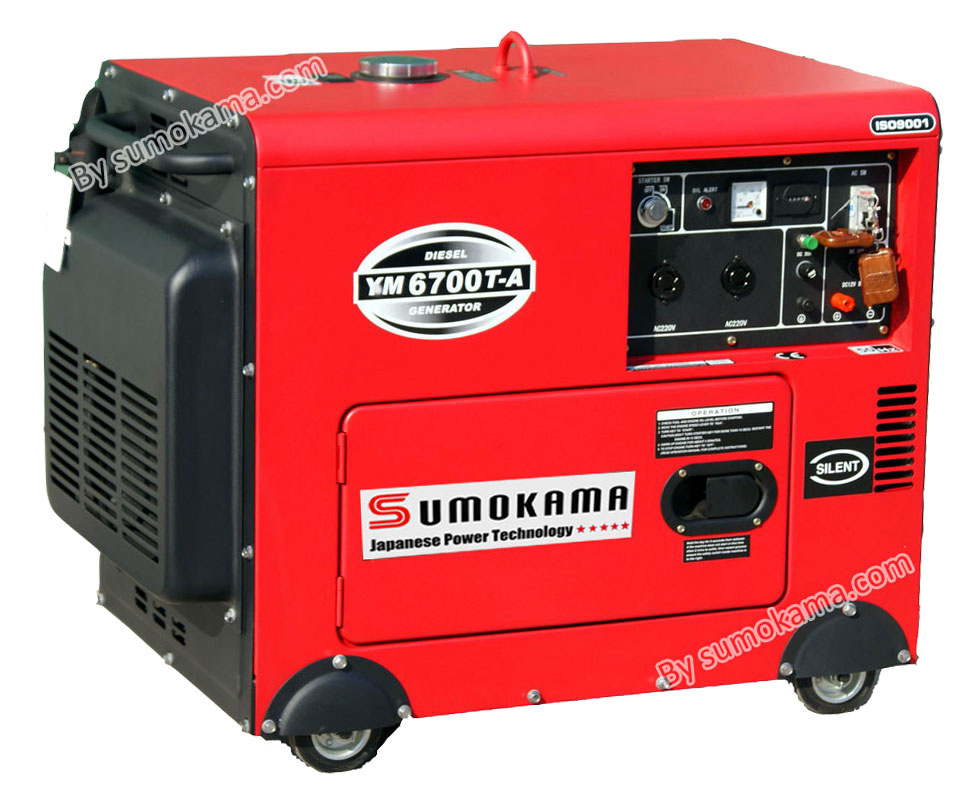

Model KDE6700T-A
Frequency (Hz) 50 60
Rated Output (kVA) 4.5 5
Maximum Output (kVA) 5 5.5
Rated Voltage (V) 115/230 120/240
Rated current (A) 39.1/19.6 41.7/20.8
Rated rotation speed (rpm) 3000 3600
Phase No. Single phase
Power Factor COS=1
Excitation Mode Self-excitation, 2 pole and constant voltage (AVR)
DC Output 12V. /8.3A, Connection Pole Output
Structure Type Soundproof
Noise Level (7m) dB(A) 72
Engine Model KM186FA
Engine type Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel
Bore × Stroke(mm) 86× 72
Displacement (L) 0.418
Rated Power KW 5.7/3000 6.3/3600
Fuel comsumption Rate(g. Kw/h) 275.1 281.5
Compression Ratio 19: 1
Lubrication System Pressure Splashed
Starting System Electric Start with 30Ah MF battery
Fuel Type 0#(summer), -10#(winter), Diesel
Lube Oil Brand SAE10W30 (above CD Grade)
Lube Capacity (L) 1.65
Fuel Tank Capacity (L) 15
Continuous Running Time (hr) 9.5
Overall Dimension: LxWxH (mm) 955 x 560 x 780
Dry Weight (Kg) 170
Quantity in 20FT 72 PCS
Optiomal Features:
ATS Optional
Digital Panel Optional
Remote control Optional
We reserve the right to change specifications without notice
