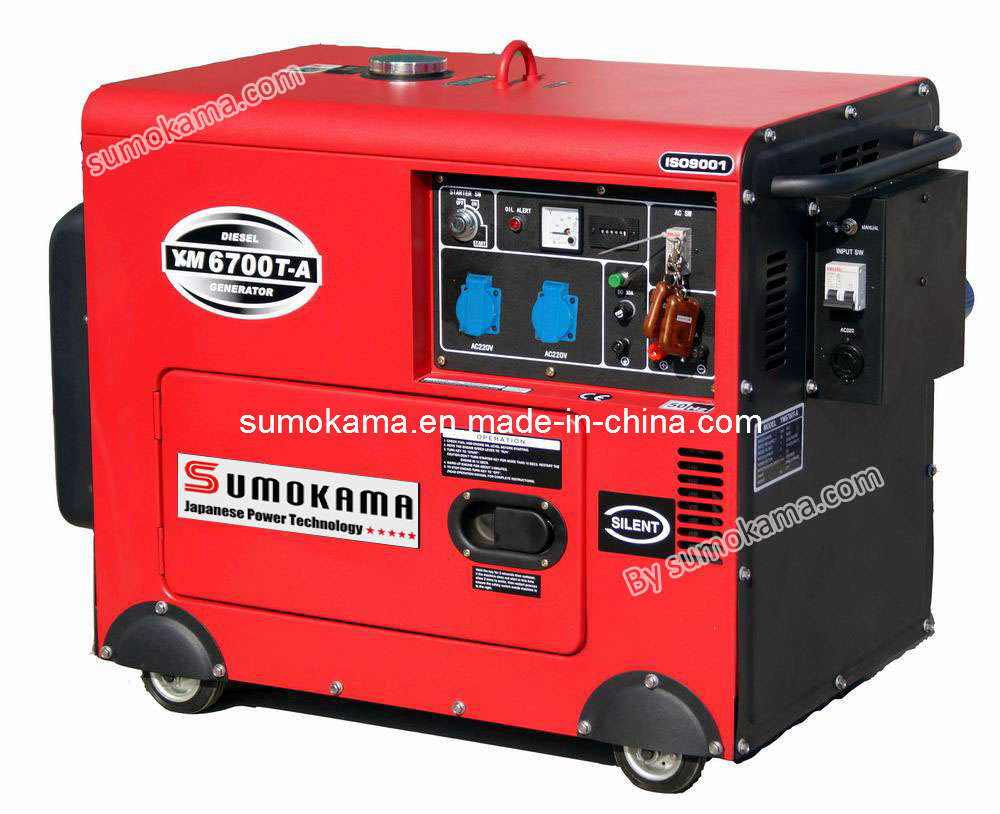

5kw Silent Diesel Generator (KDE6700TA WITH ATS)
Price: |
US $ 520/Piece |
Trade Terms: |
FOB |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Western Union |
1. CE approved diesel generator, powered by sumokama advanced air-cooled diesel engine.
2. Electric start system ensures the generator rapid start of the set.
3. Large fuel tank, ensuring hours of continuous output.
4. Low oil pressure alarm system, which can shut down the generator automatically.
5. Integrated cabinet ensures the sound proof generator running silently.
6. A variety of specially-designed control panels available for different markets.
Model |
KDE6700TA with ATS |
Frequency (HZ) |
50 |
60 |
Rated Output (KVA) |
4.5 |
5 |
Maximum Output (KVA) |
5 |
5.5 |
Rated Voltage (V) |
115/230 |
120/240 |
Rated current (A) |
39.1/19.6 |
41.7/20.8 |
Rated rotation speed (rpm) |
3000 |
3600 |
Phase No. |
Single phase |
Power Factor |
COS=1 |
Excitation Mode |
Self-excitation, 2 pole and constant voltage (AVR) |
DC Output |
12V. /8.3A , Connection Pole Output |
Structure Type |
Soundproof |
Noise Level (7m) dB(A) |
72 |
Engine Model |
kM186FA |
Engine type |
Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel |
Bore × Stroke(mm) |
86× 72 |
Displacement (L) |
0.418 |
Rated Power KW |
5.7/3000 |
6.3/3600 |
Fuel comsumption Rate(g. kw/h) |
275.1 |
281.5 |
Compression Ratio |
19: 1 |
Lubrication System |
Pressure Splashed |
Starting System |
Electric Start with 30Ah MF battery |
Fuel Type |
0#(summer), -10#(winter), diesel |
Lube Oil Brand |
SAE10W30 (above CD Grade) |
Lube Capacity (L) |
1.65 |
Fuel Tank Capacity (L) |
15 |
Continuous Running Time (hr) |
9.5 |
Overall Dimension: LxWxH (mm) |
955 x 560 x 780 |
Dry Weight (Kg) |
170 |
Quantity in 20FT |
72 Pcs |
Optiomal Features: |
ATS |
Optional |
Digital Panel |
Optional |
Remote control |
Optional |
We reserve the right to change specifications without notice |
Prod Model: |
KDE6700TA WITH ATS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output Type: |
AC Three Phase |
Stroke: |
Four Stroke |
Installation Method: |
Portable |
Type: |
Basic Diesel Generator |
Cooling Method: |
Air-Cooled |
