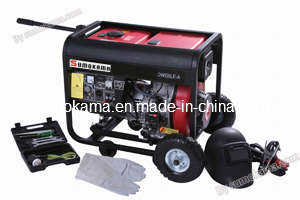

Welding Generator (KDE7500EW)
| Price: |
US $ 530/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
1. CE approved, powered by sumokama advanced Welding Generator.
2. Electric start system ensures rapid start of the set.
3. Large fuel tank, ensuring hours of continuous output.
4. Low oil pressure alarm system, which can shut down the engine automatically.
5. Integrated cabinet ensures the set running silently.
6. A variety of specially-designed control panels available for different markets.
|
Model |
YM7500EW |
|
Frequency (HZ) |
50 |
60 |
|
Rated Output (KVA) |
2.0 |
2.2 |
|
Rated Voltage (V) |
230 |
240 |
|
Rated current (A) |
8.7 |
9.2 |
|
Rated rotation speed (rpm) |
3000 |
3600 |
|
No-load welding voltage V |
65-67 |
|
Rated welding voltage V |
26-30 |
|
Rated welding DC: A |
160 |
|
Current adjusting extension |
50-190 |
|
Welding Electrode φ (mm) |
1.6-4.0 |
|
Welding load continuous ratio |
50% |
|
Phase No. |
Single phase |
|
Power Factor |
1 |
|
Excitation Mode |
Self-excitation, 2 pole and constant voltage (AVR) |
|
DC Output |
12V. /8.3A , Connection Pole Output |
|
Structure Type |
Open frame type |
|
Noise Level (7m) dB(A) |
85 |
|
Engine Model |
YM186FA |
|
Engine type |
Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel |
|
Bore × Stroke(mm) |
86× 72 |
|
Displacement (L) |
0.418 |
|
Rated Power KW |
6.2/3000 |
6.5/3600 |
|
Fuel comsumption Rate(g. kw/h) |
275.1 |
281.5 |
|
Compression Ratio |
19: 1 |
|
Lubrication System |
Pressure Splashed |
|
Starting System |
Electric Start with 30Ah MF battery |
|
Fuel Type |
0#(summer), -10#(winter), diesel |
|
Lube Oil Brand |
SAE10W30 (above CD Grade) |
|
Lube Capacity (L) |
1.65 |
|
Fuel Tank Capacity (L) |
12.5 |
|
Continuous Running Time (hr) |
12 |
|
Overall Dimension: LxWxH (mm) |
750 x 520 x 660 |
|
Dry Weight (Kg) |
110 |
|
Quantity in 20FT |
99 Pcs |
|
We reserve the right to change specifications without notice |
| Prod Model: |
KDE7500EW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
AC Three Phase |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
