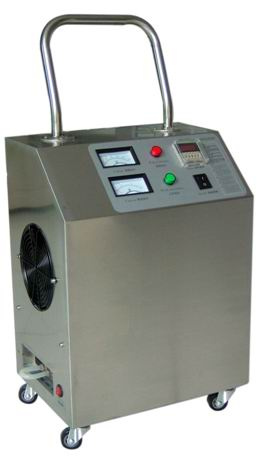

Adjustable Ozonator For Home/Industrial Air/Water Purification
NT-T Series ozone generators are very reliable, which have wide applications and low running cost. Its sterilization and disinfection functions are used in a variety of application fields of commercial, medical treatment and industrial ozone such as aquiculture, sewage water treatment, waste gas treatment, food and beverage processing, refrigeration and fresh-keeping etc.
Features:
1. High-tech power supply unit (PSU)
The high-Tech power supply unit (PSU) is the core technology, which including two (2) major processing: Frequency conversion and pressure increase. It has rather high load capacity and multi-protection function.
2. Use anti-oxidation and corrosion-resistant materials (Teflon, components made of stainless steel)
3. Use domestic patent product
A. Installed with internal and external air cooled ceramic tube for model of NT-T2-6G & NT-T5-15G, which has large cooling area, easy for heat dissipation, low temperature rise and high efficiency.
B. Installed with internal and external water cooling enamel ozone tube for model of NT-T20G.
4. Rigid housing, which can be hanged on the wall or movable with wheel.
5. Air feed with auto-dryer, which save gas feed cost.
6. Easy maintenance, long service life
Controls:
Voltmeter Ampmeter Timer On/Off
Air supply switch Working light Power light
|
Item |
Unit |
Model |
|
NT-T 20G |
|
Oxygen flow rate |
LPM |
3~10 |
|
Ozone concentration |
Mg/L |
51~104 |
|
Ozone output |
G/Hr |
18~31 |
|
Power |
Kw |
≤0.65 |
|
Ozone adjustable range |
% |
20~100 |
|
Air flow rate (Suggested) |
LPM |
50~90 |
|
Cooling method |
Water cooling for internal & external electrodes |
|
Cooling water flow rate |
LPM |
30 |
|
Compressed air pressure |
Mpa |
0.20 |
|
Fitting diameter |
mm |
4×8 |
|
Dew point |
0c |
-45.00 |
|
Fuse of power supply |
A |
5 |
|
Line power supply |
V Hz |
110/220V 50/60Hz |
|
Size |
mm |
400×300×770 |
|
Net Weight |
Kg |
35 |
|
Item |
Unit |
Model |
|
NT-T 2G |
NT-T 3G |
NT-T 5G |
NT-T 6G |
|
Oxygen flow rate |
LPM |
0.5~2 |
1~3 |
1.2~3 |
1.5~3.5 |
|
Ozone concentration |
Mg/L |
28~50 |
28~65 |
32~60 |
28~56 |
|
Ozone output |
G/Hr |
1.5~3.0 |
4~5.0 |
4.3~5.7 |
5.0~5.8 |
|
Power |
Kw |
≤0.080 |
≤0.095 |
≤0.120 |
≤0.135 |
|
Ozone adjustable range |
% |
20~100 |
|
Cooling method |
Air cooling for internal & external electrodes |
|
Air flow rate (Suggested) |
LPM |
40~60 |
|
Compressed air pressure |
Mpa |
0.025 |
|
Fitting diameter |
mm |
4×8 |
|
Dew point |
0c |
-45 |
|
Fuse of power supply |
A |
5 |
|
Line power supply |
V/Hz |
110/220V 50/60Hz |
|
Size |
mm |
360×260×610 |
|
Net Weight |
kg |
11.25 |
11.30 |
11.50 |
|
Item |
Unit |
Model |
|
NT-T 10G |
NT-T 15G |
|
Oxygen flow rate |
LPM |
2.4~6 |
3.6~9 |
|
Ozone concentration |
Mg/L |
32~60 |
32~60 |
|
Ozone output |
G/Hr |
8.6~14.5 |
13~17 |
|
Power |
Kw |
≤0.150 |
≤0.30 |
|
Ozone adjustable range |
% |
20~100 |
|
Cooling method |
Air cooling for internal & external electrodes |
|
Air flow rate (Suggested) |
LPM |
50~75 |
|
Compressed air pressure |
Mpa |
0.025 |
|
Fitting diameter |
mm |
4×8 |
|
Dew point |
0c |
-45.00 |
|
Fuse of power supply |
A |
5 |
|
Line power supply |
V Hz |
110/220V 50/60Hz |
|
Size |
mm |
400×300×770 |
|
Net Weight |
kg |
18 |
20 |
Guangzhou Netech Environmental Technology Co., Ltd. is a medium enterprise specializing in the multi-operation of the R&D and production of various Environmental Products & Equipment. Our main businesses include ozone generator units and parts, water treatment systems from clarifiers to membrane system packages, waste water treatment, environmental protection and equipment accessories & parts. We have about 30 employees with engaged in R&D and Engineering.
With our 15 years of experience in Water Treatment and Environment R&D and Engineering, we are able to solve all your solutions in Environmental Protection and Water Treatment.
