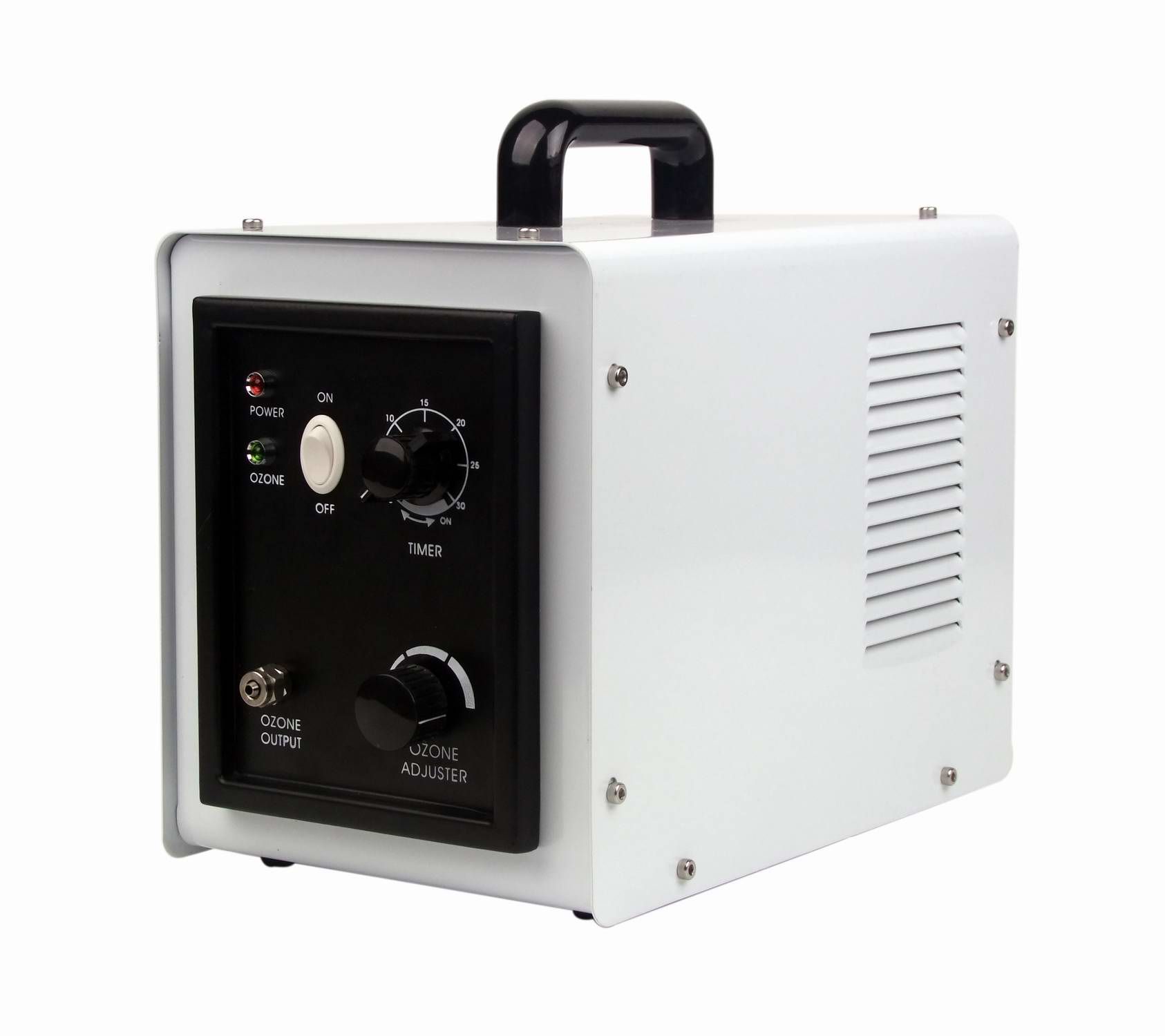

Ozone air/water cleaner/purifier/sterilizer for home/residential appliance
Features:
1, More convenient and easier operation with isolated power supply plug
2, More fashionable and humanistic shape with smooth corners and colors-white+black
3, Much lighter-5.5-5.7kg, much smaller and smarter-32*18*26cm
Features:
1, Isolated power plug
2. With mini air pump inside, convenient as air feed.
3. Adjustable ozone output: 20%-100%.
4. Two options of timer: 5-30 minutes or continuously 24hrs.
Configurations:
1, 2-3 g/hr ceramic corona discharge tube.
2, Installed with mini air pump.
3, High-tech power supply unit (PSU)
4, Isolated power plug
5, Control Panel: Power indicator and ozone indicator Ozone Adjuster Timer On/off for ozone Ozone output
6, Inside fans for cooling.
Functions:
1. Sterilization: Can quickly kill all sorts of bacteria, viruses both in air and water.
2. Detoxification: Effectively remove residual pesticide in fruit, vegetable.
3. Deodorant: Purify mildew flavour, smoke, bad smell and kinds of stink from rubish, etc
4. Add oxygen: Improve oxygen levels in the water and air.
5. Health care: Promote human metabolism
Applications:
1. Indoor air purification, suitable for 100-1000m3 space disinfection.
2. Water treatment: SPA, household water treatment, small swimming pool, drink water etc.
Suitable for water flow: 0.2-3m3/hr
Sterilize and disinfect for daily supplies, such as clothes, pillow towel, tool etc.
|
Item |
Unit |
NT-BT 3G |
NT-BT 5G |
NT-BT 6G |
|
Air flow rate |
LPM |
10 |
15 |
17 |
|
Power |
Kw |
≤0.095 |
≤0.125 |
≤0.13 |
|
Fitting diameter |
mm |
4×8 |
|
Fuse of power supply |
A |
3 |
|
Line power supply |
V Hz |
110/220V 50/60Hz |
|
Size |
mm |
330×280×180 |
|
Package size |
mm |
450×320×220 |
|
Net Weight |
Kg |
5.85 |
5.90 |
6.00 |
|
Suggested Water flow |
M3/Hr |
0.2~1.0 |
1.0~2.0 |
2.0~3.0 |
|
Suggested Space |
M3 |
300~600 |
600~800 |
800~1000 |
|
Item |
Unit |
NT-BS 3G |
NT-BS 5G |
|
Air flow rate |
LPM |
10 |
15 |
|
Power |
Kw |
≤0.095 |
≤0.125 |
|
Fitting diameter |
mm |
4×8 |
|
Fuse of power supply |
A |
3 |
|
Line power supply |
V Hz |
110/220V 50/60Hz |
|
Size |
mm |
330×270×160 |
|
Package size |
mm |
430×310×220 |
|
Net Weight |
Kg |
5.70 |
5.80 |
|
Suggested Water flow |
M3/Hr |
0.2~1.0 |
1.0~2.0 |
|
Suggested Space |
M3 |
300~600 |
600~800 |
|
Item |
Unit |
NT-KTA 2G |
NT-KTA 3G |
|
Air flow rate |
LPM |
10 |
|
Power |
Kw |
≤0.080 |
≤0.095 |
|
Fitting diameter |
mm |
4×8 |
|
Fuse of power supply |
A |
3 |
|
Line power supply |
V Hz |
110/220V 50/60Hz |
|
Size |
mm |
320×180×260 |
|
Package size |
mm |
400×310×220 |
|
Net Weight |
Kg |
5.5 |
5.7 |
|
Suggested Water flow |
M3/Hr |
0.2~0.7 |
0.2~1 |
|
Suggested Space |
M3 |
100~300 |
300~600 |
|
Item |
Unit |
NT-KTB 2G |
NT-KTB 3G |
|
Air flow rate |
LPM |
10 |
|
Power |
Kw |
≤0.080 |
≤0.095 |
|
Fitting diameter |
mm |
4×8 |
|
Fuse of power supply |
A |
3 |
|
Line power supply |
V Hz |
110/220V 50/60Hz |
|
Size |
mm |
300×270×160 |
|
Package size |
mm |
400×310×220 |
|
Net Weight |
Kg |
4.70 |
5.15 |
|
Suggested Water flow |
M3/Hr |
0.2~0.7 |
0.2~1 |
|
Suggested Space |
M3 |
100~300 |
300~600 |
