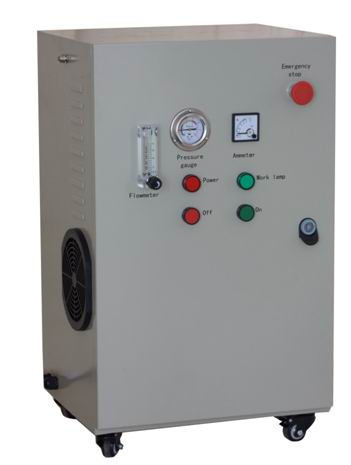

PSA Oxygen Concentrator For Aquarium/Fish-farming/Industrial Appliance
Configuration of oxygen generator
1, built-in oil free compressor inside
2, condensator
3, psa oxygen generator unit
4, control: Door lock, scram button, ampmeter, working indicator, on/off, power indicator, oxygen flow meter, voltmeter, oxygen outlet, fuse, power input
5, oxygen concentration: 90+-3%
6, pressure of oxygen outlet: 0.06-0.08mpa
Features:
1. Material: Use air as raw material, no need any additional material, thus low cost.
2. Construction: Oxygen generator has a simple and compact construction, easy to operate and maintain.
3. Great change of temperature difference: Compared with similar products in market, it can work steady at cold temperature or even sudden changes of climate
4. Oxygen production: The oxygen concentrator generate oxygen rapidly and continuously
5. Adopt pressure sensing control mode: Set up the best pressure of the oxygen bed as the switch control point, which has the function of fault warning when it detects abnormal pressure.
Application
1, welding / brazing furnace enrichment
2, fermentation glass industry
3, fish farming ozone generator
4, sewage treatment pulp and paper
5, chemical oxidation rough cutting
6, battery manufacture melting
7, mini-steel mills cement and lime kilns
8, metal spraying copper smelting
Item |
Unit |
Model |
NT-OX03L |
NT-OX05L |
NT-OX07L |
NT-OX10L |
Oxygen output |
L/Min |
3 |
5 |
7.5 |
10 |
Power |
W |
400 |
550 |
1100 |
1100 |
Dimension |
mm |
460×385×840 |
460×385×840 |
460×385×840 |
460×385×840 |
Power supply |
V/Hz |
220 |
220 |
220 |
220 |
Concentration |
% |
90+-3 |
90+-3 |
90+-3 |
90+-3 |
Temperature |
|
0-35 |
0-35 |
0-35 |
0-35 |
Relative humidity |
% |
≤70%+-10% |
≤70%+-10% |
≤70%+-10% |
≤70%+-10% |
Noise |
Db |
≤65 |
≤65 |
≤65 |
≤65 |
Outlet pressure |
Mpa |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
0.06-0.08 |
Weight |
Kg |
35.00 |
37.20 |
40.00 |
43.00 |
Oxygen Concentrator |
Refrigerant dryer
Air flow rate
(Nm3/min) |
Dimension
(mm) |
Net weight
(KG) |
Model |
Oxygen flow rate
(L/Min) |
NT-03L |
3.00 |
0.50 |
990×385×840 |
55.00 |
NT-05L |
5.00 |
0.50 |
990×385×840 |
57.50 |
NT-07L |
7.50 |
0.50 |
990×385×840 |
60.00 |
NT-010L |
10.00 |
0.50 |
990×385×840 |
63.00 |
Oxygen generator |
Refrigerant dryer |
Oil free air compressor |
Model |
Oxygen flow rate
(L/Min) |
Model |
Air flow rate
(Nm3/min) |
Model |
Air flow rate
(M3/Min) |
NT-015L |
15.00 |
NT-5SG |
0.50 |
NT-6400 |
0.64 |
NT-020L |
20.00 |
NT-5SG |
0.50 |
NT-6400 |
0.64 |
NT-025L |
25.00 |
NT-8SG |
0.85 |
NT-900 |
0.90 |
NT-030L |
30.00 |
NT-8SG |
0.85 |
NT-9000 |
0.90 |
NT-040L |
40.00 |
NT-10SG |
1.50 |
NT-1500 |
1.50 |
NT-050L |
50.00 |
NT-10SG |
1.50 |
NT-1500 |
1.50 |
NT-055L |
55.00 |
NT-10SG |
1.50 |
NT-1500 |
1.50 |
NT-065L |
65.00 |
NT-10SG |
1.50 |
NT-1800 |
1.80 |
NT-070L |
70.00 |
NT-10SG |
1.50 |
NT-1800 |
1.80 |
