AC 690V 2570KW Variable Resistive Load Bank
1.Product Introduction
AC690-2570KW Variable Resistive Load Bank
It is mainly used to test the performance of generator. It consists of one set of AC690-2570kW Intelligent Load Bank,
one set of external control panel and one set of remote control cabinet. It can provide scientific monitor measure for
generating set equipment.
2.AC690-2570KW Variable Resistive Load Bank System Chart
3.AC690-2570KW Variable Resistive Load Bank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
4. AC690-2570KW Variable Resistive Load Bank Technical Specifications
Technical parameter |
AC690-2570kW |
Rated voltage /Frequency | Total Capacity 2570kW, 690VAC 60Hz, 3 phase 4 wire |
Rated load power | Resistive load: 2570KW |
Installed Capacity | Resistive load: 2600KW |
Load step | 10,20,20,50,100,100,200,200,500,500,500,500, Total 12 steps, Min step load: 10kW. Can measure from 10kW to 2600kW |
Power factor | 1 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | External AC380V/50Hz 3 phase 4 wire (Line voltage 380V, phase voltage 220VAC) |
Wire Connection | Load power supply input--Copper bar (star coupling) Control power supply input--Connector-bar |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color | Grey(RAL7035) |
Dimension | About 6058mm*2438mm*2591mm(length*width*height),20'GP container type |
Weight | About 7000kg |
Operating Environment Parameter |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |
Main components brand |
Contactor | Schneider |
Circuit Breaker | Siemens |
Fuse | Delixi |
SCM | Infineon |
Alloy Resistor | Kaixiang |
Data Management Software | Kaixiang |
5.AC690-2570KW Variable Resistive AC Load bank Product Display

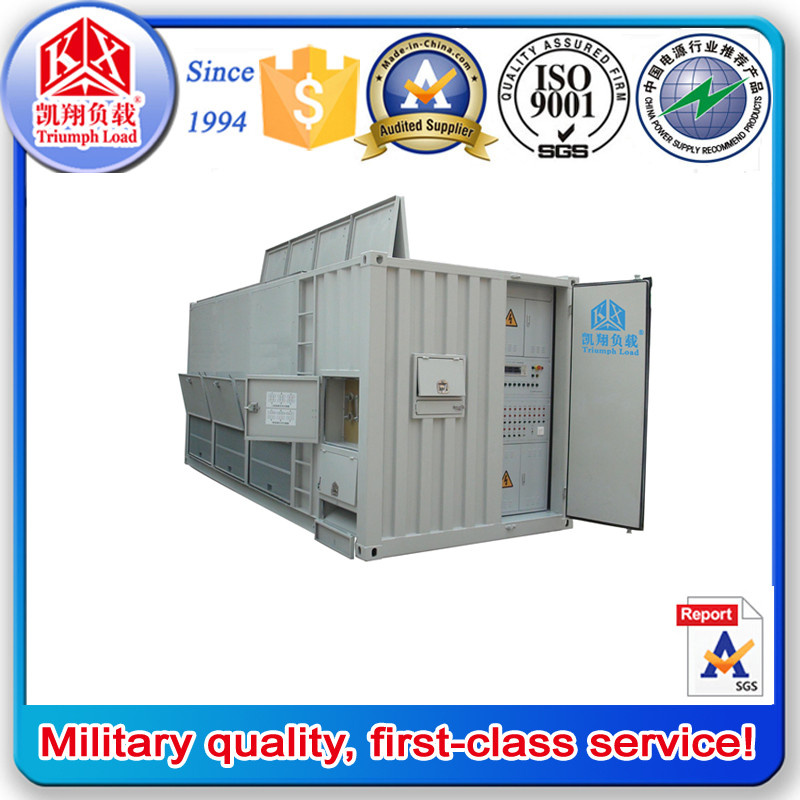

Overall Apperance

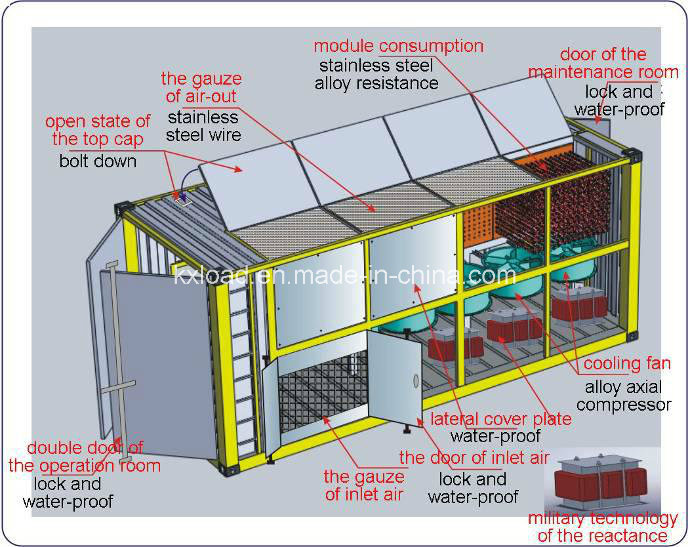

Load bank structure
6.Why choosing us
- The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
- The most patent technology and scientific research awards gainer in China.
- Advanced detection method and strict inspection procedure build the qualified quality.
- Customized production meet the individual requirement.
- Prompt delivery & excellent after sales service.
- Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
- Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
- Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
