Product Features:
Chinese Top Diesel Engine YTO used
l
lChinese Top Alternator ELEMAC used
l
lChinese Top quality SMARTGEN intelligent monitoring system used
l
lHigh Quality AISIKAI ATS as optional
Large fuel tank supports long time running and easy maintenance
l
l
lProfessional R&D Team and years of leading manufacturing & assembling experience of high quality generating setsSuper Absorbent Materials used The generating set canopy are ultra noise deducting structure design whose vendor are
also producing for reputable player such as Kohler and etc.
Compact design can minish unit dimension, and reduce logistic cost Easy transportation, convenient operation and excellent access for maintenance.
Oversized Muffler design
uDigital Monitoring system independently designed for ease operation, versatility and exam-maintenance.
Complying with the security and safety standards

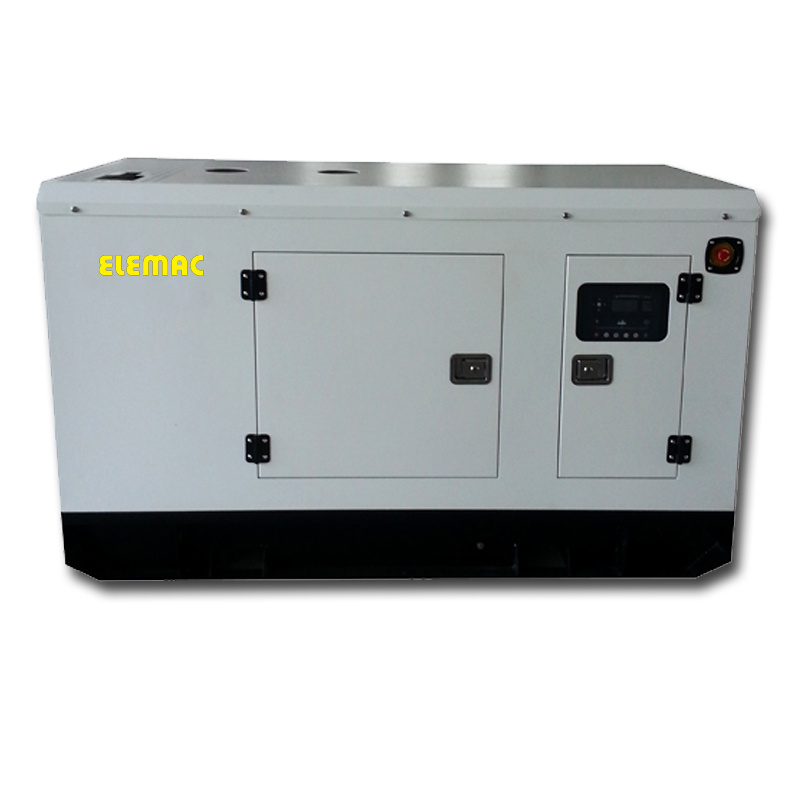

ELEMAC YTO Diesel Engine Series Soundproof Type Generating Sets |
YTO Engine + ELEMAC Alternator/3-Phase / 400V/230V/50Hz+ Smartgen HGM6120U Controller + Soundproof Canopy |
Genset Model | FOB Shanghai Pirce (US$) | Prime Power (kVA) | Standby Power (kVA) | Power Factor | Phase | YTO Engine Model | ELEMAC Alternator Model | Dimension (L*W*H) (mm) | Loading Qty./20ft |
EDG9YS3 | $2,790 | 9 | 10 | 1.0 | Three | YD380D 10kw | XN164C 13.5 | 1580X900X1065 | 14 |
EDG11YS3 | $2,980 | 11 | 12 | 1.0 | Three | YD385D 11kw | XN164D 16 | 1580X900X1065 | 14 |
EDG13YS3 | $3,150 | 13 | 14 | 1.0 | Three | YD480D 14kw | XN164D 16 | 1800X900X1100 | 12 |
EDG15YS3 | $3,260 | 15 | 17 | 1.0 | Three | YND485D 17kw | XN184ES 18.75 | 1800X900X1100 | 12 |
EDG18YS3 | $3,450 | 18 | 20 | 1.0 | Three | YSD490D 21kw | XN184E 22.5 | 1800X900X1100 | 12 |
EDG25YS3 | $3,560 | 25 | 28 | 1.0 | Three | Y490D 24kw | XN184F 27.5 | 1800X900X1100 | 12 |
EDG30YS3 | $4,100 | 30 | 33 | 1.0 | Three | Y4102D 33kw | XN184H 37.5 | 1950X900X1255 | 12 |
EDG36YS3 | $4,620 | 36 | 40 | 1.0 | Three | YT3A2Z-D 36kw | XN184J 40 | 2050X1000X1280 | 10 |
EDG38YS3 | $4,800 | 38 | 42 | 1.0 | Three | YT3A2Z-D 36kw | XN224C 42.5 | 2230X1000X1280 | 5 |
EDG40YS3 | $4,850 | 40 | 44 | 1.0 | Three | YT3A2Z-D 36kw | XN224DS 45 | 2230X1000X1280 | 5 |
EDG45YS3 | $5,460 | 45 | 50 | 1.0 | Three | LR4B5-D 48kw | XN224D 50 | 2230X1000X1280 | 5 |
EDG60YS3 | $5,690 | 60 | 66 | 1.0 | Three | YT4B2Z-D 60kw | XN224E 62.5 | 2230X1000X1280 | 5 |
EDG64YS3 | $5,960 | 64 | 70 | 1.0 | Three | LR4B3Z-D 62kw | XN224F 75 | 2230X1000X1280 | 5 |
EDG75YS3 | $6,090 | 75 | 83 | 1.0 | Three | LR4B3Z-D 62kw | XN224G 87.5 | 2230X1000X1280 | 5 |
EDG85YS3 | $7,350 | 85 | 94 | 1.0 | Three | LR4M3L-D 86kw | XN224G 87.5 | 2400X1000X1370 | 4 |
EDG90YS3 | $7,890 | 90 | 99 | 1.0 | Three | LR4M3L-D 86kw | XN274CS 94 | 2850X1100X1660 | 4 |
EDG94YS3 | $8,460 | 94 | 103 | 1.0 | Three | LR6A3Z-D 90kw | XN274C 100 | 2850X1100X1660 | 4 |
EDG100YS3 | $8,860 | 100 | 110 | 1.0 | Three | LR6A3L-D 110kw | XN274C 100 | 2850X1100X1660 | 4 |
EDG125YS3 | $9,290 | 125 | 138 | 1.0 | Three | LR6A3L-DA 120kw | XN274DS 125 | 2850X1100X1660 | 4 |
EDG135YS3 | $10,890 | 135 | 149 | 1.0 | Three | LR6B3L-DA 138kw | XN274FS 150 | 3330X1200X1850 | 2 |
EDG150YS3 | $11,260 | 150 | 165 | 1.0 | Three | LR6M3L-DA 145kw | XN274F 160 | 3330X1200X1850 | 2 |
EDG180YS3 | $11,890 | 180 | 198 | 1.0 | Three | LR6M3L-DA 145kw | XN274G 187.5 | 3330X1200X1850 | 2 |
EDG185YS3 | $13,590 | 185 | 204 | 1.0 | Three | YM6H4L-D 186kw | XN274G 187.5 | 3330X1200X1850 | 2 |
EDG200YS3 | $13,990 | 200 | 220 | 1.0 | Three | YM6H4LF-D 206kw | XN274H 200 | 3330X1200X1850 | 2 |
EDG225YS3 | $16,290 | 225 | 248 | 1.0 | Three | YM6S4L-D 220kw | XN274J 225 | 3500X1200X1850 | 2 |
EDG250YS3 | $16,790 | 250 | 275 | 1.0 | Three | YM6S4LF-DA 245kw | XN274K 250 | 3500X1200X1850 | 2 |
EDG300YS3 | $21,690 | 300 | 330 | 1.0 | Three | YM6S9L-D 290kw | XN4ES 313 | 3800X1500X2000 | 1 |
EDG350YS3 | $22,890 | 350 | 385 | 1.0 | Three | YM6S9L-D 290kw | XN4F 375 | 3800X1500X2000 | 1 |
EDG380YS3 | $25,390 | 380 | 418 | 1.0 | Three | YM6S9L-D 320kw | XN4F 375 | 4000X1800X2200 | 1 |
EDG435YS3 | $26,290 | 435 | 479 | 1.0 | Three | YM6S9LF-D 350kw | XN4FG 400 | 4000X1800X2200 | 1 |
EDG450YS3 | $27,690 | 450 | 495 | 1.0 | Three | YM6S9LF-DA 370kw | XN5G 450 | 4000X1800X2200 | 1 |
Bodlong Technology Co., Ltd., a professional power machinery supplier, specialized in R & D, manufacturing, import & export of various portable petrol & diesel generators, big size diesel /gas generating sets up to 3000kVA, engines, water pumps, welders, high pressure washers, lawn movers and construction machineries etc. With continuous generating portable & industrial power globally, Bodlong always focus on performance, reliability and security. Our systematic manufacturing process and accessories exceed customer expectations and surpass the industry standards around the globe.
ELEMAC has been an established brand of Bodlong. Through innovative research and development, state-of-the-art industry technology and constant investment in market development, ELEMAC has raised the bar delivering portable power in over 30 countries under various conditions, assisting customers with their power needs.
