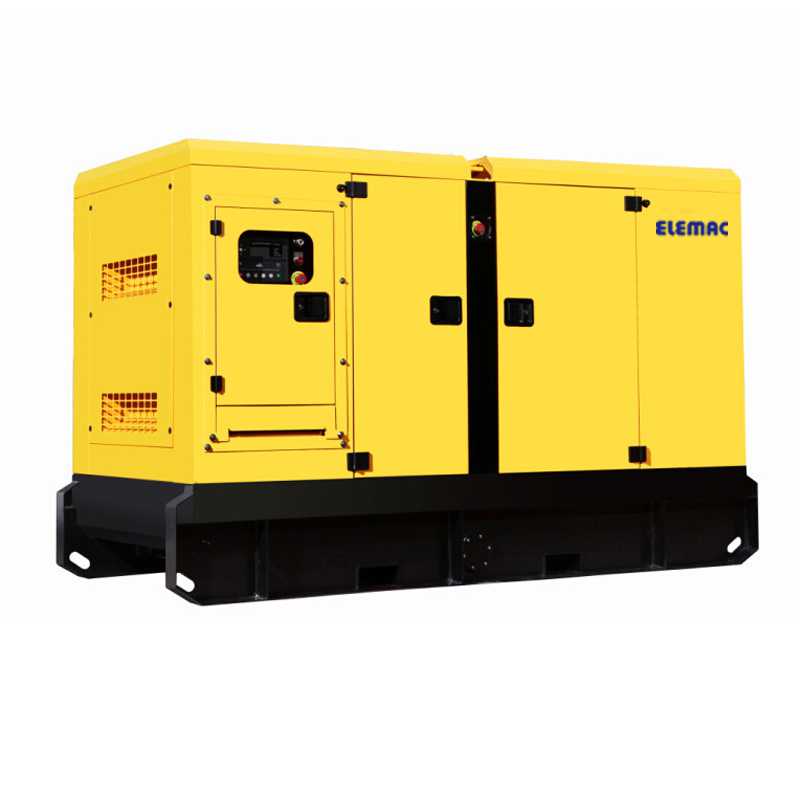

Product Features:
World Top Diesel Engine PERKINS used
l
lWorld Top Alternator STAMFORD used
l
lOriginal DEEP SEA intelligent monitoring system used
l
lHigh Quality AISIKAI ATS as optional
l
lSilent Performance, Compact and Ingenious design
l
lProfessional R&D Team and years of leading manufacturing & assembling experience of high quality generating setsSuper Absorbent Materials used The generating set canopy are ultra noise deducting structure design whose vendor are
also producing for reputable player such as Kohler and etc.
Compact design can minish unit dimension, and reduce logistic cost Easy transportation, convenient operation and excellent access for maintenance.
Oversized Muffler design
uDigital Monitoring system independently designed for ease operation, versatility and exam-maintenance.
Complying with the security and safety standards
| Model | EDG60PS |
| Standby kVA | 66 |
| Standby kW | 53 |
| Rated kVA | 60 |
| Rated kW | 48 |
| Power Factor | 0.8 |
| Voltage (VAC) | 230/400V |
| Frequency | 50 |
| Phases | Three Phases Four Line |
| Neutral | With Neutral |
| Canopy (Optional) | Weatherproof / Silent / Super Silent |
| Fuel Tank Capacity (L) | 111.2 |
| Dimensions - L x W x H (mm) / kg |
| Open Frame Type | 1480*700*1152 |
| Silent Galaxy (GX) | 2260*950*1150 |
| Noise |
| Silent Canopy @ 7m (dBA) | 65.5 |
| Engine Data |
| Model | PERKINS 1103A-33TG2 |
| RPM | 1500 |
| Speed Regulator | Electrical |
| Governing mode | isochronous |
| Electronic Governor | Woodward LCG2 |
| Cooling | Water |
| Air Intake | Turbocharged |
| Cylinders | 3 |
| Displacement: (l) | 3.3 |
| Voltage (VDC) | 12 |
| Prime flywheel Power (kWm) | 55 |
| Standby flywheel Power (kWm) | 60.5 |
| BMEP (kPa) | 1333 |
| Weight (kg) | 420 |
| Radiator cooling liquid qty (l) | 5.8 |
| Engine cooling liquid qty (l) | 4.4 |
| Oil qty (l) | 8.3 |
| Fan loss (kW) | 1.2 |
| Heat to radiation (kW) | 10 |
| Exhaust temperature (°C) | 557 |
| Cooling air flow (m3/min) | 89 |
| Combustion air flow (m3/min) | 3.8 |
| Exhaust gas flow (m3/min) | 10.1 |
| TA Luft emissions | N/A |
| TA Luft 2000 emissions | N/A |
| EPA emissions | N/A |
| EU97/68 emissions) | N/A |
| Fuel Consumption |
| Fuel consumption @50% load(l/h) | 7.2 |
| Fuel consumption @75% load(l/h) | 10.4 |
| Fuel consumption @100% load(l/h) | 13.9 |
| Alternator Data |
| Model | STAMFORD UCI224E |
| Poles nr. | 4 |
| Stand by power (kVA) | 66 |
| Stand by power (kW) | 53 |
| Contin. Power (H cl.kVA) | 60 |
| Contin. Power (H cl.kW) | 48 |
| Rated Current 3-Phase (A) | 86.6 |
| Electronic governor | AS440 |
| Insulation class | H |
| IP protection | IP23 |
| Precision (+/- %) | 1 |
| Efficiency (%) | 88.8 |
| Weight (kg) | 311 |
| Circuit breaker |
| Brand | HUAWU |
| Current (A) | 100/100 |
| Ambient Temp (°C) | 40 |
| Poles nr. | 3,4 |
| IP Protection | 2X |
| | |
| Advanced Control Panel |
| Brand | DEEP SEA |
| Model | DSE7320 |
