| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Speed: |
1500rpm /1800rpm |
| Conditions Of Use: |
All Types Available |
| Usage: |
All Types Available |
| Landuse Type Of Unit: |
All Types Available |

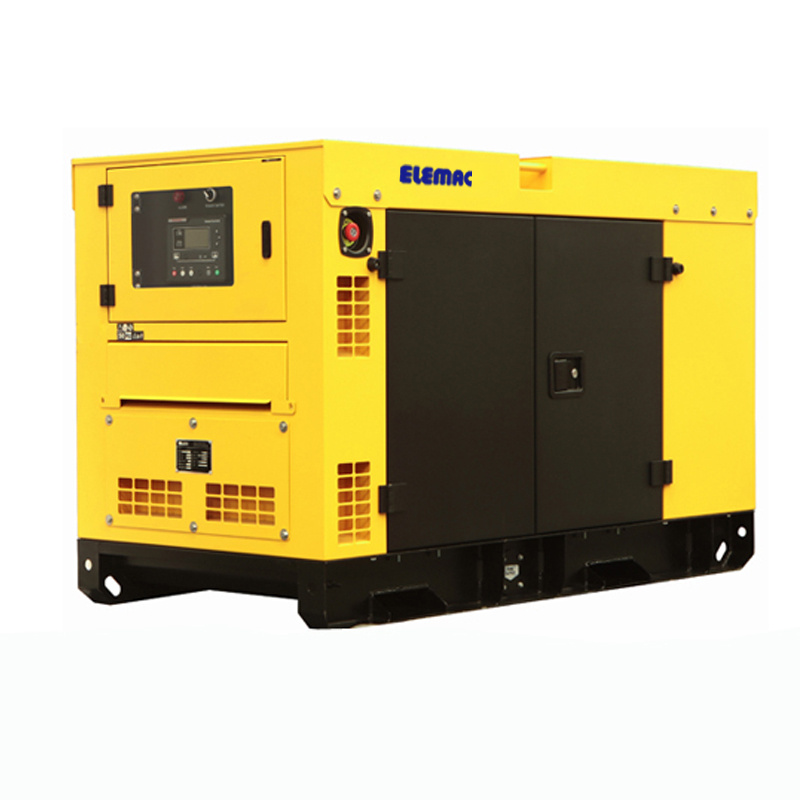

Product Description
Product Features:
Chinese Top Diesel Engine FAWDE used
l
lChinese Top Alternator ELEMAC used
l
lChinese Top quality SMARTGEN intelligent monitoring system used
l
lHigh Quality AISIKAI ATS as optional
Large fuel tank supports long time running and easy maintenance
l
l
lProfessional R&D Team and years of leading manufacturing & assembling experience of high quality generating setsSuper Absorbent Materials used The generating set canopy are ultra noise deducting structure design whose vendor are
also producing for reputable player such as Kohler and etc.
Compact design can minish unit dimension, and reduce logistic cost Easy transportation, convenient operation and excellent access for maintenance.
Oversized Muffler design
uDigital Monitoring system independently designed for ease operation, versatility and exam-maintenance.
Complying with the security and safety standards
| Genset Model | EDG15FS3 | EDG20FS3 | EDG25FS3 | EDG30FS3 | EDG38FS3 | EDG50FS3 | EDG63FS3 | EDG75FS3 | EDG100FS3 |
| Prime Output(KVA) | 15 | 20 | 25 | 30 | 37.5 | 50 | 62.5 | 75 | 100 |
| Maximum Output(KVA) | 16.5 | 22 | 27.5 | 33 | 41.3 | 55 | 68.8 | 82.5 | 110 |
| Rated Voltage(V) | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 |
| Rated Current(A) | 21.6 | 28.9 | 36 | 43.3 | 54.1 | 72.2 | 90.2 | 108.3 | 144.3 |
| Rated revolution(r/min) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Alternator | Alternator Model | WHI164D | WHI184E | WHI184F | WHI184G | WHI 184H | WHI 224D | WHI 224E | WHI 224F | WHI 274C |
| Number of Poles | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Loop Mode | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire | 3-Phase 4-wire |
| Excitation Type | Brushless self-excitation constant voltage (with AVR) |
| Power Factor(cosΦ) | 0.8(lag) |
| Insulation Class | H |
| Engine | Engine Model | 4DW81-23D | 4DW91-29D | 4DW92-35D | 4DW93-42D | 4DX22-50D | 4DX23-65D | 4110/125Z-09D | CA4DF2-12D | CA6DF2D-14D |
| Cylinder Block Structure | 4-cylinder in-line water cooled | 4-cylinder in-line water cooled | 4-cylinder in-line water cooled | 4-cylinder in-line water cooled | 4-cylinder in-line water cooled | 4-cylinder in-line water cooled | 4-cylinder in-line water cooled | 4-cylinder in-line water cooled | 6-cylinder in-line water cooled |
| Working Mode | Natural Aspiration | Natural Aspiration | Turbo-charged | Turbo charged and intercooled | Turbo-charged | Turbo charged and intercooled | Turbo-charged | Turbo charged and intercooled | Turbo-charged |
| Bore X Stroke(mm) | 85X100 | 90X100 | 90X100 | 90X100 | 102x118 | 102x118 | 110x125 | 110x125 | 110x115 |
| Displacement (L) | 2.27 | 2.54 | 2.54 | 2.54 | 3.86 | 3.86 | 4.75 | 4.75 | 6.55 |
| Rated Power(KW) | 17 | 21 | 26 | 31 | 37 | 48 | 65 | 84 | 96 |
| Lubrication Type | Force-feed and splash lubrication |
| Lubrication Oil Type | CD Class above or SAE10W-30,15W-40 |
| Lubrication Oil Capacity (L) | 7.8 | 8 | 8 | 8 | 13 | 13 | 16 | 16 | 20 |
| Starting Type | 12V Electric Start | 12V Electric Start | 12V Electric Start | 12V Electric Start | 24V Electric Start | 24V Electric Start | 24V Electric Start | 24V Electric Start | 24V Electric Start |
| Battery CapacityX Qty. | 12V45AhX1 | 12V45AhX1 | 12V45AhX1 | 12V45AhX1 | 12V80Ah x2 | 12V80Ah x2 | 12V100Ah x2 | 12V100Ah x2 | 12V120Ah x2 |
| Fuel Type | Diesel: 0#(Summer), -10#(Winter), -35#(severe-cold) |
| Lowest Fuel Consumption g/KW.h | 240 | 240 | 230 | 216 | 220 | 215 | 215 | 205 | 202 |
| Genset | Control Panel Type | Intelligent Controller |
| Output Voltage(V) | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 |
| Noise Level @7m dB(A) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Fuel Tank Capacity (L) | 60 | 60 | 67 | 76 | 120 | 120 | 200 | 200 | 230 |
| Continuous Running Time (h) | 14 | 14 | 13 | 13 | 13 | 10 | 13 | 11 | 9.5 |
| Overall Dimension(mm) | 1900X800X1100 | 1900X800X1100 | 2000X800X1150 | 2200X900X1150 | 2300x950x1250 | 2300x950x1250 | 2750x1050x1350 | 2750x1050x1350 | 3000x1080x1500 |
| Genset Net Weight(Kg) | 980 | 980 | 1040 | 1140 | 1240 | 1360 | 1660 | 1740 | 2490 |
| Remark: No Load 100% Load All dimensions and Weights are only for reference, for exact data please refer to real products. |
