Features of Natural Gas Generator Sets:
Environment Protection
Natural Gas is one kind of clean and environment protection energy, which has lower harmful emission, almost being no pollution to the air. The cost of fuel is much cheaper than the traditional fuel.
Advantage Technology of Gas Engine
Gas Engine adopts the Lean Burn Combustion Technology, the fuel cost is cheaper, engine exhaust temperature is lower and high reliability, Closed-loop amends technology and automatically adaptive gas heat value and fractions.
Generator sets safe and reliable

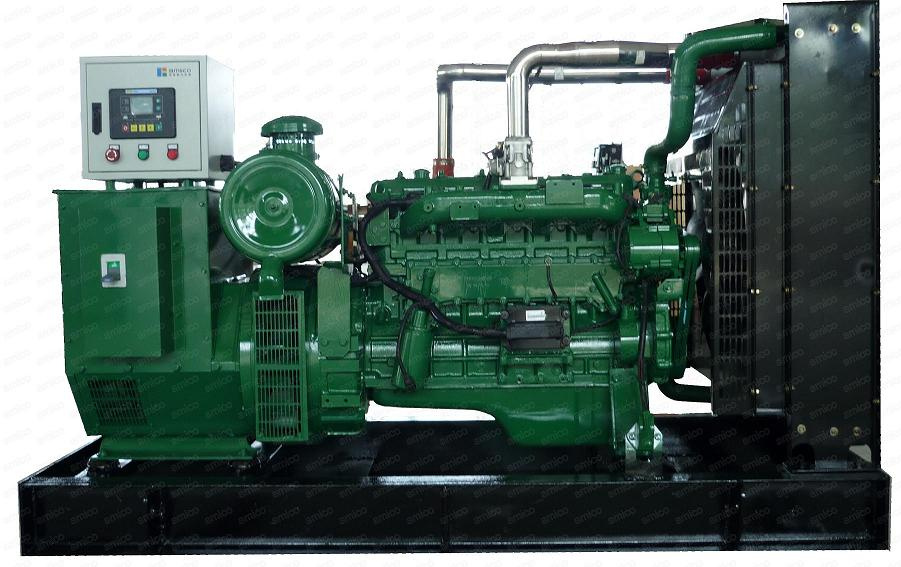

AMICO Natural Gas Generator Set opt the famous Vehicular Gas Engine and Brushless Alternator; It improved the safety and Practicability for Long time working.
More Comprehensive Protection For the Units
The excellent generator control system with voltage, over current, reverse power protection. As well, it could monitor the engine speed, water and oil temperatures, oil pressure, exhaust temperature and more operating parameters. The units with the out limited sound and light alarm and shutdown protection for the main parameters.
Various Operations and Simple Operating
AMICO Natural Gas Generator Sets can operate singly, in parallel or combine with main network. The more, it can achieve one key Start and Stopped.
Cheap Cost and Wide Applications
It is suitable for the regions abundant in gas fields to use as standby power supply, being, stable environment projection and economy.
|
Genset |
Fuel |
Natural gas |
Natural gas |
Natural gas |
|
Genset Model |
90GF-NG-AMD |
120GF-NG-AMD |
140GF-NG-AMD |
|
Prime Power |
KW |
90 |
120 |
140 |
|
KVA |
112.5 |
150 |
175 |
|
Standby Power |
KW |
99 |
132 |
154 |
|
KVA |
123.75 |
165 |
192.5 |
|
Gas consumption |
0.30Nm 3 /kw. h |
0.29Nm 3 /kw. h |
0.29Nm 3 /kw. h |
|
Engine |
Engine Model |
EQD100N |
WT615.93 |
WT615.93 |
|
BorexStroke(mm) |
6-105× 120 |
6-126× 130 |
6-126× 130 |
|
Total displacement(L) |
6.234 |
9.726 |
9.726 |
|
Starting Method |
24VDC Electric Start |
|
Intake Method |
Turbocharged& intercooled |
|
Fuel Gontrol |
Oxygen sensor closed loop control |
|
Ignition Control |
Electronically controlled independent cylinder high-energy ignition |
|
Speed Control |
Electronic Speed governing |
|
Rated Speed rpm |
1500 or 1800 |
|
Cooling Method |
Closed-Loop water cooling |
|
Alternater |
Rated Voltage(V) |
230/400 |
230/400 |
230/400 |
|
Rated Current(A) |
162.4 |
216.5 |
252.6 |
|
Rated Frequency 9HZ) |
50 or 60 |
50 or 60 |
50 or 60 |
|
Supply Connection |
3 Phase 4 Lines |
|
Power Factor |
0.8(Delay) |
|
Spec |
Net weight(KG) |
1200 |
1450 |
1500 |
|
Size(L× W× H)mm |
2240× 1000× 1400 |
2700× 1120× 1600 |
2900× 1200× 1650 |
Chengdu Amico Technologies Co., Ltd. is a Gas Power Control Professor with Gas Engine R&D, Control system support, technology training and Selection Services. As well, AMICO is a Professional Manufactory of Gas Engine Power Units and Gas Generator Sets.
Gas Engine Units are independently developed products of AMICO. We use Lean Burn Combustion technology with famous brand gas engines and alternators and gas engine units to achieve the overall electronic control. The applications of Gas Engine Units are wide. The Units can use Natural Gas (Including CNG and LNG), Liquefied Petroleum Gas (LPG), Associated Gas of Oilfield, Coal Bed Gas and Biogas. Our products are widely used in oil and gas fields, coal mines, refusing landfills and other civilian areas.
AMICO is located in Chengdu Modern Industrial Zone with 20000 square meters of R&D and production base. 80% of Employees have received High Education. We have about 30 Senior Engineers, Doctors and Masters. The main engineers of our R&D team have participated in the drafting of Part of the Standards for the Gas Automobiles. We are committed to the 863 Project-Natural Gas Engine Development. AMICO has the Top Automatic Text System and equipment for the Gas Engine Units and Gas Generator Sets. Our company has attained ISO9001: 2000 Quality System Certification and is the "Sichuan High-Tech Enterprise".
AMICO adheres to the motto of "customers first" and has built a sales and service system throughout China, Southeast Asia and other countries and regions. We hope to provide new and old customers with excellent products and perfect service.
