Home Generator Products 30kw, 50kw Biogas Generator Sets

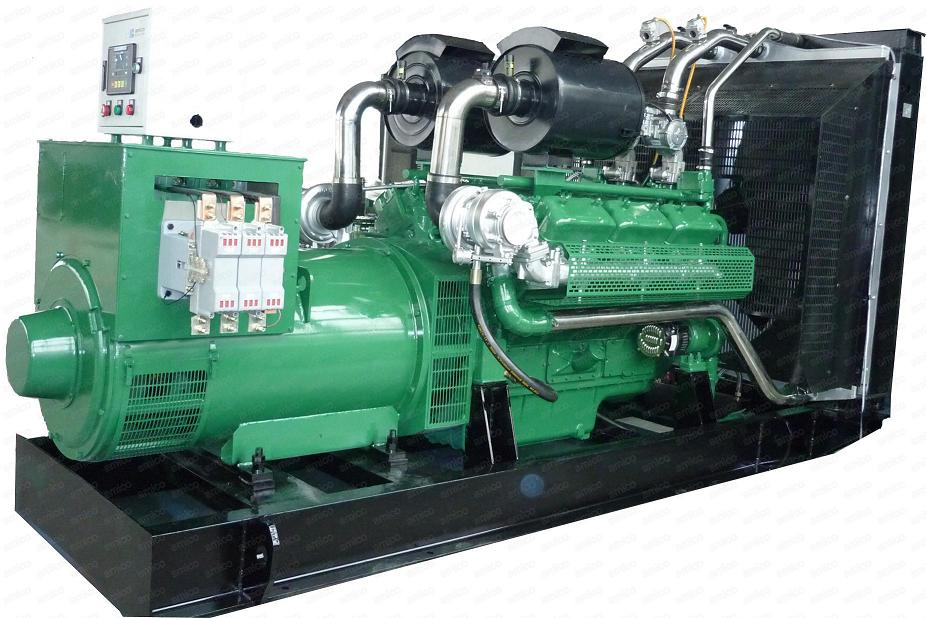

30kw, 50kw Biogas Generator Sets

30kw, 50kw Biogas Generator Sets
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: L/C
Biogas is the cleanest energy on the earth.

Biogas Generating could reduce the environmental pollution good for the environment protection; As well, it could ease the contradictions between power supply and demand. Biogas generating reduced the cost of production and it enhances the competitiveness of enterprises.

Biogas is made by Methanogen in the closed environment with the definite air temperature, humidity and etc. 1 M3 biogas could generate 2kw. At this present, plenty of biogas is made from rural areas and farming industries per year. As well, it produced from urban organic industrial effluents, garbage and such industrial plants like distillery, citric acid plants, etc.
Genset Fuel Biogas Biogas
Genset Model 30GF-ZC-AMD 50GF-ZC-AMD
Prime Power KW 30 50
KVA 37.5 62.5
Standby Power KW 33 55
KVA 41.25 68.75
Gas consumption 0.53Nm 3 /kw. h 0.53Nm 3 /kw. h
Engine Engine Model NQ100N EQD70N
BorexStroke(mm) 4-102× 115 6-105× 120
Total displacement(L) 3.759 6.234
Starting Method 24VDC Electric Start
Intake Method Naturally aspirated
Fuel Gontrol   Oxygen sensor closed loop control
Ignition Control Electronically controlled independent cylinder high-energy ignition
Speed Control Electronic Speed governing
Rated Speed rpm 1500 or 1800
Cooling Method Closed-Loop water cooling
Alternater Rated Voltage(V) 230/400 230/400
Rated Current(A) 54.1 90.2
Rated Frequency (HZ)  50 or 60 50 or 60
Supply Connection 3 Phase 4 Lines
Power Factor 0.8(Delay)
Spec Net weight(KG) 780 1000
Size(L× W× H)mm 1720× 820× 1250 2170× 900× 1400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
30gf-Zc-Amd: 1720× 820× 1250
50gf-Zc-Amd: 2170× 900× 1400
Gas Source: Biogas
Chengdu Amico Technologies Co., Ltd. is a Gas Power Control Professor with Gas Engine R&D, Control system support, technology training and Selection Services. As well, AMICO is a Professional Manufactory of Gas Engine Power Units and Gas Generator Sets.

Gas Engine Units are independently developed products of AMICO. We use Lean Burn Combustion technology with famous brand gas engines and alternators and gas engine units to achieve the overall electronic control. The applications of Gas Engine Units are wide. The Units can use Natural Gas (Including CNG and LNG), Liquefied Petroleum Gas (LPG), Associated Gas of Oilfield, Coal Bed Gas and Biogas. Our products are widely used in oil and gas fields, coal mines, refusing landfills and other civilian areas.

AMICO is located in Chengdu Modern Industrial Zone with 20000 square meters of R&D and production base. 80% of Employees have received High Education. We have about 30 Senior Engineers, Doctors and Masters. The main engineers of our R&D team have participated in the drafting of Part of the Standards for the Gas Automobiles. We are committed to the 863 Project-Natural Gas Engine Development. AMICO has the Top Automatic Text System and equipment for the Gas Engine Units and Gas Generator Sets. Our company has attained ISO9001: 2000 Quality System Certification and is the "Sichuan High-Tech Enterprise".

AMICO adheres to the motto of "customers first" and has built a sales and service system throughout China, Southeast Asia and other countries and regions. We hope to provide new and old customers with excellent products and perfect service.
