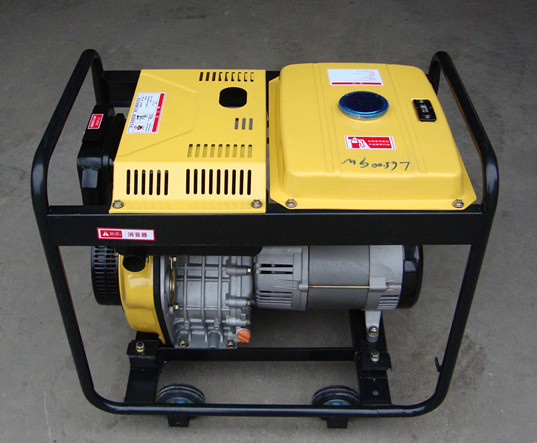

8KW small power diesel generator
Specifications
1. Low noise operation
2. Intelligent control panel
3. Low oil alarm
4. New AVR
Features:
1. The new AVR makes the power output more stable.
2. Low Oil Alarm System will stop working automatically when there is an oil shortage.
3. This is a traditional open generator, the bracket is firm and durable.
Commercial Conditions:
. Port of loading: Qingdao port
. Port of destination: To be informed
. Delivery time: 15-40 days after down payment
. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory
. Insurance: 110% of total amount
. Failure Remedy: Free spare parts due to failures cause by the quality
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
|
1. Specification of genset |
|
Gensets model |
STC-8 |
|
Prime power |
8KW |
|
Rated Voltage |
400/230V |
|
Rated frequency(HZ) |
50 |
|
Rated Speed |
1500rpm |
|
Power Factor(COS) |
0.8(lagging) |
|
Dimensions(mm) (L×W×H) |
115*58*70 |
|
Net Weight(kg) |
245 |
|
2. Specification of diesel engine |
|
Engine brand |
CHANGZHOUXINTIAN |
|
Engine model |
S1100 |
|
Number of Cylinders |
1 |
|
Aspiration |
Unturbo |
|
Bore×Stroke (mm×mm) |
100/115 |
|
Type of speed regulation |
Machinery |
|
Cooling type |
Water Cooling |
|
Colling started |
By hand |
|
Weight(kg) |
155 |
|
3. Specification of alternator |
|
Alternator brand |
JIANGYUE |
|
Alternator model |
GF-8 |
|
Number of Phase |
3 |
|
Connecting Type |
3 Phase and 4 Wires |
|
Number of Bearing |
1 |
|
Protection Grade |
IP23 |
|
Rated current |
14.4A |
|
Insulation Class |
H |
|
Telephone Influence Factor (TIF) |
≤50 |
|
THF |
≤2% |
|
Voltage Regulation, Steady State |
≤±1% |
|
TransientStateVoltage |
≤-15%-+20% |
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
