| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Main specifications | |
| Rated power (kW) | 60kW |
| Rated speed (rpm) | 60 |
| Rated torque (N*m): | 9550Nm |
| Rated voltage (V): | 400 |
| Rated current (A): | 86.6 |
| Poles | 24 |
| Frequency (Hz) | 12 |
| Insulation Class: | H |
| Protection Class | IP54 |
| Efficiency (> % ) | 90% |
| Connection | 3-phase, star connection |
| Mechanical specifications | |
| Installation | Horizontal |
| Frame size | Y400 |
| Weight (Kg) | 2000 |
| Start-up torque (< N*m) : | 250 |
| Materials | |
| Shaft material | Steel |
| Bearings | SKF |
| Casing material | Steel |
| Winding material | Copper |
| Winding temperature level | 180 °C |
| Magnet | NdFeB |
| Magnet temperature level | 150 °C |
| Core | Cold rolled silicon steel sheet |
Product Specification:

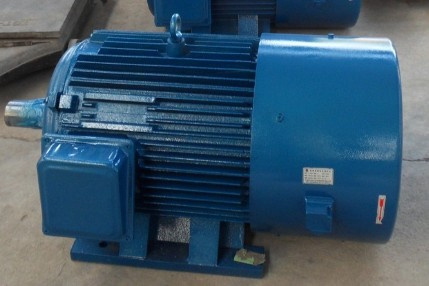

(1)Low speed permanent magnet generators, leaving out reduction box, generating high voltage at low speed.
(2)High efficient PM generators, optimal design, compact structure, no carbon brush, no spark, do not need excitation. Protection Class: IP44. Prevent water, mud or dust getting into the generator, long life.
(3)No excitation control box, sample structure, high reliability.
(4)Small cubage, light weight, high energy density, suitable for special situations.
(5)Running effectively in the whole speed range, high generating efficiency.
(6)Using embedded type rare-earth magnet steel, suitable for bumping, reduplicate startup, and reversible operation.
(7)Adopting imported oil-contained bearings, maintenance free, high reliability, long life.
(8)The voltage, speed ,power of the generator can be customized. The shape can be changed, using spine shaft, biaxial stretch, front edge output ways.
| Prod Model: | YGDL |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure (For Chain): | Roller Chain |
| Usage: | Transportation Chain |
| Color: | Black |
