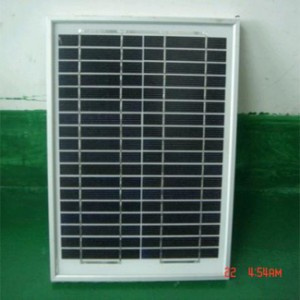

5Watt Solar Panel Features
1) High Efficiency
2) 6V or 12V DC standard output
3) CE, TUV junction box
5) Warranty: 2 years
6) 90% power 10 years
7) 80% power 25 years
|
Model |
SNM-P5 |
|
Nominal power Pm |
5 Watt |
|
Power allowance |
± 10% |
|
Optimized working voltage Vm |
17.49V |
|
Optimized working current Im |
0.28A |
|
Open circuit voltage Voc |
21.67V |
|
Short circuit current Isc |
0.3A |
|
Module efficiency |
8.5% |
|
Withstanding voltage |
DC715V |
|
Dimension of module (mm) |
310*368*18 |
|
Net weight (kg) |
1.5 |
|
Packing (pcs/carton) |
20 |
|
Dimension of package (mm) |
Package of inside320*382*28Package of outside334*620*397 |
|
Volume (m3) |
0.077 |
|
Gross weight (kg/ carton) |
35 |
|
Dimension of pallet (mm) |
1200*800*1825 |
|
Quantity in a 20’ container |
20carton/ pallet× 8 pallet =160 carton (3200pcs) |
|
Time returnable and replaceable |
2 year |
|
Power attenuation |
10year≤ 10%20 year≤ 20% |
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
