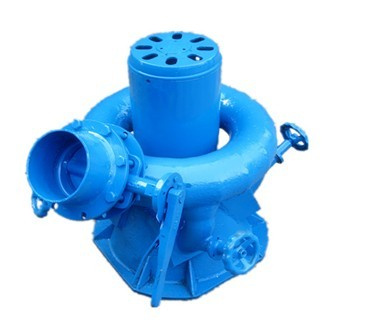

Ommon old style single nozzle inclined jet water turbine generator is only suitable for application of high water head and small flow. Power of Coiled four-nozzle inclined jet generators are above 5 KW-15KW and suitable for customers with medium/high water head and medium/low flow. They are made for sufficient utilization of water source by switching of numbers of nozzles according to high/low water season and the actual power needed during operation. The output generated power will be multiply increased and reach that of several sets of machines with the same water head by just adjusting water flow. The permanent magnetic motor is manufactured using high-performance strong magnetic materials. The motor is equipped with load regulator to automatically regulate load of the generator and stabilize the output voltage.
Name | Power (KW) | Water head (M) | Flow (m³ /S) | Rotating speed (R/M) | Voltage (V) | Frequency (Hz) | Transmission |
Coil pipe four nozzle incline jet water turbine generator | 5.0 | 20-50 | 0.044-0.018 | 1000/1500 | 220/380 | 50 | Direct |
8.0 | 22-50 | 0.064-0.028 | 1000/1500 | 220/380 | 50 | Direct |
10 | 20-50 | 0.085-0.034 | 1000/1500 | 380 | 50 | Direct |
12 | 20-50 | 0.099-0.04 | 1000/1500 | 380 | 50 | Direct |
15 | 20-50 | 0.120-0.044 | 1000/1500 | 380 | 50 | Direct |
