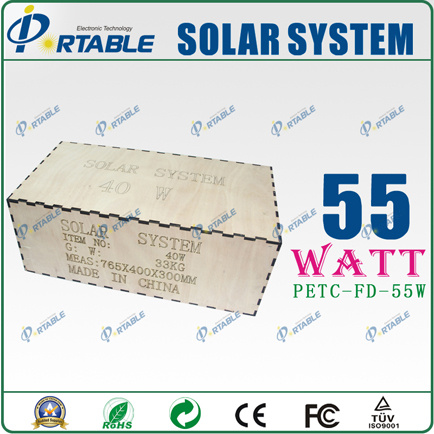

55W solar power system for home and outside use
Mini Projects Solar Power Systems with AC110V~260V and DC12V
Specification:
1) Solar Panel: 55W, working voltage: 18V
2) Battery: 12V/48Ah
3) Inverter: Input DC12V; Output 220V/150W
5)Output Control(DC): Output will stop when the voltage of d battery less than10.5V(the red indicator light turn on). When it reaches 12.8V, it works(the red indicator light turn off)
(AC): Output will stop when the voltage of d battery less than10.5V(the red indicator light turn off). When it reaches 12.8V, it works(the red indicator light turn on)
6) Working time: (DC)support 2*7W/12V lamps to work 30 hours
(AC)support 10W-150W appliance to work about 30~4hours
55W portable solar power system
Portable power system, 55W solar power system, Portable solar system
1. Portable solar power system description
The portable power system is designed to bring green and sustainable energy to electricity-scarce households, business communities and public utilities. And this intelligent portable equipment, reputed for safety, reliability and free maintenance, mainly supplies power to lights, radios, TV sets and communication devices.
2. Products details
Solar panel: 55W
Size: 420x260x180mm
Weight: 15kgs
3. Applications
Owing to our unique design, this portable solar power system is very nice and very practical. It only weights about 15kgs. Contributing to its compact design, it can be widely used in many associations:
1). Outdoor uses: Camping, hiking, hunting, fishing, hurricane emergency power kits and so on.
2). Indoor uses: Mainly for routine applications. It is usually used for supply electricity for lamps, laptops, mobile phone, fans...
4. Features and advantages
1). Waterproof, shakeproof, pressure-resistance
2). Easy installation, easy carry, simple and convenient use
3). Intelligent control: When the equipment shorting out, overload or over discharge, the system will automatically switch the function to protect the system in safety.
4). Long working hours.
5. Working Principle
The solar panels convert collected sunlight into electricity, which is then stored in a battery through a controller. The solar system, when required, is able to power different types of domestic electrical appliances by intelligent transformation control. Power supply port: DC 12V, AC 220V.
In general, the fully-charged system can work 3 days constantly given it works 5 hours every day. Solar power systems are designed in accordance with different power requirements.
Applications: Solar power system 55W
Solar system can be applied to the villa, housing, outdoors, tourist resorts, prairie areas, remote mountain village, mountain island, household, farms, villages, farm, hills, island, highway and any regions to generate electricity.
More pictures
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
mono/polycrystalline |
27.5W |
2pcs |
|
solar battery |
Sealed lead-acid |
12AH |
4pcs |
|
solar control system |
Controller |
10A |
1pc |
|
inverter |
150W |
1pc |
|
control box |
|
1pc |
|
output |
AC 220V |
|
1pc |
|
DC 12V |
|
2pc |
|
Design load appliances |
Model |
Load Power |
Quantity |
Working Hours/Day |
Power Consumption/Day |
Continued Working Days |
|
Lighitng |
Fluorescent lamp |
40W |
2 |
4 |
320WH |
1.3Days |
|
Color TV |
21 Inch |
60W |
1 |
4 |
240WH |
1.7Days |
|
Laptop |
SAMSUNG R528 |
60W |
1 |
2 |
120WH |
3.5Days |
|
Printer |
Inkjet |
30W |
1 |
0.5 |
15WH |
27Days |
|
Fax |
Inkjet |
150W |
1 |
0.5 |
75WH |
5.5Days |
|
Satellite TV Receiver |
|
25W |
1 |
2 |
50WH |
8Days |
|
Fan |
Haier |
50W |
1 |
4 |
200WH |
2Days |
|
Radio |
SONY ICF-B100 |
3W |
1 |
6 |
18WH |
23Days |
|
Mobilephone |
iPhone 3GS |
2.5W |
2 |
8 |
40WH |
10.5Days |
|
Intercom |
MOTO |
7.5W |
1 |
6 |
45WH |
9Days |
|
Stallite Phone |
MOTO |
12W |
1 |
2 |
24WH |
17Days |
|
GPS |
|
4W |
1 |
4 |
16WH |
26Days |
