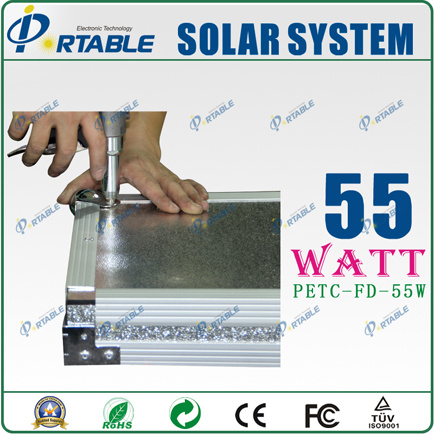

55W portable solar home lighting system with pull rod and wheel
This solar power system includes Solar cell modules, special solar battery, solar controller, solar power generator systems etc. Pollution-free, energy-saving, protecting environment, free maintenance and less restriction, with low Failure Rate, easily assembling and carring, convenient using, Its llifespan can reach above 20 years, a variety of charging ways complementary, solar \AC and DC all can charge for the system, one time investment, long-term benefits.
It can be applied to the villa, housing, outdoors\tourist resorts, prairie areas, remote mountain village, mountain island, household, farms, villages, farm, hills, island, highway and any regions to generate electricity.
55W portable solar home lighting system with pull rod and wheel
Characteristics:
The system has high conversion of silicon solar panel, high euphotic rate and mechanical strength, good resistance to climate, preventing wind, hail. Which can effectively resist corrosion of moisture and salt fog, and can produce high efficient power and energy.
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
mono/polycrystalline |
27.5W |
2pcs |
|
solar battery |
Sealed lead-acid |
12AH |
4pcs |
|
solar control system |
Controller |
10A |
1pc |
|
inverter |
150W |
1pc |
|
control box |
|
1pc |
|
output |
AC 100~220V |
|
1pc |
|
DC 12V |
12V/10A |
2pcs |
|
AC Charge |
AC86V~260V |
15V/5A |
2pc |
|
PRODUCT SIZE(CM) |
L68*W33*H21 |
|
PACKING (CM) |
1PC/Carton:L73*W38*H27CM |
|
Wooden Case:75*43*27CM |
|
pull rod and wheels(options) |
|
N.W/G.W(KG/PC) |
26KG/28KG |
The system can support:
|
Design load appliances |
Model |
Load Power |
Quantity |
Working Hours/Day |
Power Consumption/Day |
Continued Working Days |
|
Lighitng |
Fluorescent lamp |
40W |
2 |
4 |
320WH |
1.3Days |
|
Color TV |
21 Inch |
60W |
1 |
4 |
240WH |
1.7Days |
|
Laptop |
SAMSUNG R528 |
60W |
1 |
2 |
120WH |
3.5Days |
|
Printer |
Inkjet |
30W |
1 |
0.5 |
15WH |
27Days |
|
Fax |
Inkjet |
150W |
1 |
0.5 |
75WH |
5.5Days |
|
Satellite TV Receiver |
|
25W |
1 |
2 |
50WH |
8Days |
|
Fan |
Haier |
50W |
1 |
4 |
200WH |
2Days |
|
Radio |
SONY ICF-B100 |
3W |
1 |
6 |
18WH |
23Days |
|
Mobilephone |
iPhone 3GS |
2.5W |
2 |
8 |
40WH |
10.5Days |
|
Intercom |
MOTO |
7.5W |
1 |
6 |
45WH |
9Days |
|
Stallite Phone |
MOTO |
12W |
1 |
2 |
24WH |
17Days |
|
GPS |
|
4W |
1 |
4 |
16WH |
26Days |
Shenzhen Portable Electronic Technology Co., Ltd., is mainly devoted to the research, development, manufacture and sale of solar products and power supply. Our solar mobile/laptop chargers, portable power, solar modules, solar infrared security lights, solar street light, solar controller and solar home system etc supply have been successfully sold to clients in Europe, the USA, the Middle East, Asia, Australia and South Africa.
There is an elite R&D team in the company which is LED by the senior engineers in the solar energy photovoltaic application industry. With many years' technical accumulation and experience deposition, this team becomes full-fledged nowadays and involves into research and development based upon market application and information feedback from customers in the aspects of environmental-friendly energy, energy conservation, pollution and consumption reduction, intelligent illumination and control as well as electric hard disc.
Adhering to the principle of "Your success is our success", we pursue the goal of creating more values for our customers through providing higher application demands to different customers, promoting new products and forging rapid development paces diligently.
