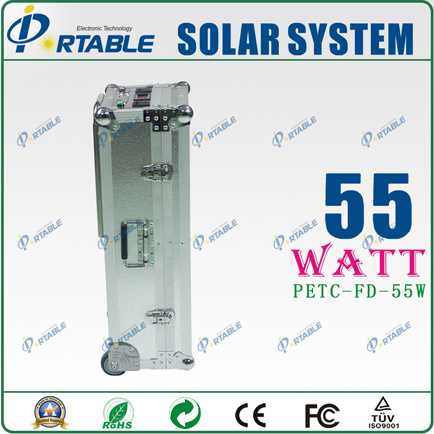

55W Portable Solar System/Home Use/Energy Generator(PETC-FD-55W)
55W Solar Power Supply/Portable Solar System
This solar power system includes Solar cell modules, special solar battery, solar controller, solar power generator systems etc.
Pollution-free, energy-saving, protecting environment, free maintenance and less restriction, with low Failure Rate, easily assembling and carring, convenient using,
Its llifespan can reach above 20 years, a variety of charging ways complementary, solar \AC and DC all can charge for the system, one time investment, long-term benefits.
It can be applied to the villa, housing, outdoors\tourist resorts, prairie areas, remote mountain village, mountain island, household, farms, villages, farm, hills, island, highway and any regions to generate electricity.
Characteristics
The system has high conversion of silicon solar panel, high euphotic rate and mechanical strength, good resistance to climate, preventing wind, hail. Which can effectively resist corrosion of moisture and salt fog, and can produce high efficient power and energy.
The above information is only for reference. Our R&D team can design the systerm according to the local natural resources and customers specific requirements.
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
mono/polycrystalline |
27.5W |
2pcs |
|
solar battery |
Sealed lead-acid |
12AH |
4pc |
|
solar control system |
Controller |
10A |
1pc |
|
inverter |
150W |
1pc |
|
control box |
|
1pc |
|
output |
AC 100V~240V |
|
2pc |
|
DC 12V |
|
2pc |
|
The system can support: |
|
|
|
|
|
|
|
Design load appliances |
Model |
Load Power |
Quantity |
Working Hours/Day |
Power Consumption/Day |
Continued Working Days |
|
Lighitng |
Fluorescent lamp |
40W |
2 |
4 |
320WH |
1.3Days |
|
Color TV |
21 Inch |
60W |
1 |
4 |
240WH |
1.7Days |
|
Laptop |
SAMSUNG R528 |
60W |
1 |
2 |
120WH |
3.5Days |
|
Printer |
Inkjet |
30W |
1 |
0.5 |
15WH |
27Days |
|
Fax |
Inkjet |
150W |
1 |
0.5 |
75WH |
5.5Days |
|
Satellite TV Receiver |
|
25W |
1 |
2 |
50WH |
8Days |
|
Fan |
Haier |
50W |
1 |
4 |
200WH |
2Days |
|
Radio |
SONY ICF-B100 |
3W |
1 |
6 |
18WH |
23Days |
|
Mobilephone |
iPhone 3GS |
2.5W |
2 |
8 |
40WH |
10.5Days |
|
Intercom |
MOTO |
7.5W |
1 |
6 |
45WH |
9Days |
|
Stallite Phone |
MOTO |
12W |
1 |
2 |
24WH |
17Days |
|
GPS |
|
4W |
1 |
4 |
16WH |
26Days |
