| Price: | Negotiable |
|---|---|
| Trade Terms: | CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
|
PV Module Specifications (Test condition: 1000W/m2, AM1.5, 25' C) |
||
|
Parameters Silicon Type |
SNM-M50(36) | |
| Mono-crystalline silicon | ||
| Maximum Power | Watt | 50W |
| Production Tolerance | % | +3% /-3% |
| Maximum Power voltage | V | 18.0 |
| Maximum Power current | A | 2.78 |
| Open circuit voltage | V | 22.0 |
| Short circuit current | A | 3.28 |
| Size of module (wide and high) | 835*540*30mm | |
| Frame (type, material and thickness) | Anodized Alu. Alloy frame, 30mm thickness | |
| Number of cells | 36pcs | |
| Weight per piece Kg | 6.5 | |
| Type of junction box | PV junction box | |
| Maximum system voltage | 750V | |
| Temperature coefficient of Isc | +0.05%/' C | |
| Temperature coefficient of Voc | -0.34%/' C | |
| Temperature coefficient of power | -0.45%/' C | |
| Temperature coefficient of Im | +0.05%/' C | |
| Temperature coefficient of Vm | -0.34%/' C | |
| NOCT (Nominal operating cell temperature) | 47' C(+2' C) | |
| Insulation | > =100MΩ | |
| Voltage Standoff | AC2000V, DC3000V | |
| Wind Bearing | 60m/s (200kg/sq. m) | |
| Impact Resistance Hail Impact Test | 227g steel ball fall down from 1m height | |
| CONVERSION EFFICIENCY | Cell CONVERSION EFFICIENCY > 17% | |
| Quality guarantee | 5 years product warranty and 25 years 80% of power | |

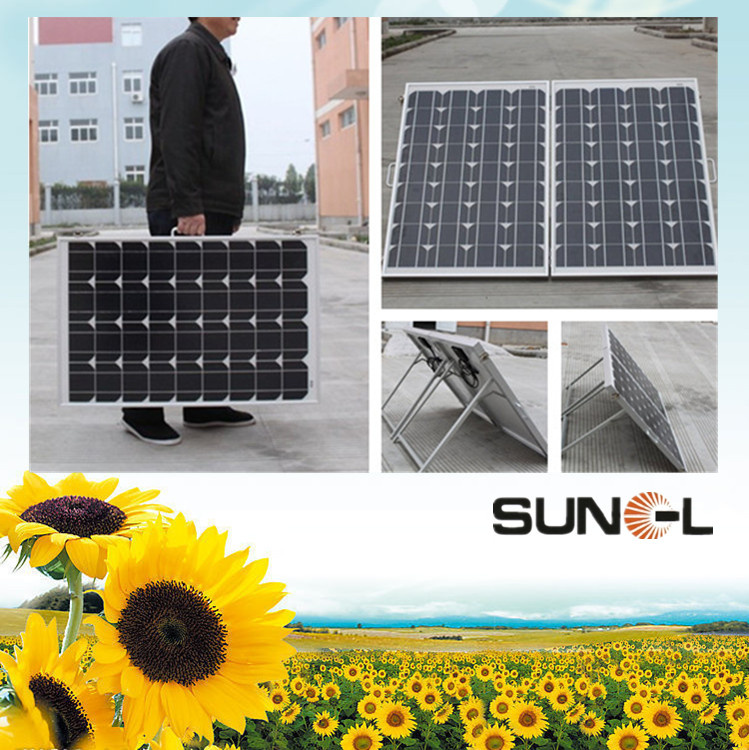

| Prod Model: | SNM-M50(36) |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Monocrystalline Silicon |
| Size: | 835*540*30mm |
| Color: | Black |
| Solar Cells: | High Transformation Efficiency |
| Glass: | Tempered Low Iron |
| Frame: | Aluminium Alloy |
| Backsheet: | Block Humidity and Oxy Effectively |
| EVA: | Highly Adhesive |
| Junction Box: | Flexible and Muti-Connecting |
| Adhesion: | Silicon Gel |
