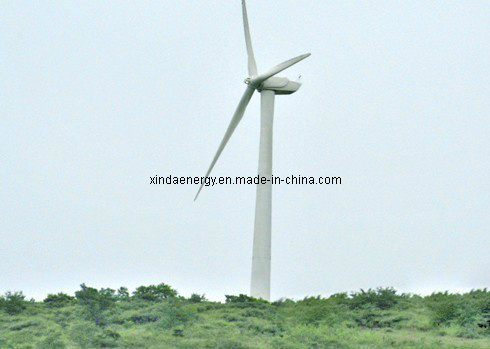

A wind turbine, which is installed on top of a tall tower, collects kinetic energy from the wind and converts it to electricity that is compatible with a home's electrical system.
In a normal residential application, a home is served simultaneously by the wind turbine and a local utility. If the wind speeds are below cut-in speed (7-10 mph) there will be no output from the turbine and all of the needed power is purchased from the utility. As wind speeds increase, turbine output increases and the amount of power purchased from the utility is proportionately decreased.
We are in the market for horizontal wind tubine from 0.1kw to 200kw
Model
| XDFZ50K
| Rotor diameter
| 18.0m
|
Blades quantity
| 3 pcs
| Blades material
| FRP (composite material)
|
Rated speed
| 120r/min
| Rated output power
| 50KW
|
Max output power
| 55KW
| Output voltage
| DC360V/AC220V
|
Start wind speed
| 3m/s
| Rated wind speed
| 12m/s
|
Working wind speed
| 4-20m/s
| Security wind speed
| 50m/s
|
Speed regulation
| yaw& magnetic resistance
| Charge control
| AIC (automatic intelligent control)
|
Wind turbine type
| PMG (onconstantmagnets)
| Working temperature
| from -40 to +60 C
|
Annual average energy production
| 75000kWh
| Recommended accumulators
| 12V200AH90PCS(12000Ah )
|
Accumulators full charge time
| about 12 hours
| Tower type
| Cone tower(optinal)
|
Tower height
| 18m (optional)
| Weight
| 1900kgs
(without tower)
|
CAN SUPPLY POWER FOR
| Little village Air-condition.. Refrigerator. water pump. electric cooker.TV.washer. Illumine.
Fanner. Charge
|
