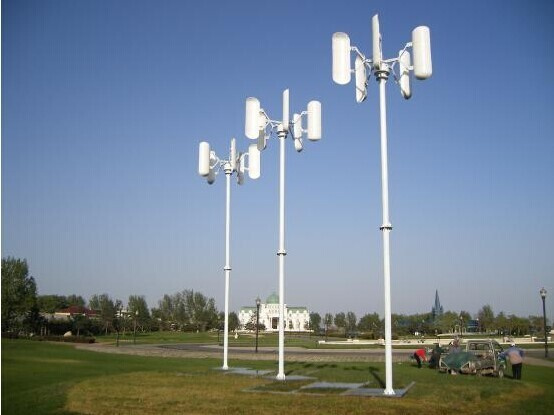

50kw Vertical Axis Wind Generator System

1.  50kw vertical axis wind turbine

Specifications
1.   micro controll
2.Low rated torgue,low request to air conditions
3.Maintenance-free
4.Passed CE
5.Delivery fast

Power	50KW
Blade diameter	15.0m
Rated rotor speed	100r/min
Rated speed	10m/s
Rated Power	50KW
Max Power	60KW
Output voltage	380V
Start up wind speed	3(m/s)
Work speed	3-30(m/s)
Security wind speed	50(m/s)
Height of tower	18(m)
Top weight except tower	2000kg
Tower type	ø450mm steel tube
Output controller system	Controller , Inverter
Suggested batteries and it's capacity	90PCS 12V200AH
Can supply power for	VILLAGE,AIR-CONDITIONER,REFRIGERATOR,WASHING MACHINE,WATER PUMP,ELECTRIC PAN, COLOR TV,LIGHTING,ELECTRIC FAN, CHARGER AND COMPUTER

The Features of our wind generator as follow:
1.Low speed permanent magnet generator
2.Low starting torque,High generating efficiency
3.Glassfibre high efficiency blades
4.Neodymium magnets and bearing with high performance
5.Pre-yaw design for tail vane
6.Designed for minimal maintenance and easy installation
7.Aerodynamic brake & manul brake

High-performance controller
1.If the system meet problems ,and the wind turbine is running ,the manual brake button will  prevent the wind turbine race rotation.
2.Our generators have the auto-protection function of  the battery over voltage protection,battery under voltage protection,battery reverse-connect protection,solar panel reverse-charge protection ,solar panel reverse-connect protection.
3.The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%  and stop charging batteries.when the charge current is high in strong wind,controller can load the wind turbine automatically and charging the battery with low current,however,the wind turbine get back charging the batteries when the battery bank voltage get to rated voltage 108%.
4.The big power controller which are from 15KW to 100KW matches the touch-type screen and it is humanization design to make the operation more convenient and intuitive to show more directly.

Pure sine wave inverter
1. It is the pure sine wave output can drive any household appliances and use integrated circuit, less wire connection.
2. We adopt the micro-processor technology, improving system integration.
3. Excellent protection includes over voltage shutdown, under voltage shutdown, over load  protection, short circuit protection, over thermal protection with high efficiency transformer instead of high frequency e-circuit design.
4. Be able to work in wind power or wind&solar hybrid system
5. Automatic regulate voltage,
6. LCD display operation status,
7. High running stability and reliability
8. True sine wave form power output
9. High efficient transformer isolation and  buzzer alarm while over-loading,over-voltage, high-temperature.
