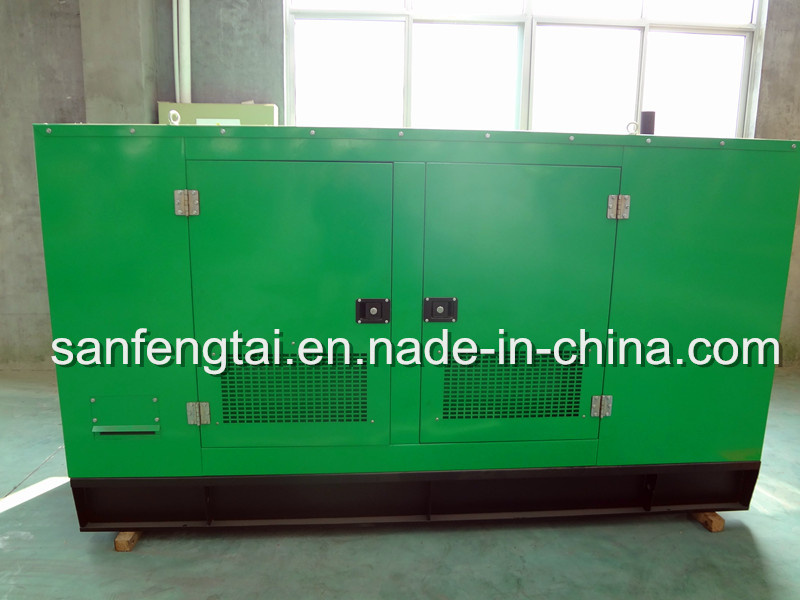

50kw Deutz Soundproof Diesel Generators(GFSD-XZ50)
High quality diesel generator/silent diesel generator/super silent diesel generator/open frame type diesel generator/50Hz diesel generator/60Hz diesel generator/single phase diesel generator/three phase diesel generator/
Genset specification:
-1. Out put range: 20kw upto 500kw
-2. General date: 230V/400V AC 50Hz/60Hz 0.8PF three phase and four wires.
-3. Cooling method: Water cooled
-4. Operation time: At least 8hours internal fuel tank
-5. Start way: Key start /Auto start
Engine Features:
1. World most famous brand diesel engine: Deutz Engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, Miindu design brushless alternators
2. Brushless, 4 poles, rotation magnet
3. IP21-23 enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1% THF < 5%, low radio interference
Control system:
-1. Display
Unit voltage, tri-phase load current and frequency display
Water temperature and oil pressure display. Fuel level and fuel temperature display
Audible and visual alarm lamps and buzzer.
-2. Optional accessory
--. AMF & ATS
--. ABB circuit breaker and 50, 52, 55 degree centigrade radiator.
--. Residential silence, water heater, oil heater and alternator space heater.
Factory Inspection, the test items before delivery are mainly as follows:
1. Each genset should be put into commission more than 4 hours totally. They are tested on idle load, fully load and 10% overload.
2. The noise level is be tested.
3. All the metres on the control panel should be tested
4. The appearance of the gensets and all of the label and nameplate shall be checked.
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers...
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9kVA to 2000kVA
|
Genset Model |
GFSD-XZ50 |
|
SET |
Genset model |
GFSD-XZ50 |
|
Output power |
50kW |
|
Power factor |
0.8(lagging) |
|
Output voltage |
400V/230V |
|
Output current |
90A |
|
Rrted Freguency |
50hz |
|
Rated Rotating speed |
1500rpm |
|
The grade of fuel |
(standard)0#light diesel (normal) |
|
Dimension |
1800*650*1450(L*W*H mm) |
|
Genset weight |
850kg |
|
Voltage Regulation steady state(%) |
≤±1 |
|
Voltage fluctuation rate(%) |
≤±0.5 |
|
Voltage regulation transient state(%) |
+20~-15 |
|
Voltage stability time(s) |
≤1 |
|
Reguency regulation steady state(%) |
≤±1 |
|
Requency fluctuation rate(%) |
≤±0.5 |
|
Requency regulation transient state (%) |
+10~-7 |
|
Reguency stability time(s) |
≤3 |
|
Fuel consumption at 100% load |
≤209g/kw*h |
|
Nose(LP7m) |
95dB(A) |
|
ENGINE |
Place of origin/brand |
DEUTZ |
|
Diesel engine model |
TD226B-5D |
|
Number of cylinders |
4/L model |
|
Bore*stroke |
105×120 mm |
|
Compression ratio |
15.5:1 |
|
Starting method |
DC24V Electrical starting |
|
Cooling system |
Closed water circulation cooling |
|
Oil way |
Direct injection |
|
Intake way |
Turbocharge |
|
Overload capacity |
110% |
|
Rotating speed |
1500rpm |
|
ALTERNATOR |
Place of origin/brand |
JiangYue |
|
Alternator model |
W224E |
|
Rated power |
50kW |
|
Rated voltage |
400V/230V |
|
Insulation class |
H class |
|
Protection class |
IP22 |
|
Connecting type |
3phase4wires Y type |
|
Accommodation type |
AVR |
|
Output frequency |
50hz |
|
Output factor |
0.8(lagging) |
