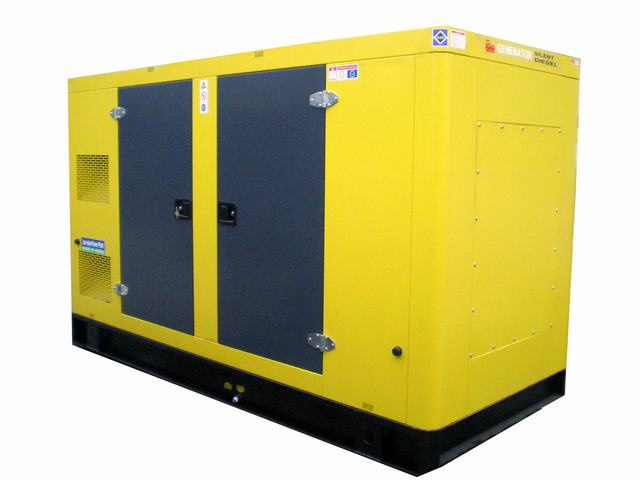

Silented High quality diesel generator prices/silent diesel generator prices list/super silent diesel generator set prices /open frame type diesel generator /50Hz diesel generator/60Hz diesel generator/single phase diesel generator set /three phase diesel generator/
Silent Generator Sets adopt advanced noise reduction technology and new sound-absorbing materials which can meet the environment requirement and conform to relevant national standards such as GB-T2820-1997. The silent Generator sets are widely used in Telecommunications, Post and Telecommunications, banking, hotel, hospital, Industrial and Mining Enterprises, etc which have strict requirements for the noise emission.
Main features:
Meet the urban environmental protection requirements, low noise emission when running;
A. Ordinary Silent Generator sets: 80dB (A) (L-P7m)
B. Super silent Generator sets: 75dB (A) (L-P1m)
C. Output range: 10KW-500KW
With good ventilation and heat radiation proof, the silent canopy ensures that the generator sets are always working in a suitable environmental temperature.
With double-layer basement, the fuel tank has large capacity which ensure the DG running at least 8 hours continuously.
High effective damping measures to keep the generator sets balance operation.
With scientific theory and human-oriented design, two doors on both side are convenient to observe and operate the operation status for the end users.
Fuel tank, coolant, battery and silencer integration make the transport and installation more convenient.
Warranty
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9kVA to 2000kVA
Cummins 50HZ(1500RPM)-3Phase 400V/230V |
MODEL |
PRIME |
STANDBY |
ENGINE MODEL |
DIMENSION (L*W*H)mm |
Technical Data |
50HZ |
KVA |
KW |
KVA |
KW |
LZYC20 |
20 |
16 |
22 |
18 |
4B3.9-G1 |
1700×730×1300 |
Download |
LZYC25 |
25 |
20 |
28 |
22 |
4B3.9-G1 |
1700×730×1300 |
Download |
LZYC30 |
30 |
24 |
33 |
26 |
4BT3.9-G1 |
1750×760×1300 |
Download |
LZYC38 |
38 |
30 |
41 |
33 |
4BT3.9-G1 |
1750×760×1300 |
Download |
LZYC40 |
40 |
32 |
44 |
35 |
4BT3.9-G1 |
1750×760×1300 |
Download |
LZYC50 |
50 |
40 |
55 |
44 |
4BTA3.9-G2 |
1800×760×1300 |
Download |
LZYC60 |
60 |
48 |
66 |
53 |
4BTA3.9-G2 |
1860×760×1300 |
Download |
LZYC63 |
63 |
50 |
69 |
55 |
4BTA3.9-G2 |
1860×760×1400 |
Download |
LZYC80 |
80 |
64 |
88 |
70 |
6BT5.9-G2 |
2150×830×1400 |
Download |
LZYC100 |
100 |
80 |
110 |
88 |
6BT5.9-G2 |
2150×830×1400 |
Download |
LZYC113 |
113 |
90 |
124 |
99 |
6BTA5.9-G2 |
2150×830×1400 |
Download |
LZYC125 |
125 |
100 |
138 |
110 |
6BTAA5.9-G2 |
2300×830×1400 |
Download |
LZYC150 |
150 |
120 |
165 |
132 |
6CTA8.3-G2 |
2320×850×1500 |
Download |
LZYC188 |
188 |
150 |
206 |
165 |
6CTA8.3-G2 |
2400×850×1500 |
Download |
LZYC200 |
200 |
160 |
220 |
176 |
6CTAA8.3-G2 |
2510×850×1600 |
Download |
LZYC225 |
225 |
180 |
248 |
198 |
6LTAA8.9-G2 |
2555×960×1650 |
Download |
LZYC250 |
250 |
200 |
275 |
220 |
6LTAA8.9-G2 |
2555×960×1650 |
Download |
LZYC250-1 |
250 |
200 |
275 |
220 |
NT855-GA |
3000×1040×1655 |
Download |
LZYC275 |
275 |
220 |
303 |
242 |
NTA855-G1A |
3000×1040×1655 |
Download |
LZYC313-1 |
313 |
250 |
344 |
275 |
NTA855-G1B |
3000×1040×1655 |
Download |
LZYC313-2 |
313 |
250 |
344 |
275 |
NTA855-G2 |
3000×1040×1655 |
Download |
LZYC350-1 |
350 |
280 |
385 |
308 |
NTA855-G2A |
3000×1040×1655 |
Download |
LZYC350-2 |
350 |
280 |
385 |
308 |
NTA855-G4 |
3000×1040×1655 |
Download |
LZYC375 |
375 |
300 |
413 |
330 |
NTAA855-G7 |
3270×1140×1800 |
Download |
LZYC400 |
400 |
320 |
440 |
352 |
NTAA855-G7A |
3270×1140×1800 |
Download |
LZYC450 |
450 |
360 |
495 |
396 |
KTA19-G3 |
3400×1360×2070 |
Download |
LZYC500 |
500 |
400 |
550 |
440 |
KTA19-G4 |
3400×1360×2070 |
Download |
LZYC563 |
563 |
450 |
619 |
495 |
KTAA19-G5 |
3600×1550×2200 |
Download |
LZYC600-1 |
600 |
480 |
660 |
528 |
KTAA19-G6 |
3600×1550×2200 |
Download |
LZYC600-2 |
600 |
480 |
660 |
528 |
KTA19-G8 |
3600×1550×2200 |
Download |
LZYC625 |
625 |
500 |
688 |
550 |
KTAA19-G6A |
3600×1550×2200 |
Download |
LZYC750 |
750 |
600 |
825 |
660 |
KTA38-G2 |
4200×1820×2250 |
Download |
LZYC800 |
800 |
640 |
880 |
704 |
KTA38-G2B |
4200×1820×2250 |
Download |
LZYC900 |
900 |
720 |
990 |
792 |
KTA38-G2A |
4200×1820×2250 |
Download |
LZYC1000 |
1000 |
800 |
1100 |
880 |
KTA38-G5 |
4400×1820×2250 |
Download |
LZYC1125 |
1125 |
900 |
1238 |
990 |
KTA38-G9 |
4400×2080×2500 |
Download |
LZYC1250 |
1250 |
1000 |
1375 |
1100 |
KTA50-G3 |
4870×2100×2500 |
Download |
LZYC1375 |
1375 |
1100 |
1513 |
1210 |
KTA50-G8 |
5620×2280×2350 |
Download |
LZYC1500 |
1500 |
1200 |
1650 |
1320 |
KTA50-GS8 |
5620×2280×2350 |
Download |
