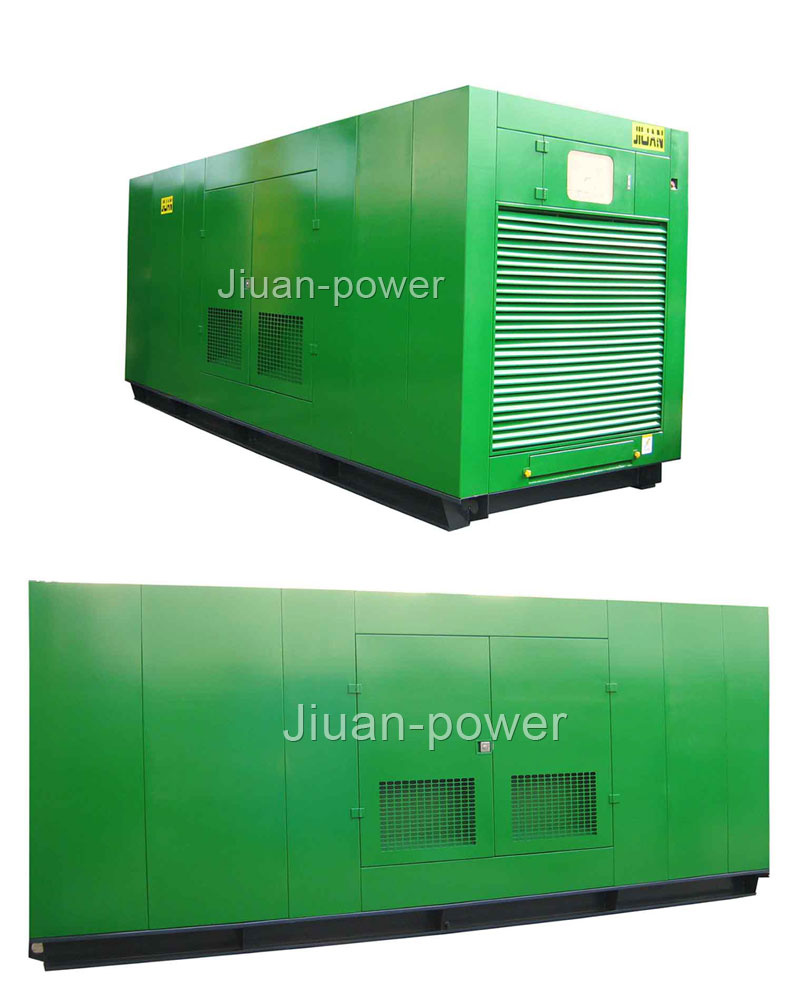

500kw Cummins Diesel Generator

500kw Cummins diesel generator

Model: CD-C 500KW (silent type)

Power by Cummins Engine

Continuous Power (50HZ): 450kw/562.5kva

Standby Power (50HZ): 500kw/625kva

Engine Model: KTAA19-G5

Max Engine Power (50HZ): 550kw

Speed: 1500rpm

Engine configuration: 6-cylinder in line. 4-strokes, exhaust gas turbocharged, direct spray fuel system.

Engine cooling mode: The radiator suitable for 40º C temperature, strap drive the cooling fan with protection cover.

Speed control system: Electricity-magnet valve control switch

Start model: 24V direct current start

Engine filter system: Dry air filter type, fuel filters, lube filter.

Engine total displacement: 18.9L

Compress ratio: 13.9: 1

Bore× Stroke: 159× 159

Specific fuel consumption: ≤ 113L/kw. H

Lubricating oil consumption: ≤ 0.85L/kw. H

Oil Capacity: 50L

Coolant Capacity: 95L

Alternator Model: Brushless 450kw

Alternator Power: 450kw/562.5kva

Rated Voltage/Frequency: 380V/220V 50HZ

Power Factors: 0.8Lag

Phase: 3-phase & 4 Line

Stable Voltage regulator: ≤ ± 3

Insulation Class/Protection Grode: H Class/IP 23

Dimension: 5800× 2000× 2400 with base fuel tank

Weight: 6000kgs
