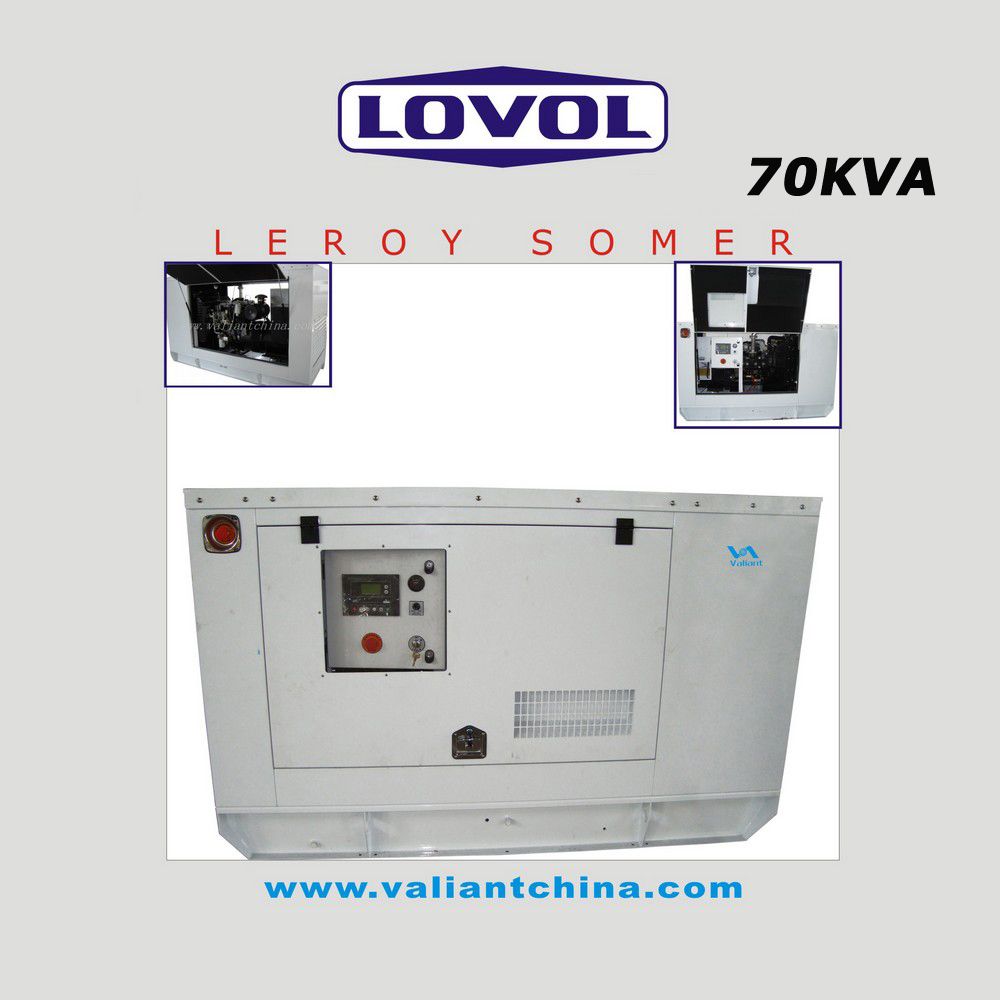

Our Engineer strongly recommend this Model! LOVOL silent type power generators
1. This Model is with High cost performance(Quality is similar with Cummins );
2. Lovol Engine, Stamford(Made in Wuxi, China)/ [Stanford(Made in Shanghai) ];
3. ISO9001: 2000 Certificate.
Model |
Prime Power |
Standby Power |
VLO48E |
38.4KW/48KVA |
42.24KW/52.8KVA
|
Power Output at Different Voltage |
Voltage
(V) |
Frequency
(Hz) |
Phase |
PF
(cos) |
Standby Current
(A) |
Prime Current
(A) |
Standby Power
(KW/KVA) |
Prime Power
(KW/KVA) |
440/254 |
50 |
3 |
0.8 |
69.28 |
62.98 |
42.24/52.8 |
38.4/48 |
400/230 |
50 |
3 |
0.8 |
76.21 |
69.28 |
42.24/52.8 |
38.4/48 |
380/220 |
50 |
3 |
0.8 |
80.22 |
72.93 |
42.24/52.8 |
38.4/48 |
220/127 |
50 |
3 |
0.8 |
138.56 |
125.97 |
42.24/52.8 |
38.4/48 |
Net Weight |
1060KG |
Net Dimensions (Silent type) |
2440× 1050× 1500(MM) |
GENERATOR |
Rated Power |
34.4KW/43KVA |
Max. Power |
37.84KW/47.3KVA |
Frequency |
50Hz |
Rated Voltage |
Optional |
Power Factor |
0.8 |
Phase |
Three |
Starting System |
Electric |
Noise Level(Dba/7M) |
80-85Db |
Fuel Tank Capacity |
225L |
Continues Runing Time |
24Hours |
|
|
|
|
|
|
|
|
ENGINE |
Brand / Model |
LOVOL/1004G |
Model Information |
Four Stroke, Liquid Cooled, Vertical Inline |
Fuel System |
Direct Injection Fuel System |
No. of Cylinder |
4 - In Line |
Bore× Stroke |
102× 127(mm) |
Piston Displacement (L) |
3.99 |
Firing Order |
1-3-4-2 |
Compression Ratio |
16.5: 1 |
Continuous Power/Speed (kW/rpm) |
40/1500 |
Overload Power/Speed (kW/rpm) |
44/1500 |
Governing rate (%) |
≤ 5% |
Dimensions LxWxH (mm) |
1261.4x706x946.2 |
Weight, Dry (kg) (engine without packing) |
540 |
Start Method |
Electric Start |
ALTERNATOR |
Brand/ Type |
Stanford / HJI34 |
Number of Phase |
3 |
Connecting Method |
3 Phase and 4 Wires, “ Y” type connecting |
Number of Bearing |
2 |
Power Factor |
0.8 |
Protection Grade |
IP23 |
Altitude Requirement |
≤ 1000m |
Exciter Type |
Brushless, Self-exciting |
Insulation Class/Temperature Rise |
H/H |
Telephone Influence Factor (TIF) |
< 50 |
THF: |
< 2% |
Steady State Voltage Regulation |
≤ ± 1% |
Alternator Capacity: |
43KVA |
Alternator Efficiencies: |
87.10% |
OPTIONAL |
Engine: Water Jacket Heater / Water Separator |
Alternator: Permanent Magnet Generator(PMG)/ Anti Condensation Heater |
Control System: Auto Control Panel / ATS / Battery Charge |
Others: Spare Parts / Tools / Daily Fuel Tank |
Quzhou Valiant Machinery Co., Ltd, an enterprise which is specialized in manufacturing and marketing solar illumination, solar and diesel generator set, possesses a certain scale of development, design and production, and owns a professional and capable technical team as well as perfect after-sale service system.
Valiant has the purpose of "innovation, brand power" in product design and development. Through the practice of continuous improvement, we have developed solar lighting, solar power products and other environment-friendly products.
Our company has independent import and export rights. Our products have been exported to Asia (Vietnam, Myanmar, Pakistan, Iraq and Lebanon), Africa (Nigeria, Kenya, Liberia and South Africa), Oceania (Australia and New Zealand), Latin America (Venezuela and Nicaragua) and Europe (Italy and Norway). With worldwide trust and praise, we have formed stable cooperative relationships with a lot of customers.
With unique management mode, distinctive corporate culture, Valiant has won good social and economic benefits. Our main products include closed (mobile) solar lighting, open-frame (mobile) solar lighting, large water-cooled generator sets, such as Cummins units, Revo (Perkins) units and Volvo units, air-cooled diesel engines 2KW-5KW and air-cooled gasoline units 1KW-7KW. In addition, our factory also provides customized models, such as (ultra) quiet units, mobile power station units and others.
Valiant, from product design, development and marketing to after-sales service, really forms the one-stop service system. We are dedicated to providing customers with high quality services.
