| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
| Model | Prime Power | Standby Power | ||||||||
| VP27E | 21.8KW/27.3KVA |
24KW/30KVA |
||||||||
| Power Output at Different Voltage | ||||||||||
|
Voltage (V) |
Frequency (Hz) |
Phases | Power Factor (cos) |
Standby Current (A) |
Prime Current (A) |
Standby Power (KW/KVA) |
Prime Power (KW/KVA) |
|||
| 440/254 | 50 | 3 | 0.8 | 39.33 | 35.75 | 24/30 | 21.8/27.3 | |||
| 400/230 | 50 | 3 | 0.8 | 43.26 | 39.33 | 24/30 | 21.8/27.3 | |||
| 380/220 | 50 | 3 | 0.8 | 45.54 | 41.4 | 24/30 | 21.8/27.3 | |||
| 220/127 | 50 | 3 | 0.8 | 78.66 | 71.51 | 24/30 | 21.8/27.3 | |||
|
Dimensions(Silent type) |
2200×950×1380(mm) | |||||||||
| Net Weight | 850kg | |||||||||
| Engine Data | ||||||||||
| Brand / Model | Perkins/404D-22TG | |||||||||
| Number of Cylinder | 4 | |||||||||
| Cylinder Arrangement | Vertical In-line | |||||||||
| Cycle | 4 Stroke | |||||||||
| Aspiration | Naturally Aspirated | |||||||||
| Combustion System | Indirect Injection | |||||||||
| Compression Ratio | 23.3:1 | |||||||||
| Bore and Stroke | 84x100mm | |||||||||
| Displacement | 2.216L | |||||||||
| Direction of Rotation | Anti-clockwise viewed on flywheel | |||||||||
| Cooling System | Water Cooled | |||||||||
| Total Coolant Capacity | 9.3L | |||||||||
| Total Lubrication | 10.6L | |||||||||
| Dimensions | 973x590x973mm | |||||||||
| Weight(Dry) | 242kg | |||||||||
| Alternator Data | ||||||||||
| Brand / Model | Stamford/PI144F | |||||||||
| Number of Phase: | 3 | |||||||||
| Connecting Method: | 3 Phase and 4 Wires, "Y" type connecting | |||||||||
| Number of Bearing: | 1 | |||||||||
| Power Factor: | 0.8 | |||||||||
| Protection Grade: | IP23 | |||||||||
| Altitude Requirement: | ≤1000m | |||||||||
| Exciter Type: | Brushless, Self-exciting | |||||||||
| Insulation Class/Temperature Rise: | H/H | |||||||||
| Telephone Influence Factor (TIF): | <50 | |||||||||
| THF: | <2% | |||||||||
| Steady State Voltage Regulation: | ≤±1% | |||||||||
| Alternator Capacity: | 27.5KVA | |||||||||
| Alternator Efficiencies: | 86.3% | |||||||||
| Optional Parts | ||||||||||
| Engine: | Water Jacket Heater / Water Separator | |||||||||
| Alternator: | Permanent Magnet Generator(PMG)/ Anti Condensation Heater | |||||||||
| Control System: | Auto Control Panel / ATS / Battery Charge | |||||||||
| Others: | Spare Parts / Tools / Daily Fuel Tank | |||||||||

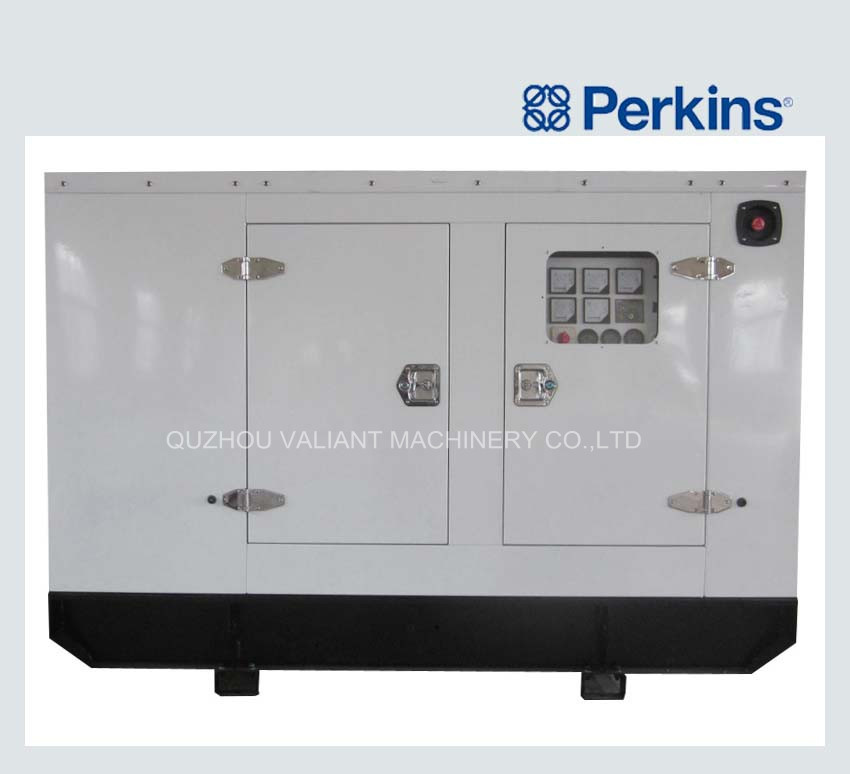

| Prod Model: | VP27E |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | SGS |
| Alternator Brand: | Stamford |
| Rated Power: | 27kVA |
| Delivery Time: | 25 Days |
| Cooling Method: | Water Cooling |
| Stroke: | Four Stroke |
| Installation Method: | Fixed |
| Type: | Self-Starting Diesel Generator |
| Output Type: | AC Three Phase |
