| Price: | Negotiable |
|---|---|
| Trade Terms: | by Sea |
| Min Order: | 1Set |
| Pay Type: | L/C,T/T |
| Model | Prime Power | Standby Power | |||||||
| VP200E | 166KW/208KVA |
183KW/229KVA |
|||||||
| Power Output at Different Voltage | |||||||||
|
Voltage (V) |
Frequency (Hz) |
Phases | Power Factor (cos) |
Standby Current (A) |
Prime Current (A) |
Standby Power (KW/KVA) |
Prime Power (KW/KVA) |
||
| 440/254 | 50 | 3 | 0.8 | 299.5 | 272.28 | 183/229 | 166/208 | ||
| 400/230 | 50 | 3 | 0.8 | 329.46 | 299.5 | 183/229 | 166/208 | ||
| 380/220 | 50 | 3 | 0.8 | 346.8 | 315.27 | 183/229 | 166/208 | ||
| 220/127 | 50 | 3 | 0.8 | 599 | 544.56 | 183/229 | 166/208 | ||
|

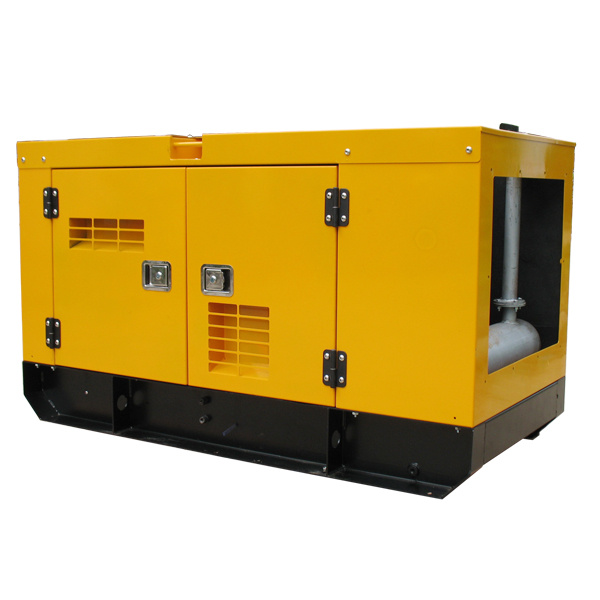

Dimensions(Silent type) |
3600×1200×2000(mm) | ||||||||
| Net Weight | 2540kg | ||||||||
| Engine Data | |||||||||
| Brand / Model | Perkins/1306C-E87TAG3 | ||||||||
| Number of Cylinder | 6 | ||||||||
| Cylinder Arrangement | Vertical In-line | ||||||||
| Cycle | 4 Stroke | ||||||||
| Induction system | Turbocharged,air-to-air chargecooled | ||||||||
| Combustion System | direct Injection | ||||||||
| Compression Ratio | 16.9:1 | ||||||||
| Bore and Stroke | 116.6x135.9mm | ||||||||
| Displacement | 8.7L | ||||||||
| Direction of Rotation | Anti-clockwise viewed on flywheel | ||||||||
| Cooling System | Water Cooled | ||||||||
| Total Coolant Capacity | 37.2L | ||||||||
| Total Lubrication | 26.4L | ||||||||
| Dimensions | 1822x875x1369mm | ||||||||
| Weight(Dry) | 895kg | ||||||||
| Alternator Data | |||||||||
| Brand / Model | Stamford/UCI274H | ||||||||
| Number of Phase: | 3 | ||||||||
| Connecting Method: | 3 Phase and 4 Wires, “Y” type connecting | ||||||||
| Number of Bearing: | 1 | ||||||||
| Power Factor: | 0.8 | ||||||||
| Protection Grade: | IP23 | ||||||||
| Altitude Requirement: | ≤1000m | ||||||||
| Exciter Type: | Brushless, Self-exciting | ||||||||
| Insulation Class/Temperature Rise: | H/H | ||||||||
| Telephone Influence Factor (TIF): | <50 | ||||||||
| THF: | <2% | ||||||||
| Steady State Voltage Regulation: | ≤±1% | ||||||||
| Alternator Capacity: | 200KVA | ||||||||
| Alternator Efficiencies: | 93.3% | ||||||||
| Optional Parts | |||||||||
| Engine: | Water Jacket Heater / Water Separator | ||||||||
| Alternator: | Permanent Magnet Generator(PMG)/ Anti Condensation Heater | ||||||||
| Control System: | Auto Control Panel / ATS / Battery Charge | ||||||||
| Others: | Spare Parts / Tools / Daily Fuel Tank | ||||||||
| Prod Model: | VP200E |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: | 1500rpm or 1800rpm |
| Frequency: | 50Hz or 60Hz |
| Output Type: | AC Three Phase |
| Cooling Method: | Water Cooling |
| Stroke: | Four Stroke |
| Installation Method: | Fixed |
| Type: | Self-Starting Diesel Generator |
