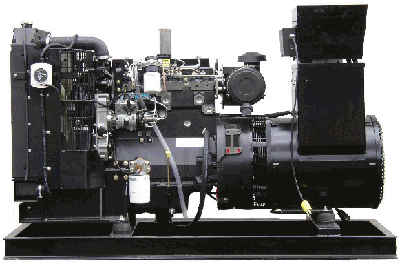

450kVA Perkins Diesel Generator Set (BPX400)

Perkins Diesel Generator
Gen set Model: BPX400
1. Diesel generator set
Continuous Output: 360kW /450kVA
Standby Output: 400kW /500kVA
Rated Speed: 1500rpm
Dimension(mm): 2980*980*1840
Genset Weight(KG): 2560kg
Fuel Consumption100% (L/H): 88.8
Noise(LP7m): 100dB

2. Egine specification
Brand: Perkins
Model No.: 2506-E15TAG1
No. Of Cylinder: 6
Aspiration: Turbocharged Inter-cooled

3. Alternator
Brand: Faraday (Leroy-somer, Marathon, Stamford and Engga optional)
Model No.: FD5S-4
Wiring Methods: 3 Phases and 4 wires
Output Frequency: 50Hz

4. Control System
Brand: Deepsea from England
Model: Deepsea DSE7320

Generator set
Manufacturer: Binshi Power
Original: China
Engine Brand: Perkins
Alternator brand: Enger(Leroysomer, Marathon is available)
Noise Level(7m): 100dB
Frequency: 50Hz/60Hz
Certification: ISO, CE, TL,
Power Factor: COSΦ =0.8(lagging)
Phase/Wires: 3 phase 4 wires
Aspiration: Turbocharged / Air-air inter-cooling
Start mode: DC24V electric start
Fuel: 0# light diesel
Frequency fluctuation: ≤ ± 0.5 %
Voltage distortion: <4%
Protection: IP23
Voltage control: AVR

Genset Features:
High Fuel Efficiency: Fewer Fuel Consumption at Leading Level
The Turbocharger with Waste Gated Design: The Torque Curve Resulting in Excellent Low-End Torque.
Compacted Yet Durable and Dependable Engine: Perkins Engines Contain up to 40% Fewer Parts
Advanced Design and Manufacturing: Perkins Engine with great Performance and Lower Cost Excellent Cold Start Performance: Optional Assistant Cold Starter with Improved 6.6kw Starter and Intake Air Heater.
Excellent Performance and Advantage: Adopt Advanced Design to Achieve Higher Horsepower and Lower Weight.

Features of perkins engines and diesel generator set:
Type: Open type/silent type
Frequency: 50Hz/60Hz
Alternator: Engga, Marathon, Leroy-somer
Controller: Deepsea 5110, Deepsea 52520/GBS-820
Compact genset, high reliability, low maintenance cost, long serve time
Excellent damping performance: Computer-based simulation of the dynamic damping system optimized
Environmental protecting: Energy-saving and low-emission diesel generator set
Low nose: Customerized muffler exhaust system

Features of perkins engine:
Four strokes, fan radiator, turbocharger, inlet-cooling air intake
Energy-saving, low-emission, low noise, compact structure, high reliability
Whole ssuspension seismic design, excellent seismic reducing effect

BS POWER DIESEL GENERATOR SET
50HZ 1500rpm   400/230V
PERKINS        ENGGA
Genset Model	KVA		KW		Engine Model (PERKINS)		Cyl.	Displacement   (L)		Alternator Model (Engga)		Maximum Current(A)		Fuel cons.100% (L/H)	Net weight (kg)	Dimensions (L x W x H)  MM
	Prime	Standby	Prime	Standby												Open Type		Silent Type
BPX33	30	33	24	26	1103A-33G		3L	3.3		EG160-24N		48		7.1	827	750x650x1250		2200x1000x1600
BPX50	45	50	36	40	1103A-33TG1		3L	3.3		EG225S-40N		72		10.7	934	750x650x1250		2200x1000x1600
BPX66	60	66	48	53	1103A-33TG2		3L	3.3		EG225S-50N		95		13.9	954	750x650x1252		2300x1100x1600
BPX88	80	88	64	70	1104A-44TG2		4L	4.4		EG225M-60N		125		18.7	1089	750x650x1253		2500x1100x1600
BPX110	100	110	80	88	1104C-44TAG2		4L	4.41		EG225M-70N		159		22.6	1149	2000x650x1254		2800x1100x1600
BPX150	135	150	108	120	1006TAG		6L	5.99		EG225L-80N		216		31.5	1504	2350x700x1450		3000x1100x1850
BPX165	150	165	120	132	1006TAG2		6L	5.99		EG225L-100N		238		41	1575	2350x750x1450		3100x1100x1900
BPX200	180	200	144	160	1106C-E66TAG4		6L	6.6		EG225L-120N		288		44.6	1685	2350x750x1450		3100x1100x1900
BPX220	200	220	160	176	1306C-E87TAG3		6L	8.7		EG280M-160N		317		49.1	1988	2660x900x1500		4000x1300x1900
BPX250	227	250	184	200	1306C-E87TAG4		6L	8.7		EG280L-180N		360		50.3	2083	2800x1000x1600		4200x1400x2000
BPX275	250	275	200	220	1306C-E87TAG6		6L	8.7		EG280L-200N		397		55.6	2113	2800x1000x1600		4200x1400x2000
BPX385	350	385	280	308	2206C-E13TAG2		6L	12.5		EG315M-280N		556		84	3289	3070x1000x1170		4500x1400x2200
BPX440	400	440	320	352	2206C-E13TAG3		6L	12.5		EG315M-320N		635		92	3498	3150x1150x1780		4700x1500x2200
BPX500	454	500	360	400	2506A/C-E15TAG1		6L	15.2		EG315L-360N		721		99	3876	3500x1150x1780		5300x1500x2200
BPX550	500	550	400	440	2506A/C-E15TAG2		6L	15.2		EG315L-400N		794		106	3985	3750x1150x2000		5800x1500x2500
BPX650	590	650	470	520	2806C-E18TAG1A		6L	18.1		EG355L-500N		939		129	4767	4069x1536x1958		6100x2000x2500
BPX700	650	700	520	560	2806A-E18TAG2		6L	18.1		EG355L-500N		1010		132	4777	4100x1550x2000		6200x2000x2500
BPX800	725	800	580	640	4006-23TAG2A		6L	22.9		EG355L-600N		1154		157	6278	3800x1700x2300		6000x2300x2800
BPX880	800	880	640	704	4006-23TAG3A		6L	22.9		EG400S-640N		1270		175	6318	3800x1750x2350		6000x2360x2800
BPX1100	1000	1100	800	880	4008TAG2A		8L	30.6		EG400L-800N		1587		194	8892	5100x1950x2500		8300x2500x3000
BPX1375	1250	1375	1000	1100	4012-46TWG2A		12V	45.8		EG400L-1000N		1984		258	11716	5100x2280x3050		8300x2600x3600
BPX1656	1505	1656	1204	1325	4012-46TAG2A		12V	45.8		EG400L-1200N		2390		281	12428	4950x2280x3050		8000x2600x3600
BPX1875	1705	1875	1364	1500	4012-46TAG3A		12V	45.8		EG400L-1350N		2706		370	13664	5450x2280x3150		9000x2800x3800
BPX2028	1844	2028	1476	1622	4016TAG1A		16V	61.1		EG500M-1600N		2927		383	13808	5450x2280x3150		9000x2800x3800
BPX2250	2000	2250	1646	1800	4016TAG2A		16V	61.1		EG500M-1600N		3247		434	15331	5450x2280x3150		9000x2800x3800
BPX2475	2058	2475	1800	1980	4016-61TRG3		16V	61.1		EG500L-1800N		3608		473	16950	5450x2280x3150		10000x2900x3800
