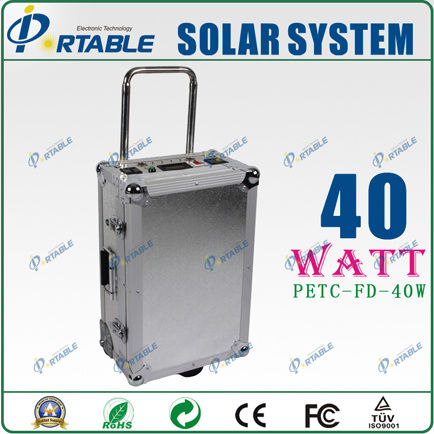

40W Portable Solar System/Home Use/Energy Generator(PETC-FD-40W)
40W residential small solar electric power system With pull rod and wheel
This solar power system includes Solar cell modules, special solar battery, solar controller, solar power generator systems etc. Pollution-free, energy-saving, protecting environment, free maintenance and less restriction, with low Failure Rate, easily assembling and carring, convenient using, Its llifespan can reach above 20 years, a variety of charging ways complementary, solar \AC and DC all can charge for the system, one time investment, long-term benefits. It can be applied to the villa, housing, outdoors\tourist resorts, prairie areas, remote mountain village, mountain island, household, farms, villages, farm, hills, island, highway and any regions to generate electricity.
40W residential small solar electric power system
Characteristics: The system has high conversion of silicon solar panel, high euphotic rate and mechanical strength, good resistance to climate, preventing wind, hail. Which can effectively resist corrosion of moisture and salt fog, and can produce high efficient power and energy.
1.40W Solar Light Kit in Portable Design for Home
2. Solar inverter: 150W
3. Controller: 10A
4. Battery: 36AH
5. Built-in relay
Solar System 40W solar system with cheap price form China, 2013 hot porduct
Feature:
The system is a small AC Power Supply System which is designed for the farmers, herdsmen, outdoor camping, tourism etc. Easy to operate, convenient to carry. Controller, Inverter and battery are storage in control box.
When battery is full, it can support 50W fan working more than 6hours.
Speecification:
1) Solar Panel: 2*20W, working voltage: 18V
2) Battery: 12V/36Ah
3) Inverter: Input DC12V; Output 220V/150W
5) Controller: 10A
DC: Output will stop when the voltage of battery is less than10.5V(Red indicator light turn on). When it reaches 12.6V, it works again (red indicator light turn off)
AC: Output will stop when the voltage of inverter and battery is less than10.5V(Switch indicator light turn off). When it reaches 12.6V, it works again (Switch indicator turn on)
6) Working time: (DC)support 2*9W/12V lamps to work 13.5 hours
(AC) support 10W-100W appliance to work about 31-3hours
The above information is only for reference. Our R&D team can design the system according to the local natural resources and customers specific requirements.
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
mono/polycrystalline |
20W |
2pcs |
|
solar battery |
Sealed lead-acid |
12AH |
3pcs |
|
solar control system |
Controller |
10A |
1pc |
|
inverter |
150W |
1pc |
|
control box |
|
1pc |
|
output |
AC 100~220V |
|
1pc |
|
DC 12V |
12V/10A |
2pc |
|
AC Charge |
AC86V~260V |
15V/5A |
1pcs |
|
PRODUCT SIZE(CM) |
L50*W33*H22CM |
|
Packing(CM) |
1PC/Carton: L55*W38*H27CM |
|
Wooden case:55*38*27 12KG |
|
pull rod and wheels(options) |
|
|
N.W/G.W(KG/PC) |
21KG/23KG |
This system can support:
|
Design load appliances |
Model |
Load Power |
Quantity |
Working Hours/Day |
Power Consumption/Day |
Continued Working Days |
|
Lighitng |
Fluorescent lamp |
40W |
2 |
2 |
160WH |
2Days |
|
Color TV |
21 Inch |
60W |
1 |
2 |
120WH |
2.6Days |
|
Laptop |
SAMSUNG R528 |
60W |
1 |
2 |
120WH |
2.6Days |
|
Printer |
Inkjet |
30W |
1 |
0.5 |
15WH |
20.8Days |
|
Fax |
Inkjet |
150W |
1 |
0.5 |
75WH |
4Days |
|
Satellite TV Receiver |
|
25W |
1 |
2 |
50WH |
6Days |
|
Fan |
Haier |
50W |
1 |
2 |
100WH |
3Days |
|
Radio |
SONY ICF-B100 |
3W |
1 |
6 |
18WH |
17Days |
|
Mobilephone |
iPhone 3GS |
2.5W |
2 |
8 |
40WH |
7.8Days |
|
Intercom |
MOTO |
7.5W |
1 |
6 |
45WH |
7Days |
|
Stallite Phone |
MOTO |
12W |
1 |
2 |
24WH |
13Days |
|
GPS |
|
4W |
1 |
4 |
16WH |
19Days |
