| Price: | US $ 600-50000/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

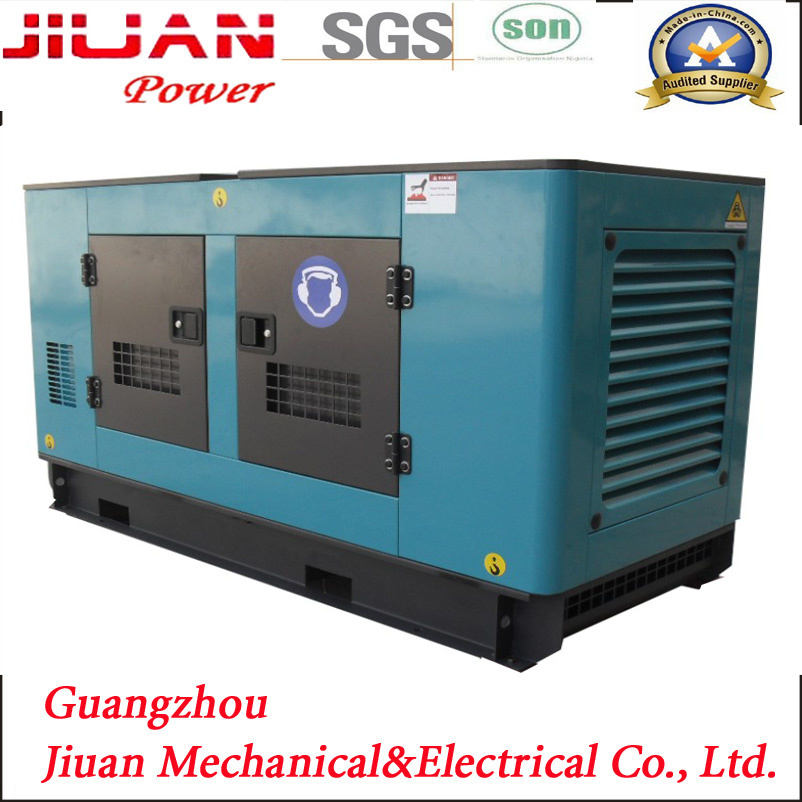

| 40kva Silent generator | ||
| Generator Specifications | Generator Model | CDC32KW/40KVA |
| Generator Prime Power | 32KW/40KVA | |
| GeneratorStandby Power | 34KW/42.5KVA | |
| Generator Alternator | Stamford;Marathon; | |
| Canopy for Choice | Silent, super silent | |
| Controller | Smartgen | |
| Dimensions (L*W*H) | 2300*1000*1400(S) 2600*1100*1650(Super Silent) | |
| 20FT/40HQFT Container | 2PCS/4PCS | |
| Generator Warranty | 1800 hours or 1 year subject to the earlier one. | |
| Generator MOQ | 1PCS | |
| Certificate | SGS;Cummins Authorized Factory;TUV;Soncap | |
| Payment | T/T or Cash | |
| Please give detail needs in your inquiry, so that we can make power solutions for you. | ||
| MODEL | CD-C32KW/40KVA |
| Powered by Cummins Engine | |
| Prime Power (50HZ) | 32KW/40KVA |
| Standby Power (50HZ) | 34kw/42.5KVA |
| Power Factor | 0.8 (Lagging) |
| Phase Wires | 3-phases 4-Wires |
| Start Model | Electric |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
| Engine Model | DCEC Cummins 4BT3.9-G2 4 Cycle |
| Cylinders | 4 |
| Cylinder Arrangement | L |
| Bore x Stroke(mm) | 102X 120 |
| Compression Ratio | 16.5:1 |
| Speed | 1500rpm |
| Cooling Method | Water – cooled |
| Starting Method | 24V DC electrical start |
| Full Load Diesel Consumption (L/H) | 9 |
| Engine Displacement (L) | 3.9 |
| Inspiration (L) | Natural |
| Lube Volume (L) | 9.5 |
| Coolant Volume (L) | 20 |
| Noise (Db) | ≤ 80 |
| Alternator Model | Newage Stamford PI144J or Leadtech LTG224BA |
| Alternator Power | 32KW/40KVA Brushles with AVR |
| Voltage | 380/220V,400/230V,415/240V,220/127V |
| Protection | IP23 |
| Voltage Regulation | ±4% |
| Insulation Class | H |
| Voltage Control | AVR |
| Net Weigh (KGS) | 950 |
| Dimensions (L x W x H) mm | 2300*1000*1400(S) 2600*1100*1650(Super Silent) |
| Controller | Smartgen 6110 or Deepsea 7320 |
| Standard | Muffler * 2PCS |
| Battery 80A * 2 PCS | |
| Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) | |
| Trailer | |
| Prod Model: | CDC40KVA |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Generator: | Kabota Generator Parts |
| Generator Engine: | 4bt3.9-G2 |
| Alternator Model: | Stamford |
| Generator Controller Brand: | Smartgen |
| Generator Cylinders: | 4 |
| Generator Noise: | Low Noise |
| Cooling Method: | Water Cooling |
| Stroke: | Four Stroke |
| Installation Method: | Fixed |
| Type: | Basic Diesel Generator |
| Output Type: | AC Three Phase |
