400W Mini Wind Generator

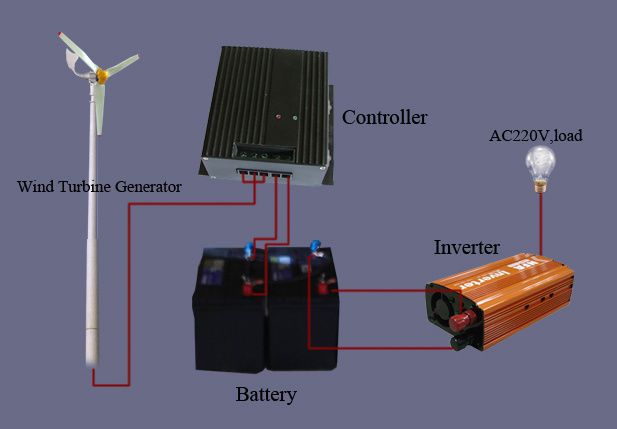

Introducing WFD400W-B, a 400W wind generator with beautiful shape, safe, portable and reliable. It is a small wind turbine with 1.5 m diameter rotor and can be used on land or on larger vessels. WFD400W-B is used to charge 12V or 24V battery systems. It includes a 400W battery charge controller regulator which will auto brake the turbine and stop charging when the batteries are charged full.
WFD400W-B is low noise because it runs slowly, only 600rpm. The Auto brake function will slow down the turbine down in high winds, reducing noise and mounting system loads.
|
Model |
WFD400W-B |
|
RATED POWER |
400W |
|
MAX POWER |
500W |
|
OUTPUT DC VOLTAGE |
24V, 36V or 48V |
|
START WIND SPEED |
3 m/s |
|
RATED WIND SPEED |
11 m/s |
|
SURVIVAL WIND SPEED |
40 m/s |
|
Cut-Out Wind Speed |
14 m/s |
|
TemperatureRange |
-40 to +60 Deg. C |
|
ROTOR Diameter |
1.50 m |
|
Swept Area |
1.766 m 2 |
|
Rotor speed |
600rpm |
|
Blade material |
ABS engineer plastic |
|
Height of tower recommended |
6 m |
|
Generator |
3 phase Neodymium permanent magnet alternator |
|
Rotor thrust(at 20 meters/second) |
140 Newton |
|
Noise |
Max 5-8 dBA above background |
|
Turbine Weight(kg) |
11 |
|
Packing |
One carton, size: 90 x 40 x 21, weight 18 kg |
