Rooftop 1kw grid-tie wind generator
If you live in an urban or suburban area, consider our unique rooftop wind turbine. 6 small, light 500W wind turbines grouped to form a 3kw grid tie wind generator system. It is designed to be installed on the rooftops of city buildings. And it is low cost!

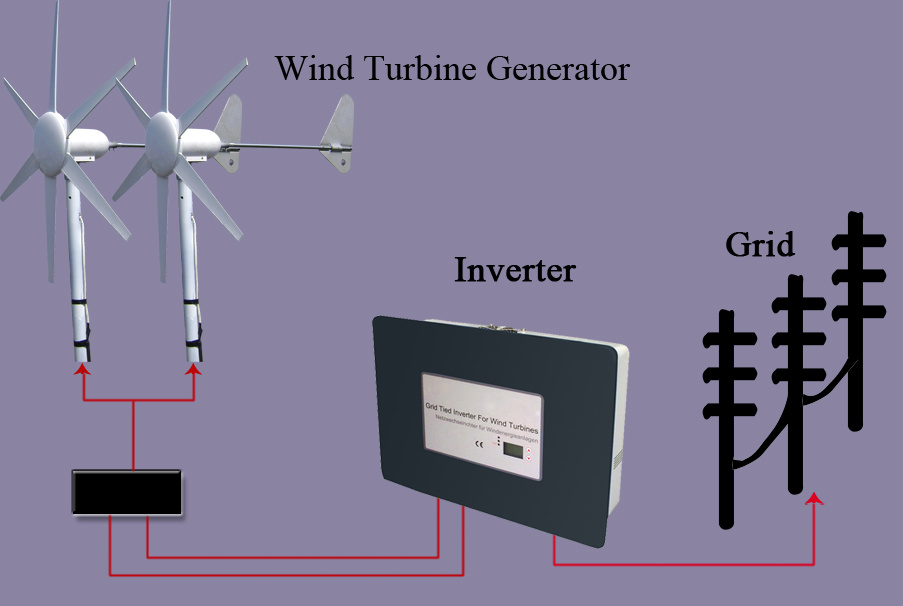

This system consists of 2 piece of 500W rooftop wind turbine fdl1.0-500, and a 2kw grid tie inverter
It is designed for homeowners looking for a quiet, convenient, affordable way to protect themselves from ever increasing electricity costs. It includes wind generator, controller with dump load and grid tie inverter. With no batteries, wfd3kw-c connects directly to your home. When the wind is blowing, your home is powered (in part or whole) by wfd1kw-c; When it's not, your home is seamlessly powered by your utility as usual...If the wind speed is too large, part of the dump load will be connected to the wind turbine to keep the constant power to fed in the utility grid
|
Model |
FDL1.0-500 |
|
Rated Power |
500W |
|
Max Power |
550W |
|
Voltage Options |
24V, 48V, 60V or grid tie |
|
Start Wind Speed |
2.5m/s |
|
Rated Wind Speed |
9 m/s |
|
MAX WIND SPEED |
40m/s |
|
Cut-Out Wind Speed |
None |
|
Blade Pitch Control |
None, Fixed Pitch |
|
Gearbox |
None, Direct Drive |
|
TemperatureRange |
-40 to +60 Deg. C |
|
Rotor Diameter |
1.0 m |
|
Rotor speed |
500 rpm |
|
Blade number |
6 |
|
Blade material |
ABS molded |
|
Generator |
3 phase Neodymium permanent magnet |
|
Turbine Weight(kg) |
12 |
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.
As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
