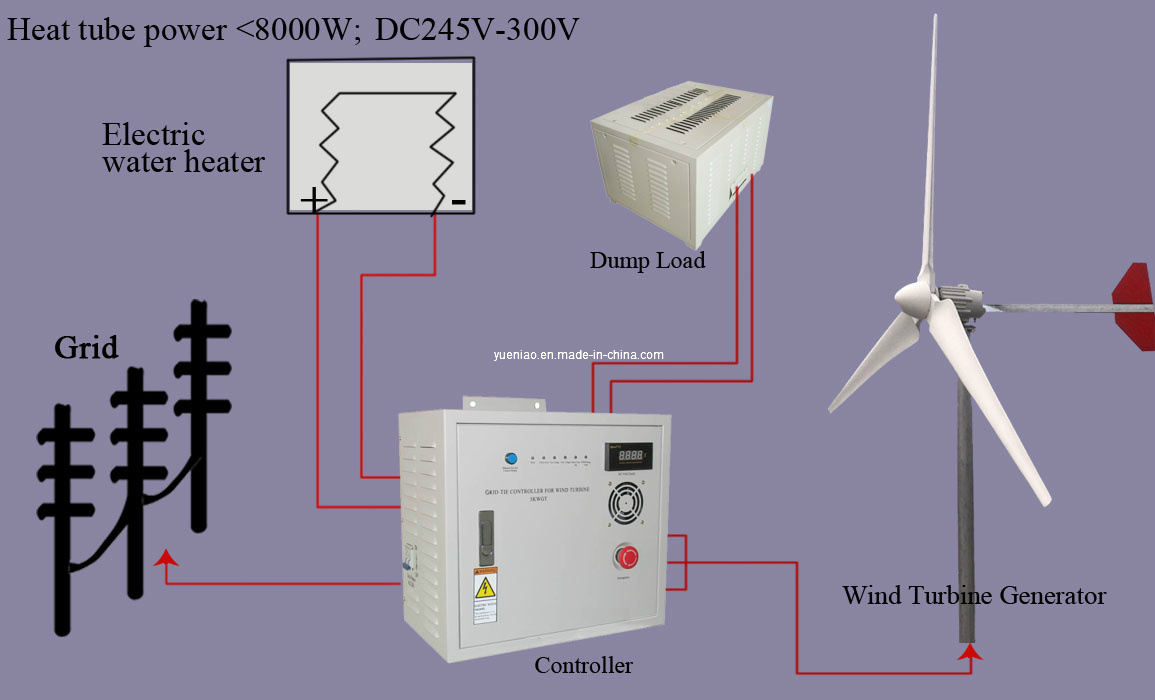

8KW Wind Generator Heating System H8000
The H8000 is a wind generator for heating. Use of the H8000 wind generator is completely automated, therefore no additional steps are required to operate it.
H8000 has been designed to last against even the most extreme weather conditions and its maintenance need is low. Small wind generator rotor has been optimized to produce well at low wind speeds. The generator can be located up to 250m from the place of use without significant loss during power transfer.
Benefits of the H8000:
Quality, safety and ease of use with a 2 year guarantee
Outstanding efficiency
H8000 delivery includes
8KW wind generator
Guyed 12 meter tower
Controller
Ground cable 30 meters
|
Model |
WFD8KW |
|
Rated Power |
8 KW at wind speed 10m/s |
|
Kilowatt Hours Per Month |
1, 080 kWh/month /average 5.8m/s |
|
Max Power |
10 KW |
|
Voltage Options |
120V, 240V& Grid Tie |
|
Start Wind Speed |
3 m/s |
|
Rated Wind Speed |
10 m/s |
|
MAX WIND SPEED |
45 m/s |
|
Cut-Out Wind Speed |
13 m/second |
|
Blade Pitch Control |
None, Fixed Pitch |
|
Over speed Protection |
Side furling with gravity return |
|
Temperature Range |
-40 to +60 Deg. C |
|
Rotor Diameter |
5.80 m |
|
Swept Area |
26.41 m 2 |
|
Rotor speed at 8KW power |
250 rpm |
|
Blade number |
3 |
|
Blade material |
Reinforced fibreglass |
|
Rotor thrust(at 20 meters/second) |
5, 500 Newton |
|
Generator |
3 phase Neodymium permanent magnet |
|
Noise |
Max 5-8 dBA above background |
|
Tower Top Weight |
220 kg |
Suzhou Yueniao Machinery & Electronics Imp & Exp Co., Ltd. is one of the pioneer renewable energy business and has been in this field since 2002. We are dedicated exclusively to the business of small wind generator, mini hydroelectric generator and solar energy.
As a manufacturer with advanced technology, we are making in our own workshop the wind turbine from 300W to 20kw with CE certificates. Beside that we are dealing with business of mini hydroelectric generator from 200W up to 60KW and solar panel from 20W to 280W.
We do not claim any of its products to be the best, but we are proud to hear the owners of our products praise them. And that is what makes all the time and effort we spend on our products worthwhile.
Thank you for your support!
