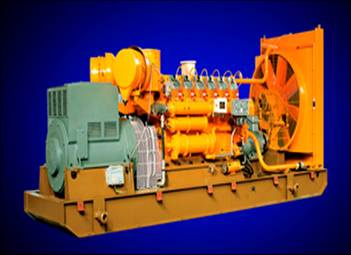

400kw natural gas generator
1. Automatic alarm system
2. Operation display
3. Reasonable price
Main specification
Model of gener-ating sets Model of gas engine Model of Generator Rated power(kW/kVA) Rated volt-agte(V) Rated frequ-ency(Hz) Startingmethod Controlmethod Overall dimensionLxBxH(mm) Packing dimensionLxBxH(mm) Net weight(kg)
400GF 12V190DT2-2 1FC4 456-6TA42 400/500 400/230 50 24VDC electric starting Auto /manual control 5520x2110x2739 6190x2110x2800 11800
400GF-TK 12V190DT-2 1FC6 456-6TA42 400/500 400/230 50 4566x2040x2202 4817x2040x2950 10700
400GF-TK1 12V190DT1-2 1FC4 456-6TA42 400/500 400/230 50 5120x2040x2202 5240x2040x2880 10700
Note: Generator can be selected according to customer's need or actual production.
Main electrical performance data
Voltage Freguency
Stable regulating rate Instantaneous regulating rate Recover time Fluctuation Stable regulating rate Instantaneous regulating rate Recover time Fluctuation
± 2.5% +20% -15% 1.5s 0.5% 5% ± 10% 7s 0.5%
Voltage adjustment range: Idle load voltage adjusted 95~105% rated voltage
Control panel
Control panels for natural gas generating sets are used to control the electric energy transporting of generating set. They have the functions of under-voltage, overcurrent, auto speed governing and reverse power protections etc. Meanwhile, they can monitor the speed, water temp, oil temp, oil pressure and exhaust temp of the engine. And also they are fitted with sound and light alarm devices.
Model of generating sets |
400GF-TK1 |
Model of engine |
12V190DT3-2 |
Model of alternator |
1FC6356-4LA43 |
Rated capacity |
500KVA |
Rated power |
400KW |
Continuous power |
320KW |
Rated speed |
1000 r/min. |
CH4 Requirement |
≥ 70% |
H2S Requirement |
≤ 15ppm |
Gas pressure |
80-200kpa |
H2O |
no liquid state water vapour in natural gas |
Rated voltage |
400/230V |
Rated frequency |
50Hz |
Rated power factor |
0.8 |
Supply method |
3 phases 4 lines |
Excitation method |
Brushless |
Starting method |
24V DC starter 24V or Air motor |
Cooling method |
Half-opened(with heat exchanger) |
Speed modulate method |
Electronic control |
Net weight |
11800kg |
Overall dimension L× B× H(mm) |
5120× 2040× 2780 (mm) |
Main electrical performance data
Voltage |
Stable regulating rate |
± 2.5% |
Instantaneous regulating rate |
≤ ± 20% |
Recovery time |
≤ 2s |
Fluctuation |
≤ 1% |
Frequency |
Stable regulating rate |
0~5% |
Instantaneous regulating rate |
≤ ± 10% |
Recovery time |
7s |
Fluctuation |
≤ 1% |
Main technical data of engine
Model of engine |
12V190DT3-2 |
Rated power/speed |
450KW/1000rpm |
Specific oil consumption |
≤ 1.5g/KW. h |
Number and layout of cylinders |
12 cylinder 60° V style |
Type |
Four stroke, water cooled, spark plug ignition |
Bore |
190mm |
Stroke |
210mm |
Total displacement |
71.5L |
Compression ratio |
10: 1 |
Direction of rotation (facing to end) |
Counter-Clockwise |
Lubricating method |
Pressure and splash lubrication |
Jinan Guohua Green Power Equipment Co., Ltd. was established in 2010 and is a professional manufacturer engaged in the research, development, production, sale and service of gas generators and diesel generators with different power ranges. We are located in the beautiful city of spring - Jinan, Shandong Province, China, and have convenient transportation access.
Taking combustible gas as the fuel for engine can solve the electricity and power problems in the area with rich combustible gas, and also reduce the pollution of directly venting combustible gas into atmosphere. To meet the market requirement, we develop several series of gas engines and generating sets based on self experience, professional qualification as well as absorbing world advanced technology and sophisticated experience. The gas engines include series 190 with 4 cylinders, 6 cylinders, 8 cylinders and 12 cylinders, and series 135 with 4 cylinders, 6 cylinders and 12 cylinders. The engines can be divided into outer mixing, mechanical inner mixing, electronic inner mixing, electronic lean-burnt, etc. Engine power range is from 8kw to 1500kw. The fuel gas includes natural gas, coke oven gas, biogas, coal mine gas, refinery gas and so on, which can meet the utilizing requirements of different areas and different gas compositions. Now our products are widely used as generating sets, compressor sets and other power take-off sets in the areas with rich fuel gas, for example oil fields.
