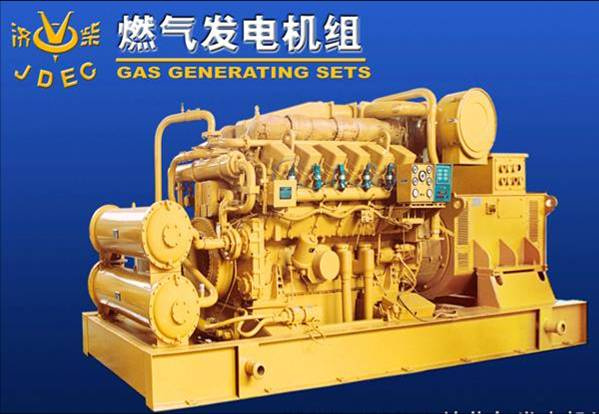

500kw/400kw Coal gas generator sets
1. Coal Gas Generating Set
2. Safe and high-efficient
3. Low fuel cost
Technical Specs and Technical Performances of Gas Generator Sets
Set model 500GF-MK1 400GF-MK1
Engine model 12V190ZLM 12V190ZLM-2
Generator model 1FC6456-6LA42 1FC5454-6TA42
Excitation Brushless phase compound excitation(three-phase four-wire)automatic voltage regulation, F class insulation
Rated power 500 kW 400 kW
Rated voltage 400 V
Rated rpm 1500 r/min 1000 r/min
Rated current 918A 903A
Power factor 0.8(lag)
Starting mode 24DC starting
Cooling water circulation system Open type with heat exchanger
Overhaul time ≥ 18000 h
Overall dimensions 5120× 2040× 2249 mm
Weight 12000kg
Main Technical Parameters of Gas Engines
Model 12V190ZLM 12V190ZLM-2
Code 1812M 1812CM
Type 4 strokespark ignitionwater-cooledturbochargedinlet air coolingmechanical inter-mixed
Arrangement of cylinders V shape60° Angle
Number of cylinders 12
Diameter of cylinders 190mm
Stroke 210mm
Gas pressure 150-200kPa
Rated rpm 1500 r/min 1000 r/min
Idle speed 700 r/min 600 r/min
Rated power 600 kW 500 kW
Heat consumption ≤ 11200 kJ/kw@h
Oil consumption ≤ 1.6g/kw. H
Oil type Great wall SE40 or Mobil Pegasus705
Cooling system Pressurized water cooling
Lubrication mode Pressure and spray lubrication
Exhaust temperature ≤ 650(before entering turbine)
Overall dimensions L× B× H 2670× 1588× 2366 mm
Net weight 5600kg
Jinan Guohua Green Power Equipment Co., Ltd. was established in 2010 and is a professional manufacturer engaged in the research, development, production, sale and service of gas generators and diesel generators with different power ranges. We are located in the beautiful city of spring - Jinan, Shandong Province, China, and have convenient transportation access.
Taking combustible gas as the fuel for engine can solve the electricity and power problems in the area with rich combustible gas, and also reduce the pollution of directly venting combustible gas into atmosphere. To meet the market requirement, we develop several series of gas engines and generating sets based on self experience, professional qualification as well as absorbing world advanced technology and sophisticated experience. The gas engines include series 190 with 4 cylinders, 6 cylinders, 8 cylinders and 12 cylinders, and series 135 with 4 cylinders, 6 cylinders and 12 cylinders. The engines can be divided into outer mixing, mechanical inner mixing, electronic inner mixing, electronic lean-burnt, etc. Engine power range is from 8kw to 1500kw. The fuel gas includes natural gas, coke oven gas, biogas, coal mine gas, refinery gas and so on, which can meet the utilizing requirements of different areas and different gas compositions. Now our products are widely used as generating sets, compressor sets and other power take-off sets in the areas with rich fuel gas, for example oil fields.
Dedicated to strict quality control and thoughtful customer services, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment, including ABB robot assembly lines.
Our main products are natural gas generators, biogas generators, gas generators and diesel generators, with such brands as JiChai, Volvo and Cummins. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Western Europe, South America, Southeast Asia, Africa, etc. We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Jinan Guohua Green Power Equipment Co., Ltd a subsidiary of JDEC(Jinan Diesel Engine Co., Ltd. ). Jinan Diesel Engine Co., Ltd(JDEC) is the only internal-combustion engine manufacturing enterprise belonging to China National Petroleum Corporation(CNPC). It is also the main manufacture of off-highway medium&large power engine in China. At present, it covers area 600, 000square meter and has more than 2000 employees. The total asset is more than 800 million. In 1995, JDEC got the CCS(China Classification Society) ISO 9001 Quality System Approval. In 1996, it was listed in Shenzhen Stock Exchange as Shiyoujichai.
