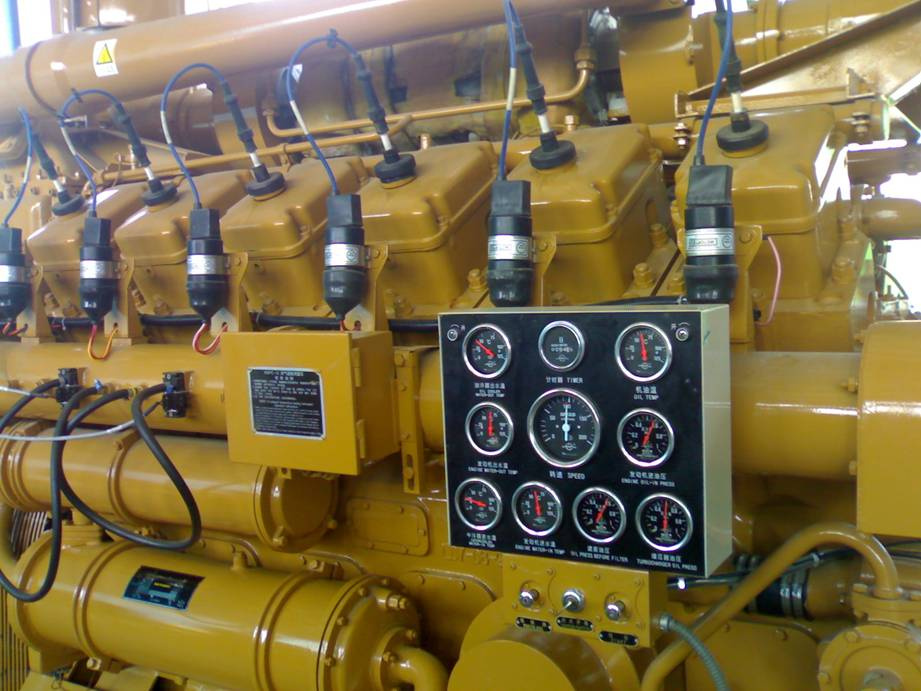

1200kw natural gas generator
1200GF-T
Main technical specification of Natural gas gensets
Model of generating sets 1200GF-T
Model of engine H16V190ZLT-2
Model of alternator 1FC6506-4LA42
Rated capacity 1500kVA
Rated power 1200KW
Continuous power 1000KW
Rated speed 1200 r/min.
CH4 Requirement ≥ 70%
H2S Requirement ≤ 15ppm
Gas pressure ≥ 7kpa
H2O no liquid state water vapour in natural gas
Rated voltage 230/110V
Rated frequency 60Hz
Rated power factor 0.8
Supply method 3 phases 4 lines
Excitation method Brushless
Starting method 24V DC starter 24V or Air motor
Cooling method Closed
Speed modulate method Electronic control
Net weight kg 21000kg
Overall dimension L× B× H(mm) 7150× 2180× 2421(mm)
Main technical data of engine
Model of engine H16V190ZLT-2
Rated power/speed 1320KW/1200rpm
Overall dimension L× B× H 3830× 2060× 2315(mm)
Net weight 13000kg
Specific oil consumption ≤ 1.0g/KW. H
Number and layout of cylinders 16 cylinder, 60° V style
Type Four stroke, water cooled, turbocharged and aftercooled, spark plug ignition
Bore 190mm
Stroke 215mm
Total displacement 97.53L
Compression ratio 10: 1
Direction of rotation (facing to end) Counter-Clockwise
Lubricating method Pressure and splash lubrication
Jinan Guohua Green Power Equipment Co., Ltd. was established in 2010 and is a professional manufacturer engaged in the research, development, production, sale and service of gas generators and diesel generators with different power ranges. We are located in the beautiful city of spring - Jinan, Shandong Province, China, and have convenient transportation access.
Taking combustible gas as the fuel for engine can solve the electricity and power problems in the area with rich combustible gas, and also reduce the pollution of directly venting combustible gas into atmosphere. To meet the market requirement, we develop several series of gas engines and generating sets based on self experience, professional qualification as well as absorbing world advanced technology and sophisticated experience. The gas engines include series 190 with 4 cylinders, 6 cylinders, 8 cylinders and 12 cylinders, and series 135 with 4 cylinders, 6 cylinders and 12 cylinders. The engines can be divided into outer mixing, mechanical inner mixing, electronic inner mixing, electronic lean-burnt, etc. Engine power range is from 8kw to 1500kw. The fuel gas includes natural gas, coke oven gas, biogas, coal mine gas, refinery gas and so on, which can meet the utilizing requirements of different areas and different gas compositions. Now our products are widely used as generating sets, compressor sets and other power take-off sets in the areas with rich fuel gas, for example oil fields.
Dedicated to strict quality control and thoughtful customer services, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment, including ABB robot assembly lines.
Our main products are natural gas generators, biogas generators, gas generators and diesel generators, with such brands as JiChai, Volvo and Cummins. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Western Europe, South America, Southeast Asia, Africa, etc. We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Jinan Guohua Green Power Equipment Co., Ltd a subsidiary of JDEC(Jinan Diesel Engine Co., Ltd. ). Jinan Diesel Engine Co., Ltd(JDEC) is the only internal-combustion engine manufacturing enterprise belonging to China National Petroleum Corporation(CNPC). It is also the main manufacture of off-highway medium&large power engine in China. At present, it covers area 600, 000square meter and has more than 2000 employees. The total asset is more than 800 million. In 1995, JDEC got the CCS(China Classification Society) ISO 9001 Quality System Approval. In 1996, it was listed in Shenzhen Stock Exchange as Shiyoujichai.
