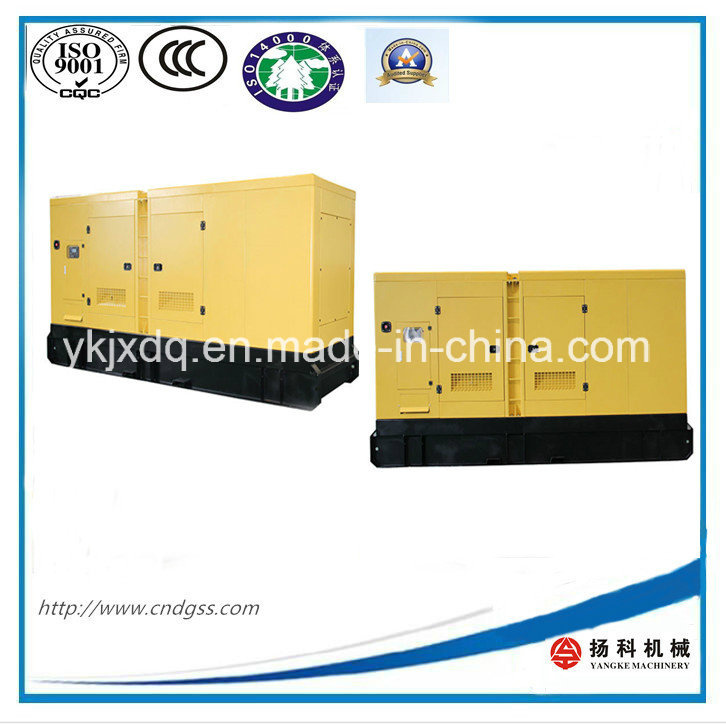

400kw/500kVA Power Generator by Perkins Diesel Engine

1)Perkins engine+Brushless alternator
2)68db@7m, small size
3)Low fuel consumption

nerator set	Model No.	QSP-400
	Standby power	550kva/440kw
	Rated power	500kva/400kw
	Output voltage	230/400
	Rated speed (r/min.)	1500
	Noise level(7m)	75dB
	Power factor	COSΦ=0.8(lagging)
	Phase/wires	3 phase 4 wires
	Start mode	Electric
	Fuel consumption	108L/h (100%Load)
	Rated currency(amps)	722
	Protection	Low oil-pressure, High water temperature, Over-speed, Over-current.
Engine	Brand	Perkins
	Model	2506A-E15TAG2
	Original:	UK Perkins
	Cylinders	6
	Fuel	0# light diesel
	Inter-Cooling	water inter-cooling
	Engine Power	503KW(459kw)
	Aspiration	Turbocharged/Aftercooled
	Governor/Class	ECM
	Bore and stroke	137×171 mm
	Start mode	DC24V electric start
	Cylinders Layout	Vertical in-Line
	Displacement	15.2L
Alternator	Brand	Leroy Somer
	Model	LL6114F
	Protection	IP23
	Frequency fluctuation	≤±0.5 %
	Voltage distortion	<4%
	Power	500KVA(400KW)
	Original	China
	Rated voltage	400/230 V
	Frequency regulation	≤±0.5 %(stable)
	Voltage control	AVR



Technical parameters of Control Panel:
Brand	Deep Sea	Model	6020
Function:
Start or Stop Generator set manually / automatically Open controller output can be defined as Pre-heat/Idle output High Coolant temperature protection Low Oil pressure protection Over load protection Generator over/under frequency protection Generator over/under/unbalance voltage Protection Over speed protection
Note:Indicate this function depend on the set points of the controller in field.



Optional accessories
Engine	Heater Battery Charger
Alternator	Permanent Magnet Generator(PMG)
Control system	Remote Control Panel Auto Transfer Switch (ATS) Paralleling System
Fuel system	Daily Fuel Tank Water Separator Fuel Level Sensor
Others	Rainproof Type Soundproof Type Trailer Type Extra spare Parts



Packaging & Delivery

Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-25working days after the deposit



Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.


We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.


 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.

FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
