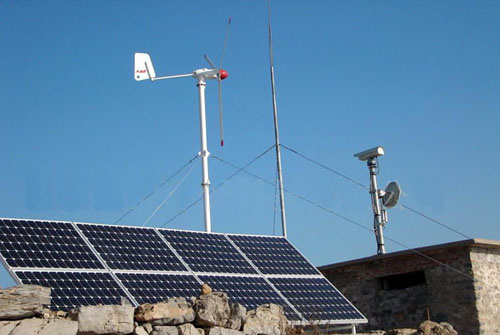

Wind solar hybrid power system, enough for home use such as TV, 3rooms and so on
| Model | FZY-WS-5000 |
| Power | 5000W |
| Wind turbine power | 3kw |
| Solar pannel power | 2Kw |
| System DC voltage | 120v |
| Battery Capability | 4000AH |
| Working temperature | from -40 °C to +60 °C |
| Charge control | AIC (automatic intelligent control) |
| WIND TURBINE PARAMETER | Wind turbine type | PMG (Permanent Magnet Generator) |
| Rotor diameter | 4.5m |
| Blades quantity | 3 pcs |
| Blades material | FRP (Fiber reinforce plastic) |
| Rated speed | 260r/min |
| Start wind speed | 3m/s |
| Rated wind speed | 10m/s |
| Working wind speed | 3-25m/s |
| Security wind speed | 40m/s |
| Speed regulation | yaw& magnetic resistance |
| Tower type | pull wire tubular tower |
| Tower height | 9m |
| Weight(without tower) | 130kgs |
| SOLAR PANEL PARAMETER | Solar model | 100w/12v 20pcs |
|
| Wp max (W) | 100 |
|
| Vmp(V) | 17.4 |
|
| Imp(A) | 5.74 |
|
| Voc(V) | 21.6 |
|
| Isc(A) | 6.37 |
|
| Size(mm) | 1161*670*35 |
|
| Weight(KGS) | 15 |
|
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
