This 360W Solar Home system to support household Appliance includes Solar cell modules, special solar battery, solar controller, solar power generator systems etc. Pollution-free, energy-saving, protecting environment, free maintenance and less restriction, with low Failure Rate, easily assembling and carring, convenient using, Solar Appliance Power Supply system's llifespan can reach above 20 years, a variety of charging ways complementary, solar \AC and DC all can charge for the system, one time investment, long-term benefits.
The Solar Generator can be applied to the villa, housing, outdoors\tourist resorts, prairie areas, remote mountain village, mountain island, household, farms, villages, farm, hills, island, highway and any regions to generate electricity.
Characteristics: The Solar PV System has high conversion of silicon solar panel, high euphotic rate and mechanical strength, good resistance to climate, preventing wind, hail. Which can effectively resist corrosion of moisture and salt fog, and can produce high efficient power and energy.

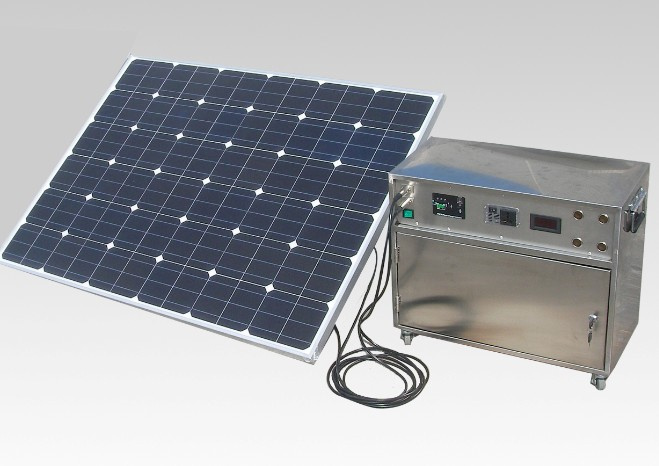

360W solar power system for Home Use
1) Solar Panel: 2*180W, working voltage: 18V
2) Battery: 12V/250Ah
3) DC Lighting Power: 7W*2
4) Inverter: Input DC12V; Output 220V/500W
5)Output Control
DC: Output will stop when the voltage of battery is less than10.5V(Red indicator light turn on). When it reaches 12.6V, it works again (red indicator light turn off)
AC: Output will stop when the voltage of inverter and battery is less than10.5V(Switch indicator light turn off). When it reaches 12.6V, it works again (Switch indicator turn on)
6) Working time: (DC)support 2*9W/12V lamps to work160 hours
(AC) support 10W-500W appliance to work about 40~10hours
7) Status indication:
Green LED light: Power instructions.
Yellow LED light: Charging instructions.
Red LED light: Output stops.
The above information is only for reference. Our R&D team can design the system according to the local natural resources and customers specific requirements.
|
main parts |
specification |
parameters |
quantity |
|
solar panel |
polycrystalline |
180W |
2pcs |
|
solar battery |
Sealed lead-acid |
250AH |
1pc |
|
solar control system |
Controller |
10A |
2pcs |
|
inverter |
500W |
1pc |
|
control box |
|
1pc |
|
solar brackets,cables |
1set |
|
Output |
AC 220V |
|
1pc |
|
DC 12V |
|
4pcs |
|
The system can support: |
|
Design load appliances |
Model |
Load Power |
Quantity |
Working Hours/Day |
Power Consumption/Day |
Continued Working Days |
|
Lighitng |
Fluorescent lamp |
40W |
4 |
6 |
960WH |
2.4Days |
|
Color TV |
42 inch LCD |
120W |
1 |
6 |
720WH |
3Days |
|
Desktop Computer |
19 Inch LCD |
350W |
1 |
4 |
1400WH |
1.6Days |
|
Printer |
Laser Printing |
300W |
1 |
0.5 |
150WH |
15Days |
|
Fax |
Inkjet |
150W |
1 |
0.5 |
75WH |
30Days |
|
Satellite TV Receiver |
|
25W |
1 |
6 |
150WH |
15Days |
|
Fan |
Haier |
50W |
2 |
8 |
600WH |
3.7Days |
|
Refrigerator (option) |
150L |
100W |
1 |
24 |
800WH |
2.8Days |
|
Washing Machine |
15KG |
300W |
1 |
1 |
300WH |
7.5Days |
|
Microwave Oven (option) |
Haier |
1000W |
1 |
0.5 |
500WH |
4.5Days |
|
Mobilephone |
iPhone 3GS |
5W |
4 |
8 |
160WH |
14Days |
|
Intercom |
MOTO |
10W |
2 |
6 |
120WH |
19Days |
|
Satellite phone |
MOTO |
12W |
1 |
4 |
48WH |
46.5Days |
