Professional generator/OEM factory in Guangzhou
Stock available
SGS SONCAP
10kVA, 60kVA, 100kVA. 150kVA, 200kVA, 250kVA, 300kVA. 600kVA are available
Packaging & Delivery
Packaging Details: Standard Export Packing (Ironframe or pollywood)
Cummins Generator
CUMMINS OEM Factory in City GUANGZHOU
CUMMINS Generator (Cummins diesel generator) power range 20-1200kVA
JIUAN Generator production range as follows:
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Perkins, Perkins Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel

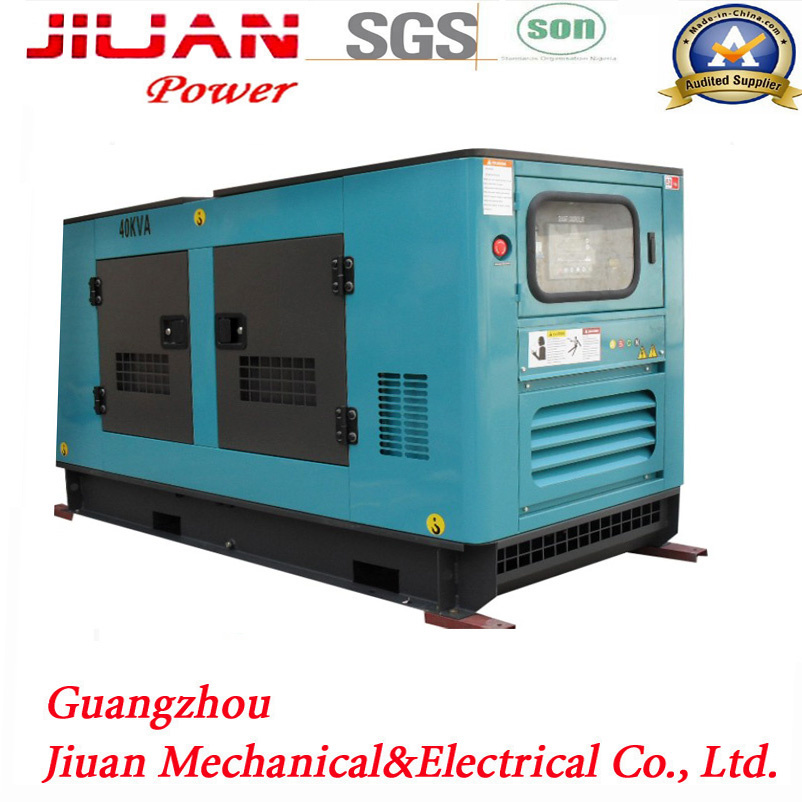

China Brand Generator 40kVA
Generator
1. Open type or silent type (soundproof type), Super Silent
2. Generator powered by Engine: Cummins, engine, Lovol, Deutz, WeiChai, Yangdong, ISUZU
3. Alternator: Stamford, Marathon, Leroy Somer etc
Generator Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400V, 220/380V, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
Option: ATS, AMF, Trailer, Container
China Brand Generator
Model
|
CDC40kva
|
Generator Set Power
|
40KVA |
Generator Powered by cummins Engine
|
Diesel Engine Model
|
4BT3.9-G2 |
Engine Characters
|
Water-cooled, in line, 4-cYDle, direct injection, 1500rpm
|
Bore x Stroke (mm)
|
102*120
|
Rated Output
|
11kw/13.75kva
|
Fuel Consumption (g/kw.hr)
|
262
|
Lube Consumption (g/kw.hr)
|
2.72
|
Compression Ratio
|
18
|
Starting
|
Electric (12V)
|
ALTERNATOR MODEL
|
Stamford copy PI144J
|
Rated Power
| 40KVA |
Voltage (V)
|
220/380 240
|
Current (A)
|
1 4
|
FreYuency (Hz)
|
50
|
Power Factor (cos )
|
0.8
|
Brush/Brushless
|
Brush less
|
Dimensions (LxWxH) mm
|
S: 2300*1000*1400 2600*1100*1650(super silent) |
Gross Weight (KGS)
|
600
|
20FT
|
12 PCS
|
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
