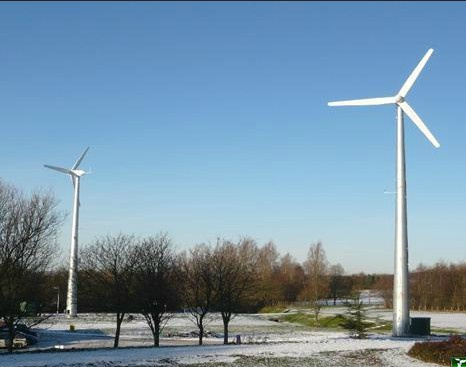

30kw Horizontal Axis Wind Generator System
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Paypal,Western Union |
Main technical data as follows:1. Machine Type: horizontal-axis wind turbine2. Blade form: propeller3. Blade number: 3 pcs4. Blade material: glass fibre reinforced plastic5. Type of generator: permanent-magnet 3 phase AC6. Type of tower: guy wire or free standingPower: 30KWBlade diameter (m): 12.5Rated Rotated speed(r/min): 120Rated speed (m/s): 12Rated power: 30KWMax power: 35KWOutput voltage (v): 380Start up wind speed (m/s): 3Work speed (m/s): 3-30Security wind speed(m/s):50High of tower (m): 18Top quality except tower: 950kgTower Steel tube model (mm): φ400Speed regulation: leaning tail + electric brakeCapacity and quantity of battery: 12V200AH 84 pcsCan supply power for: Small villages, Air conditioners, Refrigerators, Water pumps, Cookers, Color television sets, Washing machines, Lighting, Electric fans and ChargeRated Power | 30kw |
Blades Number | 3 pcs |
Rotor Diameter | 12.5m |
Rated Rotated Speed | 120r/m |
Rated Wind Speed | 12m/s |
Output Voltage | 380v |
Start Up Wind Speed | 3m/s |
Operating Wind Speed | 3-30m/s |
Security Wind Speed | 50m/s |
Output Controller System | controller and inverter |
Battery | 12V200AH 84pcs |
Prod Model: |
HAWT |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Axis Type: |
Horizontal |
Number Of Blade: |
Three Blade |
Rotating Shaft: |
Horizontal |
Stress Way Of Blade: |
Resistance |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
