We are the professional generator manufacturer with OEM factory in Guangzhou
Many style generators are stock available
10kVA 25kVA 30kVA 60 kVA 100kVA 150kVA 200kVA 250kVA 300kVA 1000kVA available
Specifications
Basic Info.
Model No.: CDZ25kVA
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Output Type: AC Three Phase
Diesel Generator: With Isuzu Engine
Engine: Isuzu
Alternator: Stamford; Marathon;
Control System: Automatic LED Screen Auto Start, Auto Transfer
Export Markets: Global
Additional Info.
Trademark: JIUAN
Packing: By Iron Frame
Standard: ISUZU 25kVA
Origin: China
HS Code: 85021100
Production Capacity: 100 Sets/Year
Product Description
Deutz OEM Factory

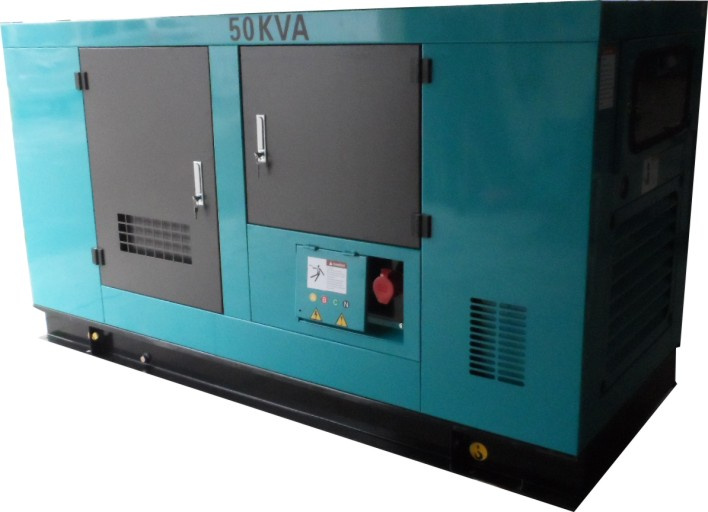

Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65dB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
|
Diesel Generator Set 30KVA |
Generator
Specifications |
Generator Model |
CDZ25KW/30KVA |
|
Generator Prime Power |
25KW/30KVA |
|
Generator Standby Power |
|
|
Generator Engine Model |
4JB1T |
|
Generator Alternator |
Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
|
Canopy for Choice |
Super silent;Silent;Open frame;Trailer |
|
Controller |
Smartgen or Deepsea |
|
Dimensions (L*W*H) |
1700*960*1060=1.72992CBM |
|
20FT/40HQFT Container |
12PCS/14PCS |
|
Generator Warranty |
1800 hours or 1 year subject to the ealier one. |
|
Generator MOQ |
1PCS |
|
Certificate |
SGS;Cummins Authorized Factory;TUV;Soncap |
|
Payment |
T/T or Cash |
Please give detail needs in your inquiry, so that we can make power solutions for you.
|
|
Generator Set Model |
CDZ-25kw/30kva |
|
Generator Set Power |
25kw/30kva |
|
Generator Powered by ISUZU Engine |
|
Diesel Engine Model |
4JB1T |
|
Engine Characters |
Water-cooled, in line, 4-cycle, direct injection, 1500rpm |
|
Bore x Stroke (mm) |
93x102 |
|
Rated Output |
32kw/40kva |
|
Fuel Consumption (g/kw.hr) |
262 |
|
Lube Consumption (g/kw.hr) |
2.72 |
|
Compression Ratio |
2.771L |
|
Starting |
Electric (12V) |
|
ALTERNATOR MODEL |
Stamford copy 184G(three phase) |
|
Rated Power |
25kw/31kva |
|
Voltage (V) |
220/380,220, 240 |
|
Current (A) |
43 |
|
Frequency (Hz) |
50 |
|
Power Factor |
0.8 |
|
Brush/Brushless |
Brushless |
|
Dimensions (LxWxH) mm |
S: 1700x960x1060 |
|
Gross Weight (KGS) |
600 |
|
20FT |
12 PCS |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
