We are the professional generator manufacturer with OEM factory in Guangzhou
Many style generators from stock 10kVA, 12kVA, 15kVA, 20kVA, 25kVA, 30kVA, 40kVA available
Specifications
China Brand Generator Good
1.65dBA at 7 meter, automatic
2. Auto transfer with city power
3. Fuel save, strong power, run stable

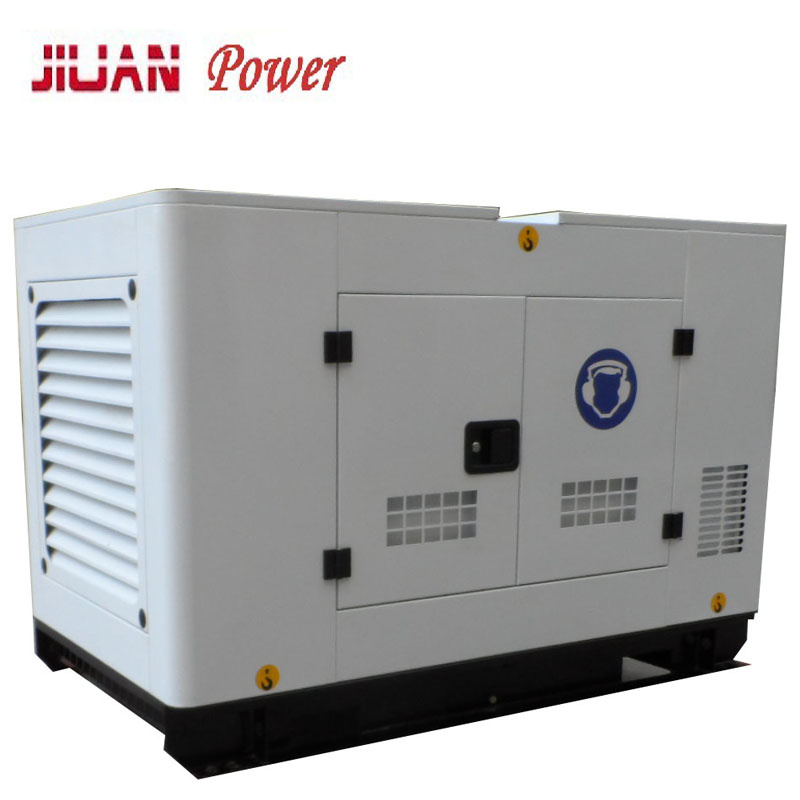

China Brand Generator 30kVA 24KW
Generator
1. Open type or silent type (soundproof type), Super Silent
2. Generator powered by Engine: Cummins, engine, Lovol, Deutz, WeiChai, Yangdong, ISUZU
3. Alternator: Stamford, Marathon, Leroy Somer etc
Generator Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400V, 220/380V, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
Option: ATS, AMF, Trailer, Container
Our Diesel Generator Set Production Range is as follows:
Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 2000kVA
2. Deutz (Germany) 20kVA - 150kVA
3. (UK) 8kVA - 2000kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Lovol (China) 20kVA - 150kVA
6. Yangdong (China) 8kVA - 50kVA
7. Weichai (China) 8kVA - 150kVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10kVA - 50kVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
Alternator for Choice (brushless with AVR)
1. Stamford Newage
2. Leroy Somer
3. Marathon
4. Leateck
After-sales Service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
Contact Sales Manager
24 hours after-sales contact number: 0086 15817087202
Terms of Payment:
1)T/T
2)Western Union
3)Cash
8.
Good Reasons Why you Source JIUAN Generator
1)Professional Generator OEM factory in Guangzhou
2) 14 years experience in generator and exporting
3) 5Th year gold supplier in Alibaba
3) Products lines verified by professional inspectors
4) High quality products at affordable prices
5) Place orders safety
6) All engines are brand new and original - Credible
Diesel Generator Set 30KVA |
Generator
Specifications |
Generator Model |
CDY30KVA/24KW |
Generator Prime Power |
30KVA/24KW |
Generator Engine Model |
Y4100G |
Generator Alternator |
Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
Canopy for Choice |
Super silent;Silent;Open frame;Trailer |
Controller |
Smartgen or Deepsea |
Dimensions (L*W*H) |
1800*960*1100mm=1.9008CBM |
20FT Container |
12PCS |
Generator Warranty |
1800 hours or 1 year subject to the ealier one. |
Generator MOQ |
1PCS |
Certificate |
SGS;Cummins Authorized Factory;TUV;Soncap |
Payment |
T/T or Cash |
Please give detail needs in your inquiry, so that we can make power solutions for you. |
Generator Set Model |
CDY-30kva |
Generator Set Power |
24kw/30kva |
Generator Powered by YANGDONG Engine |
Diesel Engine Model |
Y4100G |
Engine Characters |
Water-cooled, in line, 4-cycle, direct injection, 1500rpm |
Bore x Stroke (mm) |
90x100 |
Rated Output |
30kw/38kva |
Fuel Consumption (g/kw.hr) |
262 |
Lube Consumption (g/kw.hr) |
2.72 |
Compression Ratio |
18 |
Starting |
Electric (12V) |
ALTERNATOR MODEL |
LEADTECH 184G |
Rated Power |
25kw/31kva brushless with AVR |
Voltage (V) |
220/380V 230/400V 240/415V 127/220V |
Current (A) |
28 |
Frequency (Hz) |
50 |
Power Factor |
0.8 |
Brush/Brushless |
Brushless |
Dimensions (LxWxH) mm |
S: 1800x960x1100 |
Gross Weight (KGS) |
600 |
20FT |
12 PCS |
Controller |
Smartgen 6110 or Deepsea 7320 |
Standard |
Muffler |
|
Battery 80A*1 |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
