Introduction

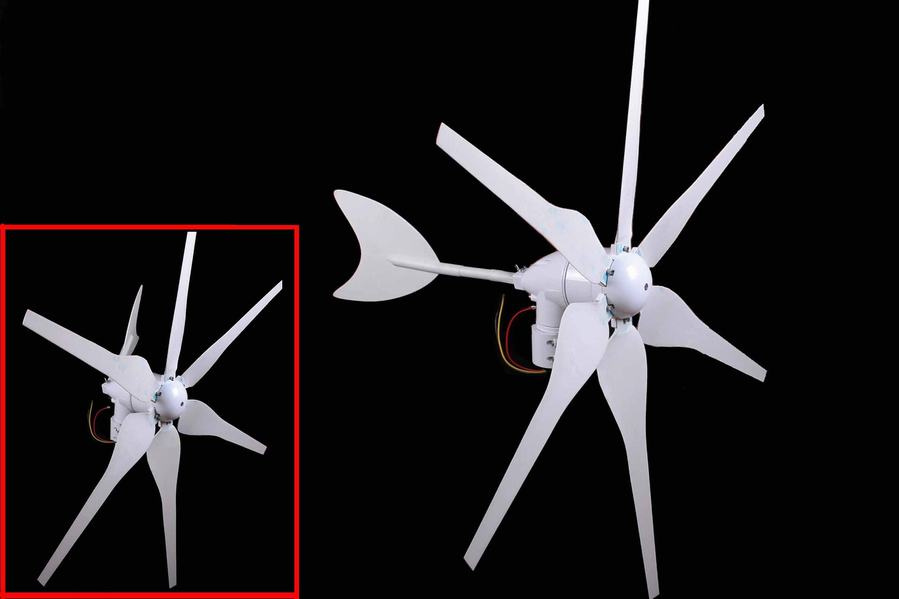

The P-300W Hyacinth is popular wind turbine in home yard, boats, advertising signs, telecommunications tower, etc. Thousands have been sold and are in use worldwide. People have the particular inclination for it? S clean, aerodynamic lines and its quiet and continuous operation. Without any doubt P-300W Hyacinth accumulates more energy than any other comparable wind generator available.
Advantages of 6-blade wind turbines over other wind turbines:
1) 6-blade wind turbines will greatly improve annual energy production in low wind conditions. If you compare annual energy output to conventional other wind turbine, there is an increase of annual energy output.
2) 6-blade wind turbines will dramatically improve the reliability and safety of wind turbine. The blade rotation speed of a 6-blade turbine is fast than the rotational speed of other wind turbine. 6-blade wind turbines will greatly reduce chance of overspeed control malfunction. This will ensure operational reliability from a long term perspective.
3) The lower blade rotation speed of 6-blade wind turbine will lower wind turbine noise and make 6-blade wind turbines more community friendly than other wind turbines.
Technical Parameters
Model P-300W
Name Hyacinth
Rated power 300W
Rated DC voltage 12V/24V
Rated current 25A/12.5A
Rated speed 900r/m
Max power 350W
Number of blade 6 PCS
Starting wind speed
Cut-in wind speed 4m/s
Cut-out wind speed 15m/s
Security wind speed 40m/s
Rated wind speed 12.5m/s
Engine (generator) Three-phase permanent magnel generator
Rotor diameter 1140mm
Blade material Carbon fiber reinforced plastics
Output line anti-winding device Overall three-phase commutator
Over-speed wind protection Tip stall protection + turned protection + Electromagnetic brake
Life span 15 years
Equipment surface protection Aluminum oxide + plastic coating
Working temperature -45° C-70° C
N. W. 5.125kg
Packing dimension 650*400*320mm
G. W. 6.5kg
Hyacinth wind turbines can meet the above requirements and do much more:
Every turbine is finely balanced
-Smooth rotation is ensured
-Quiet in operation
Life span can reach 15 years
-Item delivery sealing, karaburan and rain can not intrude into the interior of wind turbine. The wind turbine's interior and exterior both adopt the heat removal system, make it work 15-20 years
Unique and purpose designed generator
-This keeps the turbine spinning when other wind generators stall
-Overall this delivers more Ampere hours of power per day especially in low to average wind speeds
Low wind speed start up of just
-Adopt alien magnet and unique winding structure, low start wind speed, needn't any auxiliary starting device
Efficient aerofoil profile blades
-Unique in the industry, our user friendly feature ensures you automatically fit the aerofoil blades in
The correct orientation and design pitch for optimum performance
Durable construction and modern materials
-Using modern, durable materials giving our customers products with many years of trouble
Free service even under the harsh conditions of a marine environment
Large power, low volume and high efficiency
-Blades use special composite material, reasonable Aerodynamic Configurations, make overall unit low noise work
-Use rare earth permanent magnet(REPM), reduce overall unit's volume and weight.
Built-in overspeed protection
-Fully automatic with blade aerodynamic braking perfectly protect the overall unit when meet over-speed wind
-It's special turning tail design not only beautiful but also can resist strong wind
-Tip stall protection
Shenzhen Wind Power Co., Ltd is a company specialized on medium & small wind turbine generator group and relevant parts development, manufacturing and selling.
We pay high attention on science development. We own professional persons and research equipments on aerodynamics analyse, mechanical design, generator design&manufacturing, also electrical regulate. Based on wind turbine whole set basic theory, every model go from science aerodynamics calculate, intensity analyse, electromagnetic calculate, efficiency study, jarring analyse and matching analyse, all have detailed design, test and produce plan. The wind turbine passed wind tunnel test. Whole system function and various working conditions all have detailed test reports.
Professionally organized and managed, we spare no effort in ensuring the supply of high quality various wind turbine and guarantee 100% service satisfaction for national & overseas consumers. Accordingly, all of our products conform to CE and ISO9001 quality standards.
We engaged in wind turbine generator development and application, we launched 300W, 500W, 1kw small wind turbine in 2000. When time goes by, our technology and products gradually matured, we launched 2kw, 3kw, 5kw, 10kw, 20kw wind generator.
Therefore, if you or your company are interested in any of our products, please don't hesitate to contact us for more details. We look forward to supplying you with our high quality products in the near future.
