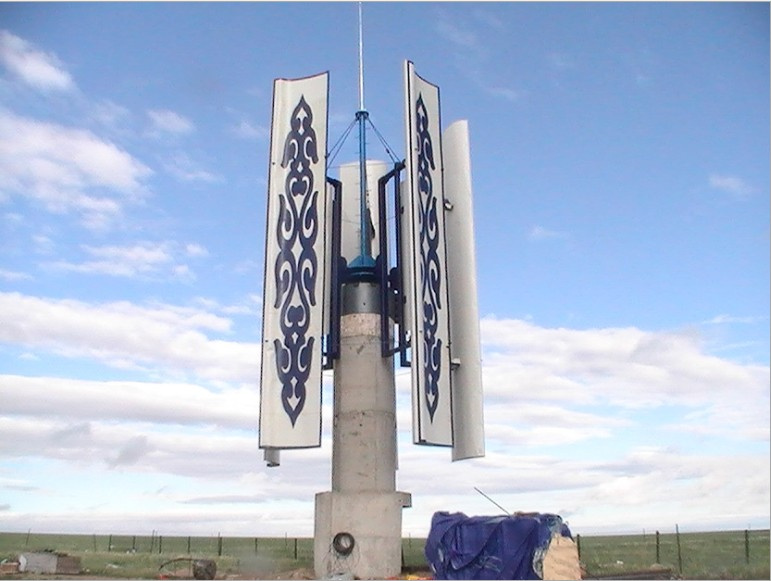

300KW Vertical Axis Wind turbine Generator Technical Data
1 Rate Power: 300KW
2 Max power : 305KW
3 otate Diameter: 16M
4 Blades 3 tier 3MX12M : 15PCS
5 Blades Size: 3MX30M
6 Max Height: 51M
7 Total weight: 52MT
8 start-up wind speed: 3M/S
9 Rated Wind speed: 12M/S
10 Live Wind speed: 30M/S
11 Turbine generator rotate speed : 100R/MIN
12 Wind turbine rotate speed: 25R/MIN
13 Speed Ratio: 1:5
14 Voltage of generator: 400V
15 Output voltage: 400V/250V
16 Controller and Inverter 300KW
17 Four column structure frame weight 35MT
18 Blade support Steel Structure Wight 16MT
| Rated Power | 300kw |
| Blades Number | 15 pcs |
| Rotor Diameter | 16m |
| Rated Rotated Speed | 100r/m |
| Rated Wind Speed | 12m/s |
| Output Voltage | 400V |
| Start Up Wind Speed | 3m/s |
| Operating Wind Speed | 12m/s |
| Security Wind Speed | 30m/s |
| Output Controller System | controller and inverter |
|
|
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
