1. PV Array: A number of PV panels connected in series and/or in parallel giving a DC output out of the incident irradiance. Orientation and tilt of these panels are important design parameters, as well as shading from surrounding obstructions.
2. Wind turbine: This is installed on top of a tall tower, collects kinetic energy from the wind and converts it to electricity that is compatible with a home's electrical system.
3. Hybrid controller: Control battery bank charge and discharge reasonable and safety.
4. Battery bank: Can be a single battery or multiple batteries connected together to create essentially one large battery of the required voltage and amp-hour capacity. In some ways the battery configuration and capacity are the most important electrical power decision to make, and a wise choice can help guarantee a steady supply of electrical power as well as a system that is simple to operate and maintain.
5. Inverter: A power converter that ¡ ° Inverts¡ ± The DC power from the panels into AC power.
6. Loads: Stands for the network connected appliances in the building that are fed from the inverter (AC loads), or from the battery bank (DC loads).

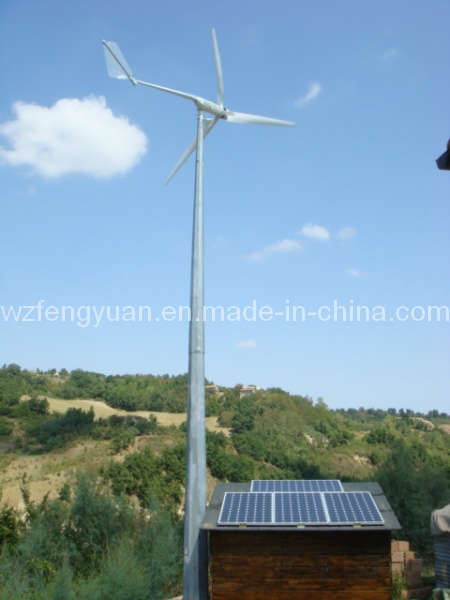

This system contains FY-2kW wind turbine body, 720Wp solar panels, wind and solar hybrid controller, inverter, battery, tower, solar panel parts and so on.
Field of application This system is usually used at the small signal tower and residents in clear monsoon climate.
2. Main configuration
Wind turbine technical parameter
|
Size |
Rated power |
Rated output voltage |
Rated rotated speed |
Rated wind speed |
|
FY-2KW |
4KW |
DC48V |
450RPM |
9m/s |
Solar panels
|
Size |
Specification |
Monolithic power |
Quantity |
|
FYP-150 |
1580× 808x40 |
180W |
4pieces |
Controller technical parameter
|
Size |
Rated wind turbine power |
Rated solar panel power |
Battery float voltage |
Output voltage |
|
WW30-48 |
3KW |
0.9KW |
48VDC |
PWM |
Note: If the local wind resource is fairly good, it can increase the battery capacity according to load condition.
Inverter technical parameter
|
Battery size |
Quantity |
Storage Volume |
|
WI50-240 |
4KW |
110/220/380VAC |
Tower
Tilt-up tower can be made according to the customer’ s request. And the main kind is 9 meter and 12 meter tilt-up tower |
