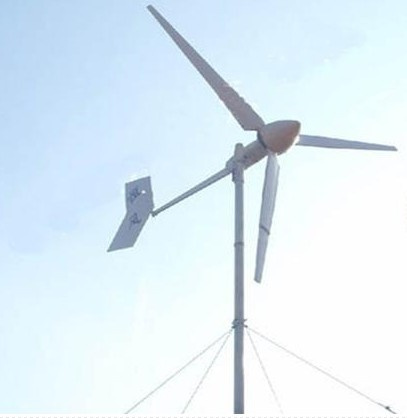

A wind turbine, which is installed on top of a tall tower, collects kinetic energy from the wind and converts it to electricity that is compatible with a home's electrical system.
In a normal residential application, a home is served simultaneously by the wind turbine and a local utility. If the wind speeds are below cut-in speed (7-10 mph) there will be no output from the turbine and all of the needed power is purchased from the utility. As wind speeds increase, turbine output increases and the amount of power purchased from the utility is proportionately decreased.
We are in the market for horizontal wind tubine from 0.1kw to 200kw
| Blade diameter | 4m |
| Rated Rotated speed | 300 |
| Rated wind speed | 8m/s |
| Rated power | 2kw |
| Max voltage | 3kw |
| Output voltage | 96v |
| Start up wind speed | 3(m/s) |
| Operating wind speed | 3-25(m/s) |
| Security wind speed) | 50(m/s) |
| Height of tower | 6m |
| Weight of top section | 100kg |
| Output controller system | charger and inverter |
| tower pole type | 89steel hub |
| Capacity and quantity of battery(reference) | 12V100AH 8pcs |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
